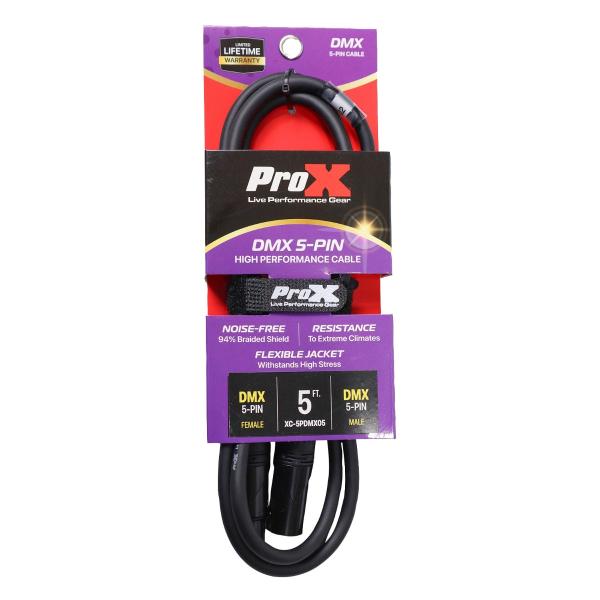

ProX XC-5PDMX05 5 Ft. DMX XLR5-M to XLR5-F High Performance Data Cable
Most orders placed by 3pm ET ship same day (business days)
Only at IDJ NOW
Fast Shipping
Most products ship same-day
30-Day Price Protection
Find a lower price, you're covered.
8000+ Reviews
95%+5-star reviews>
30-Day Returns
Don't Like it? Return most items.
The ProX XC-5PDMX05 cable is ideal for DMX connection applications where a device with a male DMX XLR-5 output/input needs to be connected to a device with a female DMX XLR-5 output/input. 22AWG Oxygen-Free Copper (OFC) conductors for maximum signal transfer. ProX cables are built with uncompromised quality with excellent performance at each connection - Instrument cables, Speaker cables, RCA cables, DMX cables, Power cables and more. ProX cables are made for professionals, by professionals. Bending & twisting, are no match for these high-performance tour-grade DMX cables. They're designed to provide years of dependable service and outlast every other cable on the market. Complete Coil technology demands consistent weave tolerances to create precise and accurate data transmission. This is the most important part of the design and greatly affects performance.
NOTE: Twisted pair DMX data transmission cables are not suitable for audio use. Conversely, audio cables are not suitable for DMX data use. Their specifications and characteristics differ substantially. Always use the correct cable for reliable connections.
ProX XC-5PDMX05 5 Ft. High Performance Data Cable Features:
- Gold Plated Contacts.
- ProX Branded, All Metal XLR-5 Connectors.
- Excellent Durability and Superior Data Transfer.
- 20 AWG x 4 Oxygen-Free Copper (OFC) conductors.
- Extra Durable & Flexible Long Life Construction.
- ProX Limited Lifetime Warranty.
- Master Box is 10 Cables.
ProX XC-5PDMX05 Product Specifications:
Polyethylene insulation
Dual Twisted Pair Data Cable (4 Conductors)
Polyethylene inner jacket
Duofoil (100% coverage)
Cotton plus a tinned copper braid shield (85% coverage)
PVC jacket for durability
Nominal Characteristic Impedance: 110 Ohms
Nominal Capacitance Conductor to Conductor @ 1KHz: 12.8 pF/ft
Nominal Cap Cond. To Other Cond. & Shield @ 1KH z: 23 pF/ft
Nominal Velocity of Propagation: 66%
Nominal Delay: 1.6 Nanoseconds per foot
Nominal Conductor DC Resistance @ 20 degrees C: 24 Ohms/1000 ft
Nominal Outer Shield DC Resistance @ 20 degrees C: 3.4 Ohms/ 1000 ft
Nominal Attenuation (dB/100 ft): 0.6 (@ 1 MH z) dB/100 ft
Maximum Recommended Current: 2.1 Amps per conductor @ 25 degrees C
Operating Temperature Range: (-30 degrees C To + 75 degrees C)
Shipping Dimensions & Weight:
Box 1 of 1: 1.00"H x 3.00"W x 7.00"L
Shipping Weight: 0.60 lbs
Suggested Shipping Method:
Parcel
UPC:
741459148737
Master Box:
QTY 10 pcs
11.00"L x 7.00"D x 5.00"H
Shipping Weight: 6.00 lbs
Number of Master Boxes: 1
Master Box:
QTY 50 pcs
24.00"L x 12.00"D x 8.00"H
Shipping Weight: 29.00 lbs
Number of Master Boxes: 5
Each XC-5PDMX05 Retail Box Includes:
(1) ProX XC-5PDMX05 5 Ft. DMX XLR5-M to XLR5-F High Performance Data Cable
