Moog Matriarch Patchable 4-Note Paraphonic Analog Synthesizer with Case Package
Reg.
$2,200.99
Now
$1,899.40
You save
$301.59
Reg.
You save
Backordered
Expected June 30, 2026
Key Highlights
- Matriarch is a patchable 4-note paraphonic analog synthesizer.
- Built-in Sequencer, Arpeggiator, stereo Ladder Filters, and stereo Analog Delay.
- The Pinnacle of Moog's Semi-Modular Family of Analog Synthesizers.
- Create rich evolving chord patterns immediately with "no patching required."
Get Expert Help Before You Buy
Get fast answers on setup, compatibility, and system matching.
✔ No pressure. Just real help.
Your request was saved successfully.
|
Matriarch is an analog synthesizer with an emphasis on imagination. The pinnacle of Moog's semi-modular family of synthesizers, Matriarch's patchable architecture and vintage Moog circuits reward open exploration with endless sonic possibilities and unparalleled analog sound. Easily create rich harmonic shapes with up to 4 notes of paraphony that can be sequenced, saved, and shifted with Matriarch's intuitive 256 step sequencer, or stack the analog VCOs to play on a massive 4 oscillator mono synth.
With a deep assortment of synthesis modules based on Bob Moog's original circuit designs, Matriarch's 100% analog signal path spans a dynamic sonic vocabulary - from overdriven monophonic bass to gently evolving paraphonic plucks that cycle through waveshapes into a wash of infinite delay trails. Coupling the power of vintage stereo ladder filters, dual Envelope Generators, stereo Analog Delays, and stereo VCAs, Matriarch delivers a multidimensional sound that empowers the sonic exploration of space and time. Though Matriarch's semi-modular design requires absolutely no patching, 90 modular patch points are easily accessible throughout the panel via the included 3.5mm patch cables. This powerful electronic instrument is a highly-versatile addition to any stage or studio that can effortlessly transform from a performance keyboard to a fully modular analog synthesizer at a moment's notice. In addition to its standalone function, Matriarch is also an ideal processor of external sound sources and a powerful keyboard front-end for expanding a DFAM, Mother-32, Grandmother, or Eurorack modular system.
Moog Matriarch Patchable 4-Note Paraphonic Synthesizer Features:
- Matriarch is a patchable 4-note paraphonic analog synthesizer.
- Built-in Sequencer, Arpeggiator, stereo Ladder Filters, and stereo Analog Delay.
- The Pinnacle of Moog's Semi-Modular Family of Analog Synthesizers.
- Create rich evolving chord patterns immediately with "no patching required."
- Tap into an abundance of inspiring textures, new sounds, and an endless supply of happy accidents through Matriarch's 90 modular patch points.
- Based on the vintage circuitry of classic Moog synthesizer modules, Matriarch is a catalyst for creative ideas and a medium for multidimensional expression.
- Matriarch is available in two distinct styles: original multi-colored front panel artwork and all-black Dark Series edition.
- Sequence and perform in mono, duo, and 4-note paraphonic modes.
- Classic and ping-pong style repeats with lush infinite delay trails.
- Create, mangle and explore the endless expanse of sound with 90 modular patch points.
Moog Matriarch Product Specifications:
VOICE MODE:
Mono, duo, and 4-note paraphonic playability
ANALOG DELAY:
Stereo analog delay w/ up to 700ms of MIDI sync-able stereo or ping/pong style repeats
SEQUENCER:
256 step sequencer w/ up to 4 notes per step and 12 stored patterns. Can be decoupled from Matriarch to independently sequence external gear.
ARPEGGIATOR:
Arpeggiator with selectable modes (Order, Forward/Backward, Random).
SEMI-MODULAR DESIGN:
Semi-modular analog synthesizer - no patching required.
MODULAR CAPABILITIES:
90 modular patch points for endless exploration
KEYBOARD:
Expressive 49-note Fatar keyboard w/ patchable velocity and aftertouch.
ANALOG OSCILLATORS:
4 analog oscillators w/ selectable waveshape and hard sync per-oscillator.
LFO:
Full-range analog LFO with 6 selectable waveshapes.
LADDER FILTERS:
Dual analog filters with parallel (HP/LP), stereo (LP/LP), and series (HP/LP) modes available.
ENVELOPE GENERATORS:
Dual analog ADSR envelopes.
VOLTAGE CONTROLLED AMPLIFIERS:
Dual analog VCAs.
ATTENUATORS:
3x bipolar voltage controlled attenuators with ring mod capability.
MULTIPLES:
2x4 parallel wired unbuffered mults.
SECOND LFO:
Additional simple analog LFO useful for adding modulation to delay, filters and VCAs.
EXTERNAL PROCESSING:
1/4" external audio input for processing guitars, drum machines, and more through Matriarch's analog circuits.
OUTPUTS:
Stereo ¼" and 3.5mm Eurorack level audio outputs.
TYPE:
Semi-Modular Analog Synthesizer
SOUND ENGINE:
100% Analog
NUMBER OF KEYS:
49 Full-Size Keys
TYPE OF KEYS:
Velocity-sensing with Aftertouch (Velocity and Aftertouch are not hard-wired - available via MIDI, KBD VEL OUT and KB AT OUT jacks)
OTHER CONTROLLERS:
Pitch Bend, Mod Wheel, Variable Glide, Expression pedal in to CV out, and Sustain Pedal in
POLYPHONY:
Monophonic, 2-Note Paraphonic, and 4-Note Paraphonic
SOUND SOURCES:
4x Analog Oscillators with Selectable Waveforms (Oscillators 2, 3, and 4 support Hard Sync), White Noise Generator, External Input jack.
MIXER:
6 input (5 eurorack level and 1 instrument level) DC coupled discrete mixer with asymmetrical clipping behavior
FILTERS:
24dB/Octave Low Pass Filter with Resonance, 24dB/Octave switchable Low Pass/High Pass Filter with Resonance. Configurable in parallel (HP/LP), stereo (LP/LP), and series (HP/LP).
MOD SOURCES:
Analog Modulation Oscillator with selectable and patchable output (Sine, Saw, Ramp, Square, Stepped Triangle, Smoothed Random, Sample and Hold, Noise). Additional LFO (Tri, Square).
ENVELOPES:
2x Four-Stage ADSR with End of Envelope gate outputs
ATTENUATORS:
3x Bipolar Voltage Controlled Attenuators with Ring Mod capabilities
MULTS:
2x4 Parallel-wired Non-buffered Patch Points
VCAS:
2x discrete analog VCAs routed in stereo
EFFECTS:
Stereo Analog Delay with Ping/Pong, MIDI and CV clock sync, voltage controlled Mix, and independent L/R delay times, feedback, and I/O
ARPEGGIATOR / STEP SEQUENCER:
256 Steps with up to 4 notes per step; 12 Sequence locations
PATCH POINTS:
90 x 3.5mm front and rear panels, 49 Inputs, 33 Outputs, 2x4 Parallel-wired Mults
PEDAL INPUTS:
1/4" Sustain, 1/4" Expression
AUDIO INPUT:
1/4" TS jack (Rear Panel)
AUDIO OUTPUTS:
2x 1/4" TS jacks for line level output (Rear Panel), 1/4" Headphone jack with dedicated level knob (rear panel), 2x 3.5mm Eurorack level outputs, 2x 3.5mm Delay outputs
MIDI I/O:
5-pin DIN In, Out, Thru; plus MIDI over USB (Rear Panel)
DIMENSIONS:
32" (81.28cm) Wide x 14 1/4" (36.19cm) Deep x 5 1/2" (13.97cm) High
POWER:
Included Power Adapter 12V DC (positive tip), 2A, 100 to 240 Volts AC, 50/60Hz with screw-on barrel connector
WEIGHT:
24lbs. / 10.89kg

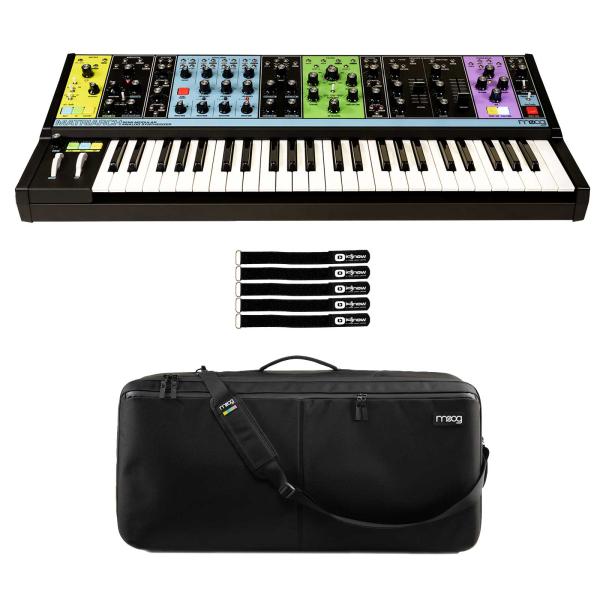

This Package Includes:
(1) Moog Matriarch Patchable 4-Note Paraphonic Analog Synthesizer
(1) Owner's Manual
(1) 12V DC Power Adapter
(1) Registration Card
(1) Moog Matriarch SR Series Case
(5) 8" Reusable Hook and Loop Cable Ties
