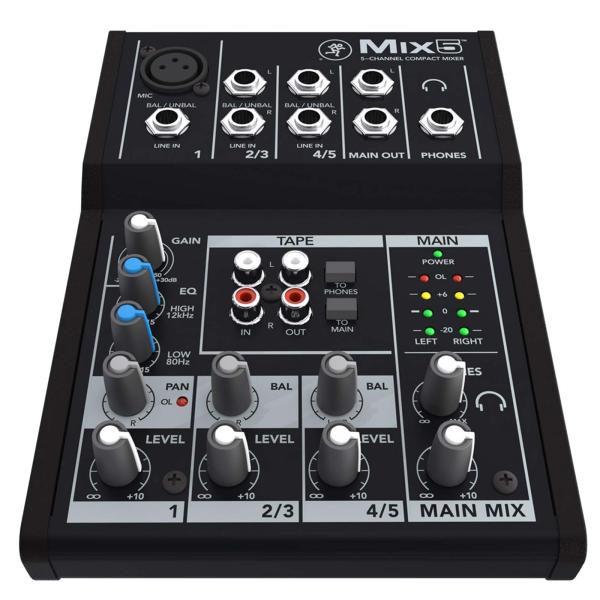

Mackie Mix5 5-Channel Compact Mixer
$79.99
Reg.
You save
In Stock
Key Highlights
- 5-channel compact mixer with proven high-headroom, low-noise performance.
- 1 mic/line input with studio-level audio quality.
- 2-band EQ with clean, precise tone shaping.
- Phantom power for studio condenser mics.>
Get Expert Help Before You Buy
Get fast answers on setup, compatibility, and system matching.
✔ No pressure. Just real help.
Your request was saved successfully.
|
Mackie Mix Compact Mixers deliver the quality you expect from the world leader in compact mixer design. The professional and affordable Mix Series mixers feature high quality components, a rugged metal chassis and features designed for a variety of applications. With Mackie preamps and proven high-headroom, low-noise design, Mix delivers great sound from any source. Besides, wouldn't you rather Mix on a Mackie?
Mackie Mix5 Features:
- 5-channel compact mixer with proven high-headroom, low-noise performance.
- 1 mic/line input with studio-level audio quality.
- 2-band EQ with clean, precise tone shaping.
- Phantom power for studio condenser mics.>
- 2 stereo 1/4" line inputs.
- Dedicated stereo RCA inputs/outputs for playback or recording.
- Main L/R outputs.
- Headphone output with separate volume control.
- Rugged, reliable design built to last.
- Extremely compact and portable.
Mackie Mix5 Specifications
Noise Characteristics(20 Hz - 20 kHz Bandwidth, 150 Ohm source impedance, EIN)
All outputs, master levels and channel levels off: -100 dBu
All outputs, master levels unity, all channel levels off: -90 dBu
All outputs, master levels unity, 1 channel level unity: -85 dBu
Distortion
(20 Hz - 30 kHz bandwidth)
Mic Input to Main Output: |<0.25% @+4 dBu output
Attentuation and Crosstalk
(20 Hz - 30 kHz bandwidth)
Inputs to Outputs @1 kHz: -85 dB
Main Mix Off @ 1 kHz: -75 dB
Frequency Response
Mic Input to any output (Gain at Unity): +0, -1 dB, 20 Hz to 30 kHz
Equivalent Input Noise (EIN)
(Mic in to Insert Send out, Max Gain.)
150 Ohm Termination: -125 dBu
Common Mode Rejection Ratio (CMRR)
(Mic in to Insert Send out, Max Gain.)
1 kHz: Better than -70 dB
Maximum Levels
Mic Inputs (XLR): +19 dBu
Aux Return in: +16 Dbu
All Other Inputs: +21 dBu
All Outputs: +21 dBu
Impedences
Mic in: 2 k-Ohm
All other inputs: 10 k-Ohm or greater
Tape out: 1 k-Ohm
Phones: 22 Ohm
All other outputs : 120 Ohm, unbalanced
: 240 Ohm, Balanced
EQ
High Shelving: +/- 15 DB @ 12 kHz
Mid Peaking: +/- 15 DB @ 2.5 kHz
Low Shelving: +/- 15 dB @ 80 Hz
Low Cut Filter: 18dB/octave, -3 dB @ 75Hz
Dimensions
Height: 1.7" / 43 mm
Width: 5.5" / 140 mm
Depth 7.7" / 196 mm
Weight
1.4 lb / 0.6 kg
The Mackie Mix5 Box Includes:
(1) Mackie Mix5 5-Channel Compact Mixer
(1) Power Cord
(1) Owner's Manual
