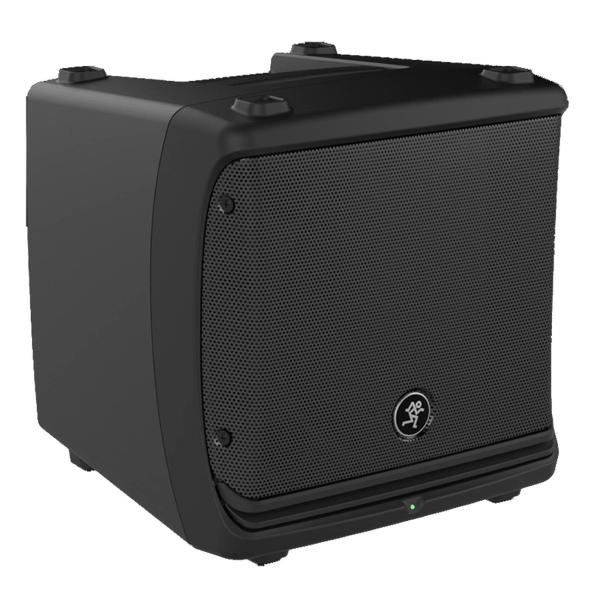

Mackie DLM8 2000 Watt 8" Full-Range Powered Loudspeaker
The Mackie DLM8 packs a lot of power - 2,000 watts, to be precise. And its smart design makes it the ideal speaker for lots of different uses: use a pair as main speakers on speaker poles, wall-mount it as a backfill speaker in your venue, or get a contractor to fly it with standard M10 rigging hardware. It's even got a kickstand, so you can angle it back for use as a stage monitor. The DLM8 has the power and flexibility to excel in almost any sound reinforcement situation.
Mackie DLM8 Features:
- 2000W power via ultra-efficient Class-D amplification.
- TruSource Technology.
- Mackie designed, vertically-aligned, common-magnet TruSource driver.
- 8" LF woofer / 1.75" HF compression driver.
- Incredibly compact, lightweight design.
- Powerful TruSource DSP delivers seamless clarity, consistent dispersion and unmatched fidelity.
- DL2 Integrated Digital Mixer.
- Powerful, one-touch digital mixer with bright OLED screen.
- Two highly-versatile input channels with FX.
- Independent channel level, 3-band EQ and effects control.
- 16 great-sounding channel effects include reverb, chorus and delay.
- XLR/TRS combo and dual RCA connectors.
- Handles mic, line, stereo and instrument signals.
- Unmatched system control for professional applications.
- Multi-band feedback destroyer.
- Six speaker modes deliver the perfect voicing for your application.
- Alignment delay up to 300ms for delay stack, balcony, etc..
- Three memory locations for instant venue setting recall.
- Smart Protect DSP dynamically protects amp/driver.
- Innovative ultra-compact design.
- 1/3 smaller than a traditional 2-way.
- Fit an entire DLM system in nearly any car.
- Stack them up for storage.
- Pole-mountable on tripod or atop DLM12S using SPM300 speaker pole.
- Flyable via standard M10 rigging hardware.
- Wall-mount them using SWM300 articulated arm for stealthy, powerful install system.
- Roadworthy PC-ABS cabinet with pro black finish and ergonomic top carry handle.
- Rugged, powder-coated 20 gauge steel grille.
- Integrated kickstand delivers perfect angle for personal monitor use.
- Ridiculously lightweight (22 lbs. / 10kg).
Mackie DLM8 Specifications
| Power Output | 1,000W RMS 2,000W peak |
| Low Frequency Driver | 8" (203 mm) woofer 2" (51 mm) voice coil diameter Paper diaphragm Ferrite magnet |
| High Frequency Driver | 1.75" (44 mm) compression driver 1" (25 mm) horn entry diameter Polyimide film diaphragm Ferrite magnet |
| Frequency Response | 65 Hz to 20 kHz (-10 dB) |
| Maximum Sound Pressure Level (SPL) | 125 dB @1 m, calculated |
| Crossover | 1.6 kHz |
| Dispersion | 90° conical |
| Equalization | Low shelving: ±15 dB @ 80 Hz Mid-peaking: ±15 dB @ 2.5 kHz High shelving: ±15 dB @ 12 kHz Increments: ±3 dB |
| Amplifier Power | Low Frequency Amplifier: 500W RMS, 1,000W peak Rated THD: < 1% Cooling: multi-speed fan Class D design High Frequency Amplifier: 500W RMS, 1,000W peak Rated THD: < 1% Cooling: multi-speed fan Class D design |
| Audio Inputs | 1 x XLR/TRS combo - Channel 1 (XLR is mic/line switchable) 1 x XLR/TRS combo - Channel 2 (TRS is a Hi-Z input) 2 x RCA phono - Channel 2 (1 x L/R) |
| Input Impedances | Channel 1: Mic: 3.3kΩ balanced Line: 20kΩ balanced, 10kΩ unbalanced 1/4" TRS: 16kΩ balanced, 8kΩ unbalanced Channel 2: XLR Line: 20kΩ balanced, 10kΩ unbalanced 1/4" TRS [Hi-Z instrument]: 1MΩ unbalanced RCA: 25kΩ unbalanced |
| Audio Output | 1 x XLR - Thru (switchable output, channel 1 or mix) |
| Mixer Section | DL2 Digital Mixer System Processing: EQ: 6 speaker modes Alignment delay: 0 to 300 ms FX: 16 presets Multi-band feedback destroyer: On / Off / Clear / Hold Memory: 3 locations for instant venue setting recall and factory reset |
| Power Requirements | 100 to 120VAC or 220 to 240VAC, 50/60 Hz, 250W |
| AC Plug Style | 3-pin IEC 250VAC |
| Operating Temperature Range | 32 to 104°F (0 to 40°C), extended ambient temperature |
| Construction | PC-ABS cabinet High durability black paint finish Top handle Powder-coated 20 gauge steel grille Three M10 x 17 mm fly points 50° monitor angle (using integrated kickstand) |
| Mounting Options | Pole mount, wall mount or fly via three integrated M10 x 17 mm mounting points |
| Dimensions (H x W x D) | 12.3 x 12.1 x 11.9" (313 x 307 x 302 mm) |
| Weight | 22 lb (10 kg) |
The Mackie DLM8 Box Includes:
(1) Mackie DLM8 2000 Watt 8” Full-Range Powered Loudspeaker
(1) Power Cord
(1) Owner's Manual
