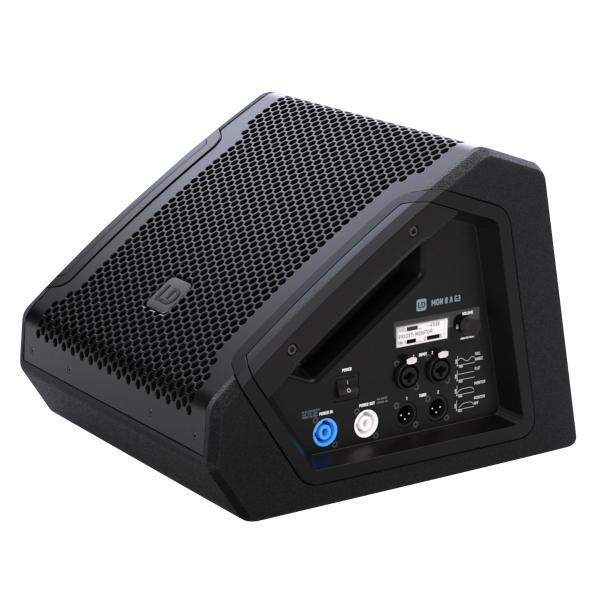

The MON 8 A G3 is part of an entirely newly developed family of powered stage monitors for high performance. The MON G3 Series incorporates the advanced technology and premium materials found in high-end monitors typically rented by professionals, making this quality available to everyone. These include, for example, advanced coaxial loudspeakers with integrated 50° x 90° CD horn, which ensure the acoustic ideal of a true point source and thus outstanding audio characteristics even at short listening distances. Besides this, the series offers a high-level of robustness, a comprehensive set of features and the elegant LD Systems design.
As the smallest member of the new stage monitor family, the MON 8 A G3 is particularly inconspicuous and flexible in use: as a stage monitor, in a DJ setup or on a speaker stand as a FOH speaker, as a satellite in 2.1 systems or as a delay line speaker. At the same time, the MON 8 A G3 offers a frequency response of up to 59 Hz, which is unusually low for its size, and thus full-range sound. Both the signal (XLR/jack combo) and the power connection (PowerCON compatible) can be looped through. This allows for elegant, tidy cabling in multi-monitor set-ups or for distributed sound reinforcement.
LD Systems MON 8 A G3 8" Coaxial Stage Monitor Features:
- Compact high-performance stage monitor with top-of-the-range technologies
- Class-D power amplifier with 300 W RMS/1200 W peak and 121 dB max. SPL
- Coaxial design for true point source with a 1.75" titanium-diaphragm HF driver.
- 8" woofer with 2.5" voice coil
- Optimised, practical radiation pattern due to 50° x 90° CD horn
- DynX DSP (Gen.2) for distortion-free sound even at maximum volume
- 3-band EQ, Notch filter, 4 application presets and delay function
- PowerCON compatible loop-through professional power connection
- 35 mm speaker stand flange for FOH applications
- Durable Polyurea coating and heavy-duty front grille
LD Systems MON 8 A G3 Product Specifications:
Product type | Stage monitor |
Type | Powered |
Woofer size | 8" |
Woofer type | Coaxial loudspeaker |
Woofer magnet | Ferrite |
Woofer brand | Custom-made |
Woofer voice coil | 2.5" |
Woofer voice coil (mm) | 65mm |
HF driver size | 1" |
HF driver magnet | Ferrite |
HF driver brand | Custom-made |
HF driver voice coil | 1.75" |
Horn | CD Horn |
Amplifier | Class D |
Dispersion (H x V) | 50° x 90° |
System output (RMS) | 300 W |
System output (Peak) | 1200W |
Frequency response [-3dB] | 68Hz - 18kHz |
Frequency response [-10dB] | 59Hz - 20kHz |
Crossover frequency | 2500Hz |
Max. SPL Avarage (Sine burst) | 116 dB (100 Hz - 12 kHz, fullspace @1m, 10% THD) |
Max. SPL Peak (Sine burst) | 121 dB (fullspace @1m, 10% THD) |
Protection circuits | Multiband limiter, over voltage, over-current, thermal overload |
Controls | On/off switch, Rotary/push encoder |
Indicators | LC display |
Line inputs | 2 |
Line input connectors | 6.3 mm jack / XLR - Combo |
Line thru | 2 |
Line thru connectors | XLR |
Operating voltage | SMPS, AC 100-240V/ 50-60Hz |
Cabinet material | 15 mm Birch Plywood / 15 mm MDF |
Cabinet construction | Bass Reflex |
Monitor angle | 33° |
Width | 340 mm |
Depth | 368 mm |
Height | 278 mm |
Weight | 13,2 kg |
Power consumption | 150 W |
Ambient temperature (in operation) | 0 - 40 °C |
Relative Humidity | < 80 %, not condensing |
Fuse | T4AL 250V |
Power In | PowerCON compatible |
Power Out | PowerCON compatible |
Features | Notch Filter, 3 Band EQ, Delay Line |
Each MON 8 A G3 Retail Box Includes:
(1) LD Systems MON 8 A G3 8" Powered Coaxial Stage Monitor
