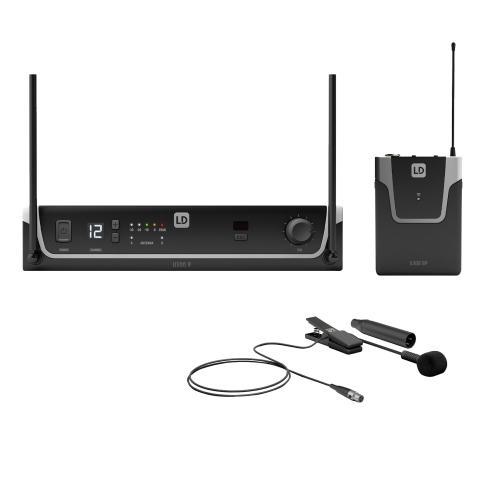

LD Systems U305.1 BPW (USA Version) Wireless Microphone System with Bodypack & Brass Instrument Microphone - 512-542 MHz
SKU #: LDS-U3051BPW(US)
$299.99
Reg.
More Arriving Soon!
Expected January 31, 2026
Developed in Germany, the UHF diversity wireless systems from the U300 series deliver excellent audio performance. They achieve a range of 100 metres in ideal conditions and are available in five frequency bands: 584-608 MHz, 655-679 MHz, 823-832 MHz + 863-865 MHz, 470-490 MHz or 514-542 MHz. Up to six U300 systems can be used simultaneously in each frequency band. Convenient one-touch synchronisation via infrared ensures fast, problem-free wireless connection between the transmitter and receiver, while a squelch with pilot tone ensures disruption-free operation. U300 transmitters have a 10 mW output and an operating time of 10 hours on two AA batteries. The handheld microphone's frequency response ranges from 55 Hz to 16 KHz. With a lower cut-off frequency of 25 Hz, the bodypack is also suitable for transmitting 5-string bass guitars with a deep H string. The bodypack's input level can be adjusted to both active and passive guitars and basses over three levels. The power switch features a handy standby mode for temporary muting.
The U300 receiver is fitted with a bright LCD channel display, an LED chain for displaying audio signal strength and both a balanced XLR and an unbalanced 6.35 mm audio output. The audio output can also be switched to instrument level for directly connecting to guitar and bass amplifiers. U300-series wireless systems feature a fresh, modern design and are available as vocal sets with receiver and dynamic handheld microphone with cardioid characteristic, bodypack and headset or bodypack and lavalier microphone. The microphone characteristic can be changed using U500-series replaceable heads. U300 instrument sets are available with bodypack and clip-on microphone for wind instruments or a double-shielded low-capacitance cable for guitars and basses.
LD Systems U305.1 BPW System with Instrument Mic Features:
- Diversity UHF wireless system with FM technology.
- 12 selectable channels.
- 100 m transmission range in ideal conditions.
- Simultaneous operation of up to 6 systems.
- ASC infrared transmitter and receiver syncing.
- Pilot tone squelch.
- 10 h transmitter operation on two AA batteries.
- Metal housing.
- Optional rackmount kit available as accessory.
LD Systems U305.1 BPW Product Specifications
General
Product type: Wireless Microphone Systems
Type: Set
Transmission frequency range: 512 - 542 MHz
Weight: 0.84 kg
LDU3051BP - LD Systems U305.1 BPW (USA version) Body Pack transmitter - 514 - 542 MHz (only available in the USA)
Product type: Wireless Microphone System Accessories
Type: Bodypack
Transmission frequency range: 514 - 542 MHz
Channels: 12
Groups: 1
Weight: 0.085 kg
Inputs: Mini-XLR (Phantom Powered Low-Z / High-Z Instrument)
Frequency response: 25 - 16000
Rated HF output power: 10 mW
Signal-to-noise ratio: 104 dB
Operating time: >10 h
Controls: Gain (3-way switch), Power On/Off
Indicators: ASC IR Sync (Green/Amber Blinking LED), Battery (low battery: red), Power LED (Power ON: green)
Power supply: 2 x AA battery
Width: 65 mm
Height: 91 mm
Depth: 25 mm
Other features: Belt clip, IR frequency synchronisation, Pilot tone
LDU3051R - LD Systems U305.1 BPW (USA version) Receiver (only available in the USA)
Product type: Wireless Microphone System Accessories
Type: Receivers
Modulation Type: FM
Transmission frequency range: 514 - 542 MHz
Channels: 12
Groups: 1
Weight: 0.7 kg
Antenna inputs: 2 x fixed
Frequency response: 25 - 16.000
Noise reduction: Squelch
Transmission optimization: Pilot tone
Total Harmonic Distortion (THD): < 0.3 %
Signal-to-noise ratio: 104 dB
Audio output, balanced: XLR
Audio output, unbalanced: 6.3 mm jack, switchable unbalanced output level
Audio mix output, balanced: XLR
Audio mix output, unbalanced: 6.3 mm jack
Max. output level: +10 dBu (Bal), +7 dBV (Unbal, Line), +2,5 dBV (Unbal, Instr) dBu
Headphones outputs: 6.3 mm TRS
Controls: ASC Sync, Channel down, Channel up, Line/Instrument Level, Power, volume
Indicators: 5 LED VU meters, Antenna A/B, LC display
Power supply: 12 V DC - 18 V DC (500 mA), external power supply
Width: 211 mm
Height: 43 mm
Depth: 120 mm
Accessories (included): 2 x AA batteries, Audio cable, Power supply
Other features: IR frequency synchronisation
LDWS1000MW - LD Systems U305.1 BPW (USA version) Clip Microphone for Brass Instruments
Product type: Wireless Microphone System Accessories
Type: Microphones
Frequency response: 50 - 18.000
Directivity: Cardioid
Sensitivity (quiescent voltage @ 1kHz): - 45 dB +/- 3 dB
Nominal impedance: 250 Ohm(s)
Max. SPL (1% THD @ 1kHz): 133 dB
Phantom power requierements: 5 V
Microphone input: Mini-XLR (3-pin, female)
Cable length: 1.5 m
Accessories (included): Foam windscreen, Phantom power adapter LDPHA
Weight: 0.05 kg
Features: 70 mm gooseneck
Each U305.1 BPW Retail Box Includes:
(1) LD Systems U305.1 BPW (USA version) Body Pack transmitter - 514 - 542 MHz(1) LD Systems U305.1 BPW (USA version) Receiver
(2) AA batteries
(1) Audio cable (1) Power supply
(1) LD Systems U305.1 BPW (USA version) Clip Microphone for Brass Instruments
(1) Phantom power adapter LDPHA
(1) Foam windscreen
