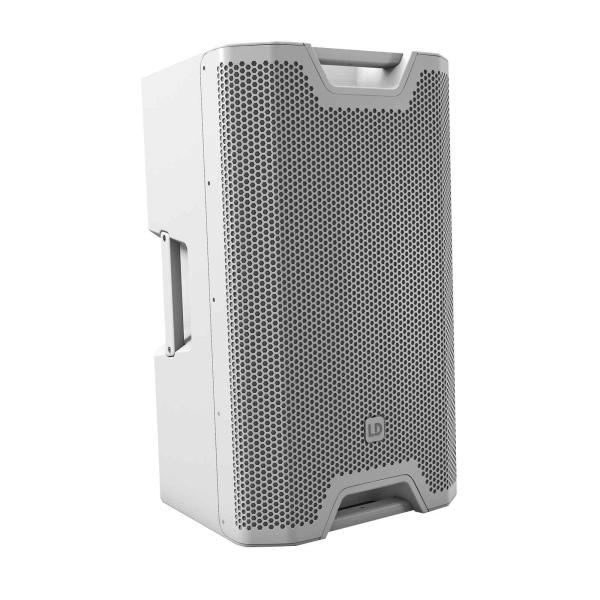

LD Systems LDS-ICOA15ABTW Powered 15" Full Range Coaxial Loudspeaker with Bluetooth - White
- A genuine all-rounder for full-range, satellite and monitor applications.
- 128 dB max. SPL and 1200 W peak power.
- Vertical and horizontal use thanks to coaxial design with rotating, BEM-optimized CD horn (Patent pending.)
- Horn-loaded woofer.
Get fast answers on setup, compatibility, and system matching.
✔ No pressure. Just real help.
Your request was saved successfully.
Drawing on DynX DSP technology by LD Systems, the speaker delivers perfect performance with maximum clarity and power under all conditions. 4 presets, a 3-band EQ and a delay function facilitate optimal adjustment of the sound to the venue conditions. The 2 line/mic input channels with individual gain controllers, plus mono mix output, allow a variety of signal sources to be connected. Thanks to its shock-resistant front grille and ideal 55° tilt angle, the LD ICOA 15 A BT W is also outstanding as a floor monitor. Placed vertically, the 36 mm dual tilt stand attachment offers the choice of a 0° or 5° tilt angle for optimally adapting the system to the local acoustic environment. Extensive and smart accessories for installation and transport are optionally available. 4 aluminium handles with an ergonomic rubber surface provide optimal grip when carrying the speaker.
LD Systems LDS-ICOA15ABTW 15" Loudspeaker Features:
- A genuine all-rounder for full-range, satellite and monitor applications.
- 128 dB max. SPL and 1200 W peak power.
- Vertical and horizontal use thanks to coaxial design with rotating, BEM-optimized CD horn (Patent pending.)
- Horn-loaded woofer.
- DynX DSP with 4 presets, 3-band EQ and delay function.
- 2 line/mic input channels with individual gain controllers plus mono mix output; Bluetooth streaming with the BT model.
- 36 mm dual tilt stand attachment with 0° and 5° tilt angle, 55° monitor angle with sturdy stand.
- 6 x M10 flying points.
- Shock-resistant front grille for optimal protection of the speaker.
- 4 aluminum grips with ergonomic, rubber surface.
- Extensive, optionally available accessories for installation and transport.
LD Systems LDS-ICOA15ABTW Product Specifications:
| Product type | PA loudspeaker |
| Type | Powered |
| Color | White (RAL 9003) |
| Bluetooth Audio Decoder | Bluetooth 4.0 |
| Low/mid driver dimensions | 15" |
| Woofer size | 381 mm |
| Woofer magnet | Ferrite |
| Woofer brand | Custom-made |
| Horn | BEM optimized CD Horn |
| HF driver dimensions | 1" |
| HF driver size | 25.4 mm |
| HF driver magnet | Ferrite |
| HF driver brand | Custom-made |
| HF driver voice coil | 1.4" |
| HF driver voice coil | 34 mm |
| Amplifier | Class D |
| Dispersion (H x V) | 90° x 50° |
| RMS | 300 W |
| Peak power | 1200 W |
| Frequency response | 48 - 20000 Hz |
| Crossover frequency kHz | 2 kHz |
| Max. SPL (peak) | 128 dB |
| Protection circuits | Multiband limiter, over voltage, over-current, thermal overload |
| Controls | 2 x gain, On / off switch, Rotary/push encoder |
| Indicators | LC display |
| Mic/ line inputs | 2 |
| Mic-/ Line Input Connectors | 6.3 mm jack Combination sockets (symmetrical), XLR |
| Line inputs | 1 |
| Line input connectors | 3.5 mm TRS |
| Line outputs | 1 |
| Line output connectors | XLR |
| Operating voltage | SMPS |
| Power consumption | 150 W |
| Ambient temperature (in operation) | 0 - 40 °C |
| Operating voltage | 100 V AC - 240 V AC, 50 - 60 Hz |
| Relative Humidity | < 80 %, not condensing |
| Fuse | T4AL 250 V |
| Cabinet material | Polypropylene |
| Cabinet construction | Bass Reflex |
| Mounting | 36mm flange (0°, 5°), 6 x M10 flying points |
| Monitor angle | 55 ° |
| Width | 416 mm |
| Height | 695 mm |
| Depth | 415 mm |
| Weight | 24.3 kg |
| Accessories (included) | Power cord |
Each LDS-ICOA15ABTW Retail Box Includes:
(1) LD Systems LDS-ICOA15ABTW Powered 15" Full Range Coaxial Loudspeaker with Bluetooth - White(1) Power cord
