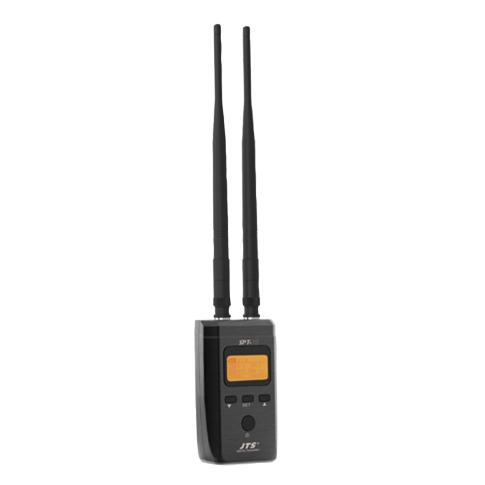

JTS SPT-1R Dual-Channel UHF Wireless Audio Receiver
SKU #: SPT-1R
$439.00
Reg.
Item Backordered
Expected March 31, 2026
Dual-Channel UHF transmission and true diversity reception with UHF true diversity technology, receiver 36 MHz switching bandwidth and 6 preset groups of up to 1441 selectable channels, the SPT-1R/1T wireless audio system is your perfect partner for mission critical applications.
Your best and state-of-the-art wireless solution that eliminates the need for speaker cabling and audio latency without any compromise in sound quality.
JTS SPT-1R Dual-Channel UHF Wireless Audio Receiver Features:
- Obviate Audio Delay/Latency.
- Eliminate Complex Cable Runs.
- Fast Setup/Teardown with Great Installation Flexibility.
- Independent Audio Channel Control.
- Suitable for: Live Performance, Vocal, and Presentation.
JTS SPT-1R Product Specifications:
| Frequency Oscillation | Phase-Locked Loop, PLL |
|---|---|
| Carrier Frequency | 470~960 MHz |
| Number of Channels | 2 Channels |
| Frequency Matching | 2.4GHz RF |
| Antenna Selection | True Diversity |
| Signal to Noise Ratio (S/N) | >106dB(A) |
| Total Harmonic Distortion (T.H.D) | <0.5%@1KHz |
| Reception Sensitivity | -95dBm,S/N>80dB |
| Mirror Rejection Ratio | >80 dB |
| General Frequency Response | 50Hz~18KHz±2dB |
| Antenna Connector | BNC Female |
| Display | LCD |
| Functions Displayed | Group, Channel, Frequency, Antenna A/B, AF Indication, RF Indication, Remoset ID, Delay Time (distance) |
| Controls | Power Switch, Group, Channel, Frequency, Reception Sensitivity, Key Lock, Delay Time, Display Settings, Language |
| Audio Output Level (MAX) | Mini XLR Jack：+10dBu(Line),-10dBu(MIC) |
| Audio Output Impedance | 600Ω |
| Mute | Noise Mute and Pilot Tone |
| Output Port | Balanced Mini XLR |
| Power | DCV INPUT 12V/0.5A |
| Dimensions | 365mm(L) x 70mm(W) x 30mm(H) |
| Remark | Specifications provided above may be slightly different from the product without further notice. |
Each SPT-1R Retail Box Includes:
(1) JTS SPT-1R Dual-Channel UHF Wireless Audio Receiver
