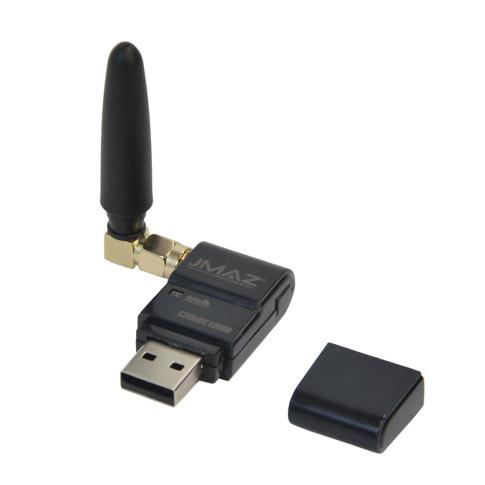

JMAZ Professional JP5001 CRMX USB Wireless DMX Receiver
SKU #: JP5001
$149.00
Reg.
Reserve Yours Now Expected May 2026
Questions? Call 1-800-355-7746 or Chat below
CRMX USB wireless receiver.
JMAZ Professional JP5001 CRMX USB Wireless DMX Receiver Features:
- CRMX by LumenRadio and W-DMX (G3/G4) for maximum compatability.
- Operating range up to 1900 ft (580 meters) with an external antenna.
- Ensures stable and robust DMX transmission over large venues or outdoor events.
- Adaptive Frequency Hopping (AFH) minimizes interference in crowded 2.4GHz enviornments.
- High sensitivity (-90dBm) and modulation via AFHSS provide reliable performance even in noisy RF conditions.
- Built-in Wireless Signal Indicator for quick troubleshooting.
JMAZ Professional JP5001 Product Specifications:
Control
Control Protocol: CRMX by LumenRadio, W-DMX
Chipset: QFN48 SMT Chip by LumenRadio
Operating Frequency: 2.4GHz
Universes Per Device: 1
Number of DMX Channels: 512
Error Connection: Yes
DMX Fidelity: Yes
Max DMX Refresh Rate: 1-830Hz
Adaptive Frequency Hopping: Yes
W-DMX G3, G4 Compatability: Yes
Range: Up to 1900ft. (580 Meters)
External Antenna: Yes
Sensitivity: -90dBm
Modulation Method: AFHSS
Body
Flame Retardant Plastic with Copper Structure
Exterior Finish: Black
Physical
Cooling: Fanless
IP Rating: IP20
Electrical
Input Voltage: DC 5V Through USB Port
DMX Output: USB
Power Input: USB
Wireless Signal Indicator
