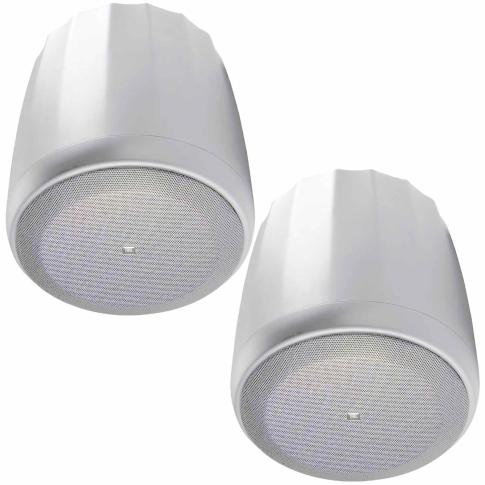

JBL Professional Control C60PS/T-WH Pendant Subwoofer with Crossover in White (sold in pairs)
About This Product
The Control 60PS/T pendant subwoofer loudspeaker provides bass extension and high impact for high-fidelity sound systems in a wide variety of applications including restaurants, retail stores, music cafes, health clubs, theme bars, leisure venues, and other locations where full-range high fidelity foreground/background music systems are utilized. Featuring 150 Watt power handling and low distortion, the long-excursion 200mm (8 in) low frequency driver features butyl rubber surround for well-damped, tight sound quality and long-term reliability, and a polypropylene-coated cone for humidity protection. The high-temperature 50mm (2 in)voice coil and low-mass fiberglass coil formerensure good bass transient response and excellent stability under high power, high duty-cycle, working conditions.Control 60PS/T Features:
- High impact, 150 Watt direct radiating pendant subwoofer with built-in passive crossover for up to four satellite speakers.
- 200 mm (8 in) long-excursion driver.
- 8 ohm (150 Watt) and 70V/100V (100 Watt) operation.
- Hanging hardware with 4.5 m (15 foot) galvanized steel cable and easy to adjust clamp.
- Stylish design, available in black or white.
- UL listed (speaker and hanging cable system).
The Control 60PS/T may be driven by itself (or with other subwoofers) on an amplifier channel, sending it either a signal that has been actively low-passed earlier in the signal chain via DSP or a full-range signal, utilizing the built-in passive 125 Hz low-pass filter. The included passive crossover also provides high-passed satellite outputs for use with either two or four satellite loudspeakers (not for one or three satellite speakers), resulting in a full-range, wide-bandwidth, passively-crossed, mono subwoofer-satellite system. Using the built-in passive crossover is best suited for satellite speakers with sensitivities in the 82 dB to 86 dB (2.83V @ 1m) range, resulting in a well-balanced overall frequency response.
A 100 Watt multi-tap, wide-bandwidth, low-saturation transformer allows the speaker to be used on either a 70V/100V distributed speaker system or as a direct low-impedance 8 ohm speaker. If satellite speakers are used on the70V/100V settings, the satellite speakers should be low-impedance (8 ohm to 16 ohm each).
A loop out connector is provided on the subwoofer for looping the full-range input signal to other loudspeakers or to other subwoofer/satellite systems. Rubber boot covers for each locking connector protect the terminals and the optional MTC-PC60 full-top cover accessory adds additional terminal protection for when using outdoors.
- Retail Stores
- Music Cafes
- Health Clubs
- Theme Bars
- Leisure Venues
- Foreground/Background Music
- Recreational Facilities
JBL Professional Control 60PS/T Specifications:
|Frequency Range (-10 dB)||42 Hz – 350 Hz|
|Frequency Response (± 3 dB)||55 Hz – 125 Hz|
|Power Capacity||300 Watts Continuous Program Power, 100 hrs|
150 Watts Continuous Pink Noise, 100 hrs
|Nominal Sensitivity (2.83V/1m)||88 dB|
|Rated Maximum SPL||107 dB @ 1 m (3.3 ft) average, 113 dB peak|
|Rated Impedance||8 ohms|
|Transformer Taps||110W, 55W, 30W (& 15W@70V). Set via rotary tap-selector switch (70V/100V taps along with direct 8|
|Transformer Insertion Loss||0.98 dB @ 15W, 0.99 dB @ 30W, 0.94 dB @ 55W, 1.10 @ 110W|
|Standalone Hookup||Connect to Input connector; built-in low-pass filter permanently engaged. Loop Out in parallel with Input connector (pre low-pass filter) for sending to additional speakers.|
|Subwoofer-Satellite Hookup||For either two or four satellite speakers (not for one or three satellite speakers). With two satellite speakers, must connect to Sat 1 and Sat 2 terminals only (NC to Sat 3 and Sat 4 terminals). Satellite outputs highpassed. Suggested satellite speakers include Control 62P (pendant), Control 52 (surface-mount on-wall) and Control 42C (in-ceiling). Satellite speakers to be low-Z type (8 to 16|
|Transducer||200mm (8 in) polypropylene-coated paper cone with butyl rubber surround, 50 mm (2 in) high-temperature copper voice coil, vented fiberglass resin voice coil former.|
|Enclosure Material||High impact polystyrene|
|Grille||Zinc-plated steel grille with powder-coat finish, foam backing (grille and grille backing are removable for painting)|
|Environmental||Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 – splash-proof rating|
|Termination||Six removable locking 2-pin connectors with screw-down terminals. Input, Loop Out, Sat 1, Sat 2, Sat 3, Sat 4. Max wire 12 AWG (2.5 mm2). Rubber terminal covers included.|
|Suspension||Two identical suspension cable systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long, 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple brand adjustable-height cable fasteners for infinitely adjustable height. Cable has SWL rating of 45 kg (99 lb).|
|Safety Agency||Speaker listed per UL1480 (UEAY), transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple- brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81.|
|Dimensions||333 mm (13.1 in) diameter, 344 mm (13.6 in) height to top of cabinet.|
369 mm (14.5 in) to top of suspension bracket.
|Net Weight||7.6 kg (16.7 lb)|
|Shipping Weight||17.6 kg (38.7 lbs) per pair-packed carton|
|Included Accessories||Two suspension cable systems (see “suspension”, above), six removable locking 2-pin euro-block connectors, six rubber cover boots for euroblock connectors.|
|Optional Accessories||MTC-PC60 full top panel / terminal cover. Wire access holes in plastic cover to be drilled by installer to suit the number and dimensions of wire.|
|Colors||Available in black or white. Paintable.|
(2) JBL Professional Control 60PS/T Pendant Subwoofers with Crossover in Black
Each Individual Control 60PS/T Box Includes:
(1) JBL Professional Control 60PS/T Pendant Subwoofer with Crossover (black)
(2) Suspension Cable Systems
(6) removable locking 2-pin euro-block connectors
(6) rubber cover boots for euro-block connectors.
