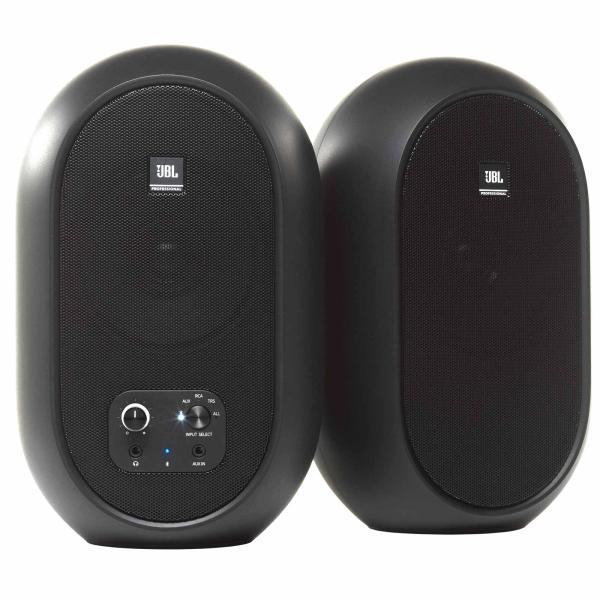

JBL 104-BT Compact Desktop Reference Monitors with Bluetooth

Name: JBL 104-BT Compact Desktop Reference Monitors with Bluetooth
Brand: JBL
SKU: 104SET-BT-US
Price: 139 USD
Availability: BackOrder

SKU

104SET-BT-US

Special Price $139.00 Regular Price $149.00

Item Backordered

Expected October 31, 2024

Only at IDJNOW

Fast Shipping

Most products ship same-day

30-Day Price Protection

Find a lower price, you're covered.

6000+ Reviews

95%+5-star reviews

30-Day Returns

Don't Like it? Return most items.

Recently Viewed

Details

JBL 104-BT compact reference monitors with Bluetooth, the newest models in the 1 Series line, draw from seven decades of JBL Professional engineering to deliver the truest, most accurate sound in their class. They're perfect for recording musicians, producers, podcasters and vloggers, as well as professional audio engineers seeking an accurate portable reference with Bluetooth streaming. JBL 104-BT Reference Monitors combine a powerful coaxial 4.5-inch (118 mm) low-frequency driver and .75-inch (19 mm) soft-dome tweeter, potent integrated 60-watt amplification and an innovative acoustic design to reproduce honest sound with exceptional imaging and crisp detail. Bluetooth streaming lets you check mixes over Bluetooth to make sure they sound great in every listening scenario. Both the black 104-BT and white 104-BTW versions are sleek, elegant designs and compact form factors, making stunning statements in any studio while conserving valuable work space. Creative professionals, music lovers and anyone who wants the flexibility to stream both wired and wireless sound into high-quality studio monitors can count on JBL 104-BT to provide an accurate, reliable sonic reference and a truly enjoyable listening experience.

JBL 104-BT Studio Monitor Pair Features:

Coaxial driver design With 4.5-inch (118 mm) LF driver and .75-inch (19 mm) soft-dome HF driver.
Integrated 60-watt Class D power amplifier distributes 30 watts to each speaker.
Acoustically optimized for desktop placement.
Three sets of inputs and built-in Bluetooth Allow connection with professional equipment, personal music players and consumer products.
Smart features Include front-panel volume control, input selection and headphone jack with automatic speaker mute.

Tech specs

JBL 104-BT Studio Monitors Product Specifications

Bluetooth: Yes
Bluetooth Version: 5.0
Low Frequency Transducer: 4.5 in (118 mm)
High Frequency Transducer: 0.75 in (19 mm), soft dome
Crossove:r 1725 Hz, 1st order
Power Amp: 60 W (30 W each speaker), Class D
Sensitivity: 87 dB SPL @ 1 m with -10 dBV Aux In (Volume = Max)
Maximum Continuous SPL: 89 dB
System Peak SPL: 102 dB (pink noise, 12 dB crest factor)
Maximum SPL, Momentary: Peak 104 dB
Maximum Peak Input Level (-10 dBV / +4 dBu):: +6 dBV / +20.3 dBu
Frequency Range (-3 dB SPL): 88 Hz – 20 kHz
Frequency Range (-10 dB SPL): 60 Hz – 20 kHz
System Rated Impedance: 8 Ω
Minimum Impedance: 7.8 Ω @ 260 Hz
Cabinet Tuning Frequency: 72 Hz
System Distortion Criteria: <10% THD at maximum output with full compressor / limiter engagement
Electrical Distortion Criteria: <0.2%THD @ 1 kHz, 2.83 VRMS output; <1% THD @ 1 kHz, full rated output
Signal to Noise Ratio:75 dBA (A-Weighted), 70 dBr (unweighted), relative to 2.83 VRMS output on HF
Coverage (Horizontal x Vertical): 120º x 60º
Acoustic Test Specification: ATS# 1000340443

Dimensions

Height: 9.72 in (247 mm)
Width: 6.02 in (153 mm)
Depth: 4.88 in (124 mm)
Net Weight: Primary Monitor = 4.54 lb (2.06 kg); Secondary Monitor = 3.81 lb (1.73 kg)

Audio Input

System Input Type: Bluetooth, 1/8" Aux, RCA, 1/4" TRS balanced
Input Selection Options: Bluetooth, Aux, RCA, TRS, All

Design

Enclosure Type: Ported
Enclosure Material: ABS with metal grille
Enclosure Finish: Matte black acrylic paint (104-BT) ; Matte white acrylic paint (104-BTW)

Audio Output

System Output Type: 1/8" stereo headphone with auto speaker mute

Powering Interface

System Power Handling: 30 W x 2 @ 100 hours, IEC/SMS
System Polarity: EIA
AC Input Voltage: 100 – 240 VAC (± 10%), 50/60 Hz
Current Draw: 85 watts
Electrical Current Draw (W) Idle 100 / 240 VAC: 3.52 / 3.70
Electrical Current Draw (W) Max Power 100 / 240 VAC: 80 / 80
Electrical Current Draw (W) Low Power Standby Mode 100 / 240 VAC: 0.34 / 0.46

What's In The Box

Each JBL 104-BT Retail Box Includes

(1) 104-BT Master Monitor
(1) 104-BT Extension Monitor
(1) Extension monitor speaker wire (2-conductor, 2 meters)
(1) 3.5 mm to RCA audio cable
(1) Regional power cable
(1) Quick setup guide
