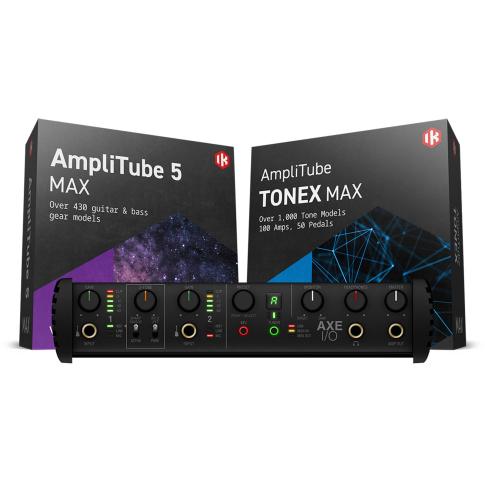

IK Multimedia AXE I/O Audio Interface with AmpliTube 5 MAX & TONEX MAX Bundle
SKU #: CB-AXEIOAT5-HCD-IN
Reg.
$449.99
Now
$349.99
Reg.
In Stock - Almost Gone
Most orders placed by 3pm ET ship same day (business days)
Since IK Multimedia pioneered guitar amp & effects modeling in 2002, it has spent more time studying guitar and amp recording than possibly anyone else on the planet. Modeling over 400 pieces of gear has required tens of thousands of hours painstakingly measuring the interactions between instruments, pickups and amplifier circuits, not to mention the cooperation of the world's most iconic guitar players, amplifier manufacturers, and engineers to learn how to create and capture great guitar tones. AXE I/O brings all that experience to you. AXE I/O is a professional 2 in/5 out audio interface - and controller - designed specifically with the needs of the recording guitarist in mind, providing best-in-class sound quality and powerful features aimed squarely at making your recordings faster, easier and better than ever.
AXE I/O offers an exclusive triple-topology, fully discrete input circuit, with both PURE and JFET input stages, to go from transparent to tube-like with just a single switch. Its patent-pending Z-Tone impedance-adapting circuit interacts with your guitar's pick-ups to give you a massive range of tonal flexibility, you've never heard before. AXE I/O also includes a dedicated Amp Out, so you can create the perfect Tone Models of your amps and pedals using TONEX for Mac/PC. Or process your recorded tracks using real guitar amps and stomps without the need for external accessories (and without having to unplug your gear). This low-noise output also eliminates ground loops during amplification and Tone Modeling to keep your high-gain amps as quiet as possible.
117 dB dynamic range, 3 Hz - 32 kHz frequency response - these aren't the specs you typically find on instrument inputs. But they're essential to capturing the most accurate details of your performance, for coaxing the best performance from your instrument, and for keeping your sound pure and transparent. AXE I/O provides 2 Hi-Z front ¼" inputs for guitars and basses, 2 rear combo inputs with phantom power to connect mics and line instruments, and clear precision front peak meters to conveniently monitor the signal level at the channels input. Two floating balanced outputs, two unbalanced and one floating unbalanced Amp out plus a high-current headphone out let you connect monitors, mains and headphones, with independent volume for both. A Monitor knob makes it easy to blend direct monitoring and the audio from your computer for zero latency monitoring. 24-bit, 192 kHz conversion and an ultra-stable, low jitter internal clock ensures the highest fidelity, whether you're capturing vocals, acoustic instruments, amplified guitar or just direct signal for use with AmpliTube. But that's just scratching the surface. AXE I/O's main channel offers 3 different circuit topologies - that means you have 3 different options to adapt to any type of guitar, pick-up and style so you can always dial in the perfect tone from any instrument. All three stages offer 117 dB dynamic range to ensure the cleanest signal. And the 3 Hz - 32 kHz frequency response preserves the full sonic impact of your instrument. Unlike the 20 Hz bass response in budget interfaces, AXE I/O captures the full impact of even the deepest bass and won't artificially cut off sounds above 20 kHz.
IK Multimedia AXE I/O Audio Interface with Software Bundle Features:
- 2 in / 5 out (one low-noise Amp out).
- 2 ultra-low noise mic in/balanced line in.
- Triple topology guitar input with Z-TONE.
- 2 balanced monitor out / 2 line out.
- Reference headphones out.
- 2 fully configurable external control input.
- MIDI input/output.
- USB 2.0 compatible with Mac/PC.
- Best-in-class guitar tone.
- Selectable Active/Passive/discrete JFET/Pure instrument preamp.
- Patent pending Z-TONE input for a tonal palette never heard before.
- Amp Out for reamplification or Tone Modeling using TONEX for Mac/PC.
- Comes with AmpliTube 5 SE and TONEX SE for Mac/PC.
- Connect up to 2 expression pedals, single and double-switches.
- Fully assignable data-knob - for AmpliTube preset browsing and more.
- Built-in Tuner.
- Rugged/compact metal housing.
- Premium studio sound.
- High-resolution ultra low-noise Class A microphone preamps.
- Best-in-class conversion and superior analog design.
- Asynchronous USB audio, ultra low conversion jitters for premium quality.
- 117dB dynamic range.
- Includes control software.
- Up to 192 kHz sampling rate.
IK Multimedia AXE I/O Audio Interface Bundle Product Specifications:
AXE I/O now ships with TONEX SE
Model the sound of any amp, cabinet, combo or pedal, and turn it into a plug-in to use on both Mac/PC or iPhone and iPad for the ultimate tone experience. Explore ToneNET and IK's new TONEX Signature and Tone Partner Collections and discover gear you've always wanted to own.
Tone and feel like you've never heard
Guitar pickups can dramatically change their character depending on the impedance of your preamp. Many guitar amps offer a load of 1 MOhms, while pedals can run much lower. That's why the tone and responsiveness of your guitar can change so much when plugging into different gear. AXE I/O's patent pending Z-TONE circuit lets you dial in impedance from 1 MOhm ("sharp") down to 2.2 kOhms ("bold") that interacts with your pick-ups. At the maximum impedance, you'll find your sound tighter, sharper and more precise. Increase the load and the sound becomes more thick and bold. You'll quickly find yourself using this to give your guitars even more sonic character - with just a few minutes' experimentation you can dial in a sound that fits the mix beautifully, as if it's been EQ'd
PURE mic preamps for transparent recording
When it comes to recording with microphones, AXE I/O offers two PURE mic preamps designed for transparent and clean recording. These mic pres offer a wide, flat frequency response: 5 Hz to 32 kHz, ± 0.5 dB (at 96 kHz) to avoid unwanted coloration and perfectly preserve the sonic character of your acoustic guitar, piano or other instrument, and maintain the signature of whichever mics you connect. They offer 116 dB of dynamic range, for ultra-quiet sound perfect for recording even the most delicate instruments, but make it easy to also pull back and record the loudest amp stack.
Tone Modeling and reamplification made easy
AXE I/O also includes a dedicated Amp Out, so you can create the perfect Tone Models of your amps and pedals using TONEX for Mac/PC. Or process your recorded tracks using real guitar amps and stomps without the need for external accessories (and without having to unplug your gear). This low-noise output also eliminates ground loops during amplification and Tone Modeling to keep your high-gain amps as quiet as possible. It's simple: connect the Amp Out to your amp, then mic it up using AXE I/O microphone preamp. Now you can create a perfect Tone Model using TONEX for Mac/PC. Capture a clean copy of your signal while recording and feed it back to your amp afterwards to experiment with different amp, stompbox and microphone settings without re-recording countless takes. AXE I/O offers a simple, streamlined reamplification setup in a single box to save you time, money and energy and open up unlimited sonic flexibility for all your guitar recordings.
Seamless AmpliTube integration - and more
For those who prefer in-the-box modeling, AXE I/O also offers a range of useful features. First, a Preset knob lets you quickly and easily scroll through AmpliTube presets. Just push the knob to select and load one. You can find the perfect preset without ever having to grab a mouse. And if you use any other software, the Preset knob can be freely assigned to any CC so you can have direct control of your preferred virtual rig. Second, two dedicated controller inputs let you connect up to two expression pedals or two single/double switches to control AmpliTube, or any other software, in real-time while playing. With AmpliTube's MIDI Learn function, just right-click on any parameter you want to control, move the pedal, and it's assigned. You can do up to 6 different controller configurations with AXE I/O, mixing pedals and switches, to suit your needs. You can also use AXE I/O's MIDI input and output to connect floor controllers or iRig Stomp I/O to add even more real-time controls - or use it with regular keyboards and other standard MIDI gear. There's also a dedicated tuner on the front panel, making it easier to tune in between takes. And IK Multimedia worked hard to ensure AXE I/O offers minimal latency, giving you the tightest response and feel while tracking.
Common
Conversion: 24-bit A/D, 24-bit D/A
Sampling Rate: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz and 192 kHz
Power: DC IN
Device Connection USB B-Type 2.0
Enclosure: metal sheet
Line Outputs 1-2 (Monitor)
Configuration: Electronically balanced and floating, automatically compensates level when connection is balanced or unbalanced, tip hot.
Output impedance: 150 Ohms balanced, 75 Ohms unbalanced
Output Level: 0 dBFS corresponds to +21 dBu
Frequency response: From 3 Hz to 32 kHz within 0.5 dB (96 kHz sample rate)
Dynamic Range: 116 dB(A)
THD+N: -106 dB(A) at -1 dBFS
Channels 1-2 crosstalk: 115 dB(A)
Line Outputs 3-4
Configuration: Unbalanced
Output impedance: 75 Ohms
Output Level: 0 dBFS corresponds to +16 dBu
Frequency response: From 3 Hz to 32 kHz within 0.5 dB (96 kHz sample rate)
Dynamic Range: 115 dB(A)
THD+N: -102 dB(A)
Channels 3-4 crosstalk: 112 dB(A)
Output 5 (Amp output)
Configuration: Unbalanced, floating, with selectable ground lift
Output impedance: 100 Ohms
Output Level: 0 dBFS corresponds to -6 dBu
Frequency response: From 10 Hz to 32 kHz within 0.5 dB (96 kHz sample rate)
Dynamic Range: 110 dB(A)
THD+N: -104 dB(A)
Headphones Out
Output impedance: Virtually ideal source (zero Ohms) until clipping
Maximum Output level: +12 dBu into 50 Ohms load (approx 180 mW)
Frequency response: From 3 Hz to 32 kHz within 0.5 dB (96 kHz sample rate)
Dynamic Range: 112 dB(A)
THD+N: -100 dB(A)
Mic Inputs 1-2
Configuration: Class-A discrete differential microphone preamp, pin 2 hot
Input impedance: 4 kOhms differential
Input level, min gain: 0 dBFS is obtained with a +12 dBu signal at the XLR input
Input level, max gain: 0 dBFS is obtained with a -37 dBu signal at the XLR input
Frequency response: From 5 Hz to 32 kHz within 0.5 dB (96 kHz sample rate)
Dynamic Range: 116 dB(A)
THD+N: -106 dB(A) at -10 dBFS
Line Inputs 1-2
Configuration: Class-A discrete differential line receiver, tip hot
Input impedance: 20 kOhms differential
Input level, min gain: 0 dBFS is obtained with a +26 dBu signal at the TRS input
Input level, max gain: 0 dBFS is obtained with a -24 dBu signal at the TRS input
Frequency response: From 5 Hz to 32 kHz within 0.5 dB (96 kHz sample rate)
Dynamic Range: 116 dB(A)
THD+N: -106 dB(A) at -10 dBFS
Instrument Inputs 1
Configuration: Multiple topology instrument preamp
Input impedance, PASSIVE mode: Variable from 1 MOhms down to 2.2 kOhms
Input impedance, ACTIVE mode: 10 kOhms
Input level, min gain: 0 dBFS is obtained with a +14 dBu signal at the TS input
Input level, max gain: 0 dBFS is obtained with a -17 dBu signal at the TS input
Frequency response: From 3 Hz to 32 kHz within 0.5 dB (96 kHz sample rate)
Dynamic Range: 117 dB(A)
THD, PURE mode: 0.0015 %
THD, JFET mode: 0.5 %
Instrument Inputs 2
Configuration: Hi-Z instrument preamp
Input impedance: 1 MOhms
Input level, min gain: 0 dBFS is obtained with a +14 dBu signal at the TS input
Input level, max gain: 0 dBFS is obtained with a -17 dBu signal at the TS input
Frequency response: From 3 Hz to 32 kHz within 0.5 dB (96 kHz sample rate)
Dynamic Range: 117 dB(A)
THD: 0.006%
Connections and Controls: Front Panel
Two 1/4" instrument input jacks
Two analog potentiometers for Input GAIN
Two 5 segments input level meter (peak)
Two INST, LINE, MIC LEDs
Analog potentiometers for Z-Tone control
Pick-Up selector (PASSIVE/ACTIVE)
Preamp topology selector (JFET/PURE)
+48V phantom power switch
Tuner switch
Tuner display and LEDs
USB LEDS
MIDI IN/OUT LEDs
push-encoder for Presets
Monitor knob
1/4" headphones output jack
Master potentiometer for main output control
1/4" Amp output jack
Connections and Controls: Rear Panel
On/Off power switch
External DC power input
MIDI I/O 5-pin DIN connectors
B-Type USB socket for connecting a computer (Mac/PC)
2 x 1/4" TRS External controllers sockets
2 x 1/4" TRS Balanced floating line outputs
2 x 1/4" TRS Unbalanced line outputs
2 Combo sockets for MIC input and Instrument input (auto selecting)
Dimensions
Size: 23.8cm/9.37" x 21.1cm/8.31" x 5.3cm/2.09"
Weight: 1.3kg/2.9lb
Each AXE I/O Audio Interface Bundle Retail Box Includes:
(1) IK Multimedia AXE I/O Audio Interface(1) USB A-Type to USB B-Type connection cable (1.5m/4.32ft)
(1) DC power supply
(1) AmpliTube 5 MAX v2. Software
(1) TONEX MAX Software
