Be the first to review this product

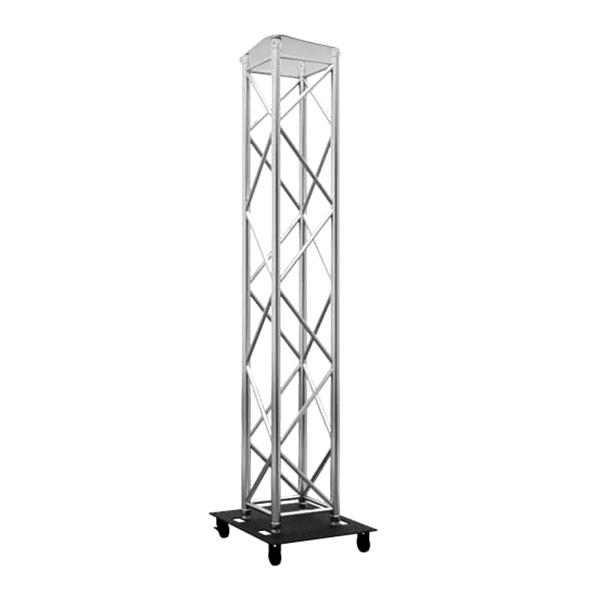

Global Truss 8.20FT Mobile Truss Lighting Totem Kit Package
SKU
TRUSSTOMEROLL25
Special Price $844.40 Regular Price $938.00
In Stock - Almost Gone
Most orders placed by 2pm ET ship same day (business days)
Only at IDJNOW
Global Truss 8.20FTMobile Lighting Totem Kit Package
The Global Truss 8.20' Mobile I-Beam Lighting Totem Kit Package makes assembling a stylish, high quality, and functional truss totem easy. We include matching series top and bottom baseplates and a 8.20' vertical I-beam segments. All segments are equipped with connecting hardware and are fabricated by TUV certified welders. These lighting totems, with their sturdy base-plates are great for mounting moving heads or effect lights on top and can be further accented with any LED uplight.
Global Truss 8.20FT (2.5m) Square Segment [SQ-4113]
Fabricated by certified TUV Welders. Equipped with connecting hardware.
Global Truss Base Plate for F34 Square Truss [SQ-4137]
12”x12” Aluminum base plate for square truss.
Global Truss Steel Base Plate with Casters for Quick Grids, F34 & F44P Trussing [Base Plate 24X30WC]
A steel 24x30 ¼ thick steel base plate with four heavy duty lockable casters and cutout handles for easy handling and to easily move around a stage set. Designed to work with the DT-Quick Grid systems but will also work with F34 & F44P trussing.
Global Truss Half Conical Coupler for Base Plates
Conical coupler with coupler pin and R-clip.
Fits: F31/F32/F33/F34/F44P Series
Global Truss SQ-4113 Specifications
11 7/16" (290Mm) Overall Width
2" (50Mm) Outer Diameter Tubing
3/4" (20Mm) Diagonal Bracing
0.08" (2Mm) Wall Thickness
Unit Weight 36Lbs
Global Truss SQ-4137 Specifications
Unit Weight: 4lbs.
Global Truss Base Plate 24X30WC Specifications
- The base plate weighs in at 55 lbs, and has a 250 lbs. max load capacity.
- The recommended working height is 8 foot for trussing.
- The recommended working height for quick grids with moving lights is 3 quick grids, for non-moving lights is 4 quick grids.
Global Truss Half Coupler Specifications
Unit weight: 1 lb.
This Package Includes:
(1) Global Truss 8.20FT (2.5m) Square Segment [SQ-4113]
(1) Global Truss Base Plate for F34 Square Truss [SQ-4137]
(1) Global Truss Steel Base Plate with Casters [Base Plate 24X30WC]
(2) Global Truss Half Conical Couplers for Base Plates
The SQ-4113 Box Includes:
(1) Global Truss 8.20FT (2.5m) Square Segment [SQ-4113]
The SQ-4137 Box Includes:
(1) Global Truss SQ-4137 Base Plate for F34 Square Truss
The Base Plate 24X30WC Box Includes:
(1) Global Truss Steel Base Plate with Casters for Quick Grids, F34 & F44P Trussing [Base Plate 24X30WC]
Each Half Coupler Box Includes:
(1) Global Truss Half Conical Coupler
(1) Coupler pin
(1) R-Clip
