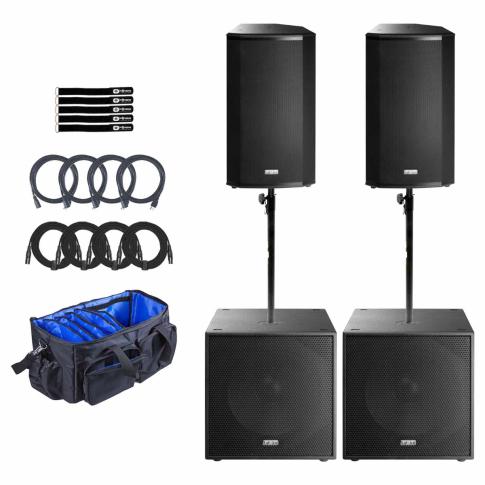

FBT VENTIS 115A Processed 2-Way Active 15" Speakers with Active 18" Subwoofers Duo Package

The VENTIS range by FBT comprises 5 versatile loudspeakers for either portable use or fixed installation. Available in bi-amplified or passive versions, each model was designed to meet the highest standards in both performance and aesthetic appeal. VENTIS 206 can be used as sound reinforcement, as an under-balcony system, as a main source for speech for its high intelligibility or simply as the full-range companion of a subwoofer.

All VENTIS models are equipped with a switching amplification module designed in Italy. The Class D integrated power amplifier for low frequencies supplies 700W RMS. For high frequencies, the amplifier section is Class HAB (200W RMS). A digital signal processor (DSP) is fitted inside and equipped with an intuitive graphical interface; situated on the rear panel, the DSP display shows all the menu choices, which can be edited via a single knob with push-to-select features. Made from birch plywood, they have a profile tilted at 45° for positioning on stage as a monitor, with various anchoring points and the option of being wall-mounted by means of a U-bracket.

FBT VENTIS 115A Processed 2-Way Active 15" Speaker Features:

• 2-way, bi-amplified, bass reflex design.
• Biamped: 700W RMS LF and 200W RMS HF power amplifiers in Class D for LF and in Class H/AB for HF.
• Digital Signal Processor with graphic display.
• 15 mm (0.59") birch plywood scratch resistant enclosure and internal bracing.
• High efficiency switch mode power supply.
• Control Panel features balanced XLR/Jack input, XLR LINK OUT, 2 x Volume, RCA Stereo input, DSP display with rotative encoder and push.
• 380mm (15") LF woofer with 64mm (2.5") voice coil, custom made for FBT.
• 25mm (1") exit throat B&C HF compression driver with 44mm (1.7") voice coil.
• Frequency response from 42Hz to 20KHz.
• 80°H x 50°V Constant Directivity rotatable Horn.
• 6 x M10 suspension points, wall bracket mount thread, 35 mm (1 3/8") top-hat speaker stand socket, two aluminium handles.
• 45° monitor taper.

The FBT SUBLINE 118 SA, 2 x 18" bass reflex design subwoofer, is the perfect low-frequency extension and the ideal companion for the FBT MUSE 210LA line array or ground stack applications with optional metal base. The FBT SUBLINE 118 SA meets the following performance criteria: Frequency response of 33Hz - 100Hz, Class D amplifier 1200W RMS. The FBT SUBLINE 118 SA provides a DSP with 6 presets, 4 equalization with 2 LPF Crossover Settings, 6 step digital delay line up to 3.5m. The FBT SUBLINE 118 SA features 0.59" Baltic birch plywood construction covered in a scratch resistant black paint with M20 (20mm) top mount speaker stand socket and two aluminum ergonomic FBT handles. The control panel provides stereo XLR in & out, volume control, preset, delay, phase 0°-180°, and 3 status led indicators.

FBT SUBLINE 118 SA Compact Active 18" Subwoofer Features:

• Bass-reflex design subwoofer.
• 460 mm (18") high excursion woofer with 75 mm (3") voice coil, custom made for FBT by B&C.
• Frequency response from 33Hz - 100Hz.
• 1200W RMS Class D power amplifier with switch mode power supply.
• Digital Signal Processor with 6 presets, 4 equalization with 2 LPF Crossover Settings, 6 step digital delay line up to 3.5m.
• Control Panel with Stereo XLR in/outs, Volume, EQ Presets, Delay, Phase Reversal Switch 0°-180°, 3 status LED indicators.
• 15 mm (0.59") birch plywood scratch resistant enclosure with internal bracing.
• M20 (20mm) top mount speaker stand socket and two aluminum ergonomic FBT handles.
