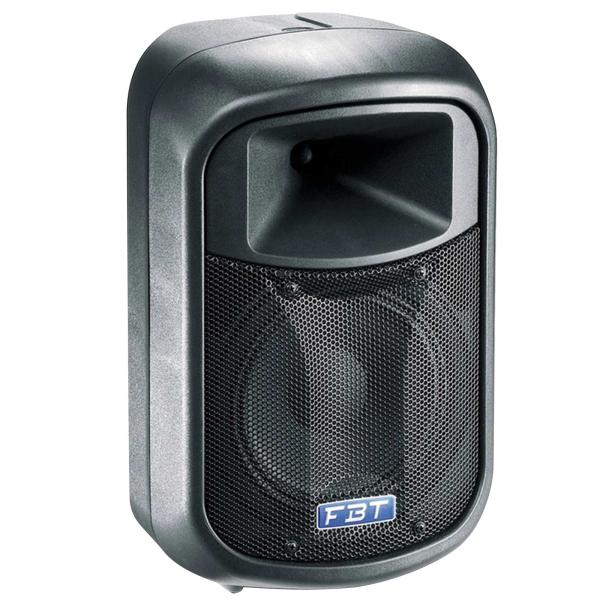

FBT J 8A 8" + 1" Active Speaker Featuring 8" Driver and 1" Compression Driver

The J8A is an Active 200 Watts + 50 Watts speaker featuring a 8" Driver and a 1" Compression driver. This Italian made speaker features a rugged gas injected molded polypropylene cabinet with a smaller 25mm pole mount. The FBT J8A series speakers feature lightweight, yet rugged gas injected molded polypropylene cabinet construction. Available in black or white finish the FBT J8Aseries speakers modern cabinet appearance provides fixed installations with an elegant design that blends into any decor.

The asymmetrical shape of the FBT J8A cabinet also allows use as a powered floor stage monitor. The FBT J8A is of two way design incorporating an 8" low frequency woofer and 1" HF custom compression driver coupled to a 90°H x 60°V horn. The active internal crossover is at a fixed frequency of 2.5kHz. With a frequency range of 60Hz - 20kHz the FBT J8A speakers provide high fidelity sound for both speech and music applications with a maximum SPL of 124dB.

A front face steel grille protects the speaker from external damage. The bi-amplified FBT J8Aactive speaker feature a 200W RMS low frequency amp and a 50W RMS high frequency amp. The control panel features a level control, HP filter switch, mic/line selector, preset switch (original, boost) led power on, protection/limiter led indicators, a balanced XLR and Jack in, a balanced XLR link out. The two M6 fly points built into the cabinet along with the optional mounting brackets allow the FBT J8Aspeaker to be surface mounted on walls or ceilings. A standard 1,38" speaker stand socket allows the FBTJ8Ato be mounted on speaker stand.

Applications

• Band P.A.
• Personal monitor
• Small theatres
• Auditoriums
• Piano bar
• DJ
• Stage monitor
• Conference rooms
• Fixed installations in live clubs
• Pubs
• Gyms

FBT J 8A 8" + 1" Active Speaker Features:

• 2-way processed active system.
• Polypropylene enclosure.
• 1 x 8" custom woofer.
• 1 x 1" neodymium silk dome tweeter.
• 150W/40W built-in amplifier cont. RMS LF/HF.
• 200W/50W built-in amplifier max. RMS LF/HF.
• 400W/100W built-in amplifier max. peak LF/HF.
• 2 x M6 suspension points.
• Low noise toroidal transformer power supply.
• 2 DSP presets.
• Completely manufactured in Italy.
