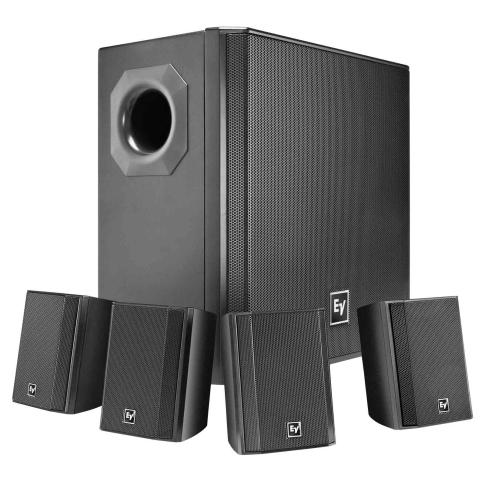

Electro Voice EVID S44 Wall Mount Music Speaker System (black) complete matched background/foreground music speaker solution
About This Product
The EVID Compact Sound speaker series continues the EVID family’s focus on form and function, with stylish, architecture-friendly design, a best-in-class performance-to-size ratio, and user-friendly installation and operation. The system is designed to provide exceptional background/foreground audio performance in retail spaces, restaurants, and similar environments – all while being heard but hardly seen. In addition to EV-engineered components for superior quality and reliability, the system features quick-access connections, simple wiring, and flexible mounting options (hardware provided), and is compatible with a variety of existing EV amplifier products, making it a great choice for contractors and end-users alike.
- High-performance EV-engineered 8” transducer with high-efficiency multi-mode audio crossover network.
- Compact, high-density wood enclosure with port for extended bass response, secure snapon speaker grille, and quick-mount slide-on bracket system.
- Easy-access signal connections with Phoenix-style connectors for quick wiring, user-friendly mode selector for stereo or mono operation, and easy-tap selector dial (supports 4/8 ohm inputs or up to 100 W / 70/100 V audio connections).
- 2” wide-range mid/high-frequency driver designed for broad, even coverage.
- Multi-angle compact mounting bracket system allows for a variety of speaker angles.
- Rigid high-impact ABS enclosure for durability.
Electro Voice S44 Specifications
|Bracket Adjustment Range||EVID 2.1: 160° x 60° ; EVID 40S: Fixed|
|Coverage, Music||EVID 2.1: 100° x 100°; EVID 40S: Omnidirectional|
|Coverage, Voice||EVID 2.1: 150° x 150°; EVID 40S: Omnidirectional|
|Impedance||EVID 2.1: 16 ohms; EVID 40S: Dual 8 ohm / mono 4 Ω|
|Included Accessories||Wall bracket; hex wrench|
|Maximum SPL||EVID 2.1: 100 dB; EVID 40S: 114 dB|
|Power Handling (Continuous / Peak)||EVID 2.1: 30 W; EVID 40S: 200 W|
|Transducer||0" (EVID 2.1: 50 mm (1.97 in); EVID 40S: 200 mm)|
|Transformer Taps (Transformer Version Only)||EVID 2.1: NA; EVID 40S: 100 W, 50 W, 25|
|Frequency Response (-10 dB)||EVID 2.1: 180 Hz - 20 kHz; EVID 40S: 180 Hz - 20 k Hz|
|Sensitivity 1 W/1 m||EVID 2.1: 84 dB; EVID 40S: 88 dB|
|Connector Type||Phoenix (2-pin)|
|Enclosure Material||EVID 2.1: ABS (fire rated); EVID 40S: Wood (MDF);|
(1) EVID 40S Subwoofer in black
(4) EVID 2.1 satellite speakers in black
(1) Wall mounting hardware kit for the satellite speakers
(1) Power cord
(1) Product manual
