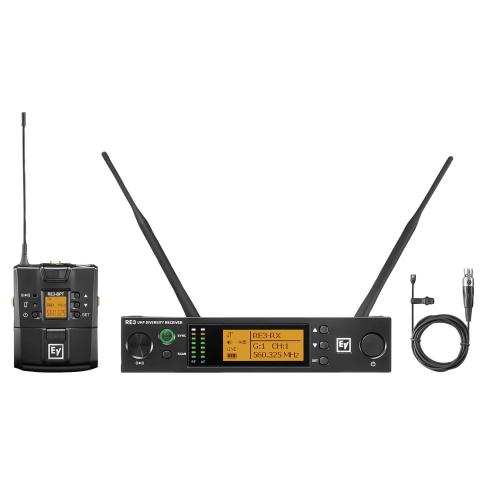

Electro-Voice RE3-BPOL UHF Wireless Bodypack Set Featuring OL3 Omnidirectional Lavalier Microphone (6M Band)
SKU #: RE3-BPOL-6M
$729.00
Reg.
In Stock - Almost Gone
Most orders placed by 3pm ET ship same day (business days)
Bodypack UHF wireless set featuring OL3 omnidirectional lavalier microphone for voice performance and presentations. The OL3 delivers an open and natural sound even when the user is turning their head side-to-side, and its low-profile design eliminates unsightly presence other larger sized lavaliers present.
Setup is quick and simple using the RE3 clear frequency scan and sync functions, and the radio link between the robust bodypack transmitter and diversity receiver delivers rock-solid system performance.
Setup is quick and simple using the RE3 clear frequency scan and sync functions, and the radio link between the robust bodypack transmitter and diversity receiver delivers rock-solid system performance.
Electro-Voice RE3-BPOL UHF Wireless Bodypack Set Features:
- Rack mountable 1/2 space receiver with mounting hardware.
- Robust metal handheld and bodypack transmitter bodies.
- Easy-to-read LDC displays.
- Frequency scanning for selecting open frequencies.
- Sync function links transmitter to receiver.
- Keylock function protects settings from unwanted changes.
- Diversity reception technology for trouble-free operation.
- Broad selection of transmitter microphone types maximize application diversity.
- Wide selection of tuning bandwidths to help compensate for changing global RF regulations.
- Frequencies independently adjustable in 25kHz steps.
- Eight groups of pre-coordinated frequencies with up to 22 coordinated channels per group.
- Simple multi-channel system setup.
- Transmitters powered by common AA cells.
- Selectable hi and low transmitter power in most global regions.
- Extensive selection of optional system accessories available.
Electro-Voice RE3-BPOL Product Specifications:
| Band Details | |
|---|---|
| Band name | 6M |
| Bandwidth limits | (MHz) 653 - 663 |
| Tuning bandwidth | 10 MHz |
| Selectable frequencies | 400 |
| Transmit output power (mW) | 10 and 20 |
| Coverage | Global |
| RE3-RX receiver | |
| Frequency Oscillation Mode: | Phase-locked loop (PLL) |
| Carrier Frequency Range: | 470 - 865 MHz (tuning bandwidth is band dependent) |
| Band Names Tuning Bandwidths and Carrier Frequency Ranges | 5L: 36 MHz (488-524 MHz) 5H: 36 MHz (560-596 MHz) 6M: 10 MHz (653-663 MHz) T: 3 MHz (803-806 MHz) 8M: (823-865 MHz) 8M is split into two segments: 9 MHz (823-832 MHz) 2 MHz (863-865 MHz) |
| Sync Frequency: | Ultrasonic 40 kHz |
| Diversity: | Antenna diversity |
| Bandwidth: | 36MHz |
| Signal/Noise Ratio: | >100dB(A) |
| Total Harmonic Distortion (Thd): | <0.6%@1kHz |
| Receiving Sensitivity: | -81dBm for -12dB SINAD |
| Frequency Response: | 63Hz~16kHz±2dB (BPT) 51Hz~16kHz±2dB (HHT) |
| Antenna Type: | Detachable 1/2 wave with BNC connector |
| Antenna Booster Power: | DC12 - 15V/100mA |
| Function Display By: | LCD |
| Contents Of Display: | Group, channel, frequency, antenna A/B, transmitter battery level, transmitter status (mute, live, or no sync), output level attenuation, AF indication, RF indication, key lock indicator. |
| Control Functions: | Power, scan, frequency, group, channel, squelch, TX sensitivity, TX attenuation, TX RF power, TX auto off, TX key lock, TX display info, TX sync configuration, RX output volume, RX output level, RX antenna booster power, RX key lock, RX display contrast, RX display brightness, RX system reset. |
| Sync Data Options: | Frequency, group, channel, sensitivity level, attenuation status, RF power, auto off status, key lock status, transmitter display (freq or Gp/Ch) |
| Audio Frequency Output Level: | 1/4" (6.3mm) Phone Jack：-10dBV XLR Jack: -4dBV (Line) & -24dBV (MIC) |
| Audio Frequency Output Impedance: | 240Ω (unbalanced) 1400Ω (balanced) |
| Squelch and noise muting: | Noise muting and tone code locking |
| Output Ports: | 1 x balanced XLRM jack 1 x unbalanced 1/4" TS (6.3mm) jack |
| Power Supply: | DC12~15V/500mA |
| Finish: | Black polyurethane paint |
| Dimensions: | Width: 8.27 inch (210mm) Height: (with feet attached) 1.85 inch (47mm) Height: (without feet attached) 1.73 inch (44mm) Depth: (including antenna jack) 6.89 inch (175mm) Depth: (not including antenna jack) 6.1 inch (155mm) |
| RE3-BPT bodypack transmitter | |
| Frequency Oscillation Mode: | Phase-locked loop (PLL) |
| Band Names Tuning Bandwidths and Carrier Frequency Ranges: | 5L: 36 MHz (488-524 MHz) 5H: 36 MHz (560-596 MHz) 6M: 10 MHz (653-663 MHz) T: 3 MHz (803-806 MHz) 8M: (823-865 MHz) 8M is split into two segments: 9 MHz (823-832 MHz) 2 MHz (863-865 MHz) |
| Sync Frequency: | Ultrasonic |
| RF Power Output: | Frequency band specific as shown below 5L (488-524MHz): Low 10mW / High 50mW 5H (560-596MHz): Low 10mW / High 50mW 6M (653-663MHz): Low 10mW / High 20mW T (803-806MHz): Low 10mW / High 50mW 8M (823-865MHz): 10mW |
| Display By: | LCD + LED |
| Function Controls: | Power, mute, group, channel, frequency, sensitivity adjustment, input level attenuation, RF power, auto off, key lock. |
| RF Stability: | <±10kHz@Fc |
| Modulation Frequency Shift: | Wideband FM ±48kHz deviation |
| Harmonic Radiation: | <-50dBc |
| Input Jack: | 4-pin mini jack |
| Battery: | 2 x AA alkaline battery or NiMH rechargeable battery |
| Charging contacts: | Yes |
| Dimensions (without antenna): | Height: 3.2 inch (81.5mm) Width: 2.54 inch (64.5mm) Depth: 0.98 inch (25mm) |
| RE3-OL3 omnidirectional lavalier | |
| Element Type: | Self-biased Condenser |
| Frequency Response: | 60Hz - 15 kHz |
| Polar Pattern: | Omnidirectional |
| Sensitivity: Open Circuit Voltage. 1 kHz: | 17.5mV/Pascal (-35 dBV/PA) |
| Maximum SPL: | 130dB SPL |
| Impedance: | 2200 ohms |
| Power Requirements: | 3-9 VDC |
| Polarity: | Positive pressure on diaphragm produces positive voltage at pin 2 relative to pin 1 |
| Electrical Contact Pinouts: | Pin #1 - Ground, Shield Pin #2 - Audio Pin #3 - Bias Voltage |
| Dimensions (Cable length) : | 57.1" [1450mm] |
| Dimensions (Head length) : | 0.36" [9.2mm] |
| Dimensions (Head diameter) : | 0.2" [5mm] |
| Microphone Connector: | 4-pin mini plug |
| Head Finish: | Non-reflecting Black |
| Material: | Brass, Steel wire cloth grille, Black flexible PVC cable |
Each RE3-BPOL Retail Box Includes:
(1) Electro-Voice OL3 Omnidirectional Lavalier Microphone(1) Electro-Voice RE3-BPT Bodypack Transmitter
(1) Electro-Voice RE3-RX Diversity Receiver
(2) Receiver antennas
(1) Universal power supply
(2) AA batteries
(1) Set of Receiver rack mounting hardware
(1) Owner's manual
(1) Documentation packet
(1) Declaration of conformity
