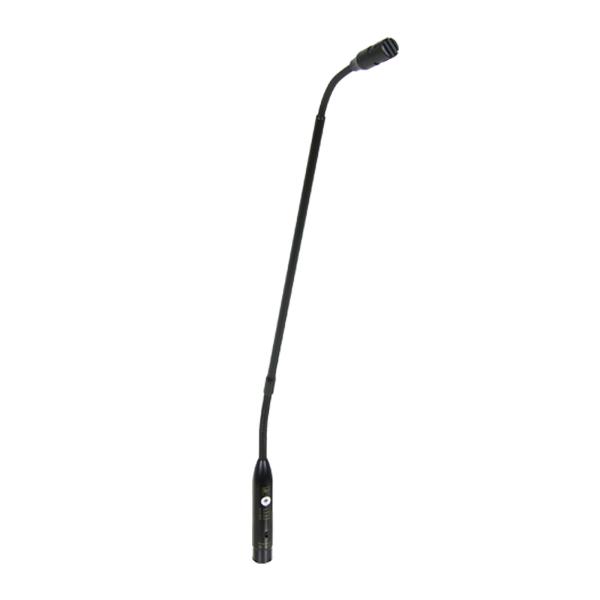

Electro Voice PC-18/XLR 18" Multi-pattern Gooseneck Microphone with XLR base
About This Product
Electro Voice PC-18/XLR 18" Multi-pattern Gooseneck Microphone with XLR baseThe PC-12 and PC-18 are highly-shielded from RFI/GSM multi-pattern miniature gooseneck podium microphones designed for sound reinforcement systems where sound quality and gain-before-feedback is of major importance. The multi-pattern versatility of the PolarChoice microphone makes it true “problem solver”. With three directional and one non-directional polar pattern available, the PolarChoice microphone is ideal for virtually any installation. Polar patterns can be easily changed, using a small flat bladed screwdriver with the front mounted rotary control on the external electronics module. The control switch has the following settings.
Altering the polar pattern does not change the on-axis sonic character of the microphone; therefore changes in equalizer settings are unnecessary. The PC- 12 and PC-18are acoustically designed for high-quality sound reinforcement and broadcast applications. The frequency response is tailored for wide-range sound reproduction with very natural sound pick-up for either distant or close-up use.
The PC-12 and PC-18 microphones can be mounted in several different ways. They can be mounted on any fixture that has a standard 5/8” X 27 microphone thread (such as a microphone stand), or they can be mounted to any flat surface using the included threaded flange. Additionally, they can be mounted using the included shock mount and adapter. The cable can be easily changed to exit from either the side, or through the bottom of the microphone.
The small, dual diameter gooseneck has two supple joints and a rigid center tube. The rigid tube prevents unsightly twisting of the gooseneck but permits the user to exactly position the microphone. The electronics module is terminated with a male XLR-type 3-pin connector that allows the microphone to be plugged directly into an existing panel-mount XLR receptacle. The electronics module can also be surface mounted using the included mounting clips. The housing is machined brass for ruggedness and superior EMI/RFI attenuation. The PC-12 and PC-18 are designed to be phantom-powered with a wide voltage range of 12-52V dc (DIN Standard 45 596).
- Dual Capsule Design with four (4) polar patterns: Omnidirectional, Cardioid, Supercardioid, and Hypercardioid.
- RF Shield provides superior RFI/GSM shielding.
- Thread or flange mount.
- Cable can exit from the side or through the bottom of the gooseneck.
- Switchable high pass filter.
- Consistent on-axis response.
- Non-reflecting black finish.
- Phantom powered back-electret condenser.
- Packaged with a two-piece shock mount.
Electro Voice PC-18/XLR Specifications
|Connector Type||3-pin XLR|
|Diameter (Max)||0.25" (6.4 mm)|
|Element||Back Electret Condenser|
|Finish||Semi-Gloss Camera Black|
|Impedance, Low-Z balanced||200 Ω|
|Open Circuit Voltage||5.6 mV/Pascal|
|Polar Pattern||Cardioid, Hypercardioid, Supercardioid, Omni|
|Height||11.77" (299 mm)|
|Weight Net||14.5 oz (411 g)|
The PC-18/XLR Box Includes:
(1) 18" Multi-pattern Gooseneck Microphone with XLR base
(1) Shock mount
