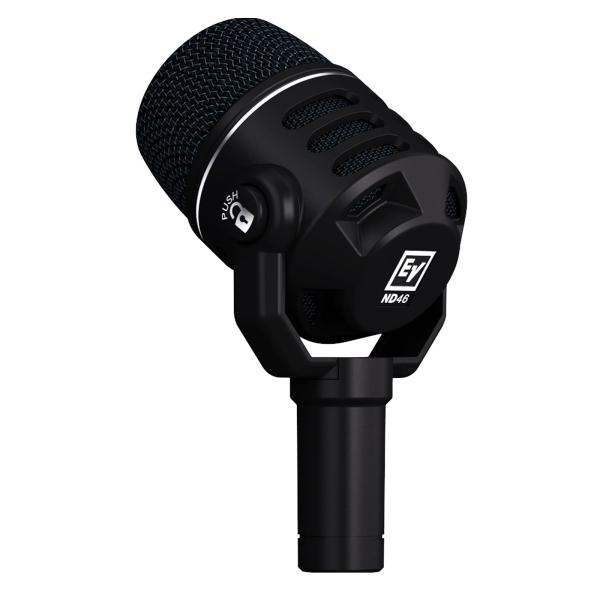

Electro-Voice ND46 Dynamic Supercardioid Instrument Microphone
About This Product
The ND46 is a robust, high-performance, large-diaphragm dynamic supercardioid instrument microphone. Designed for capturing a wide of variety instrument sounds, the ND46 capsule is precisely tuned to deliver a lively and balanced sound, as well as excellent isolation from the sound of other nearby instruments, and its unique locking pivoting head makes mic placement easy and precise.
Electro-Voice ND46 Dynamic Supercardioid Instrument Microphone Features:Excellent isolation.
With lively and balanced sound.
Large-diaphragm dynamic capsule.
Creates a rich and detailed frequency response
Easy mic placement with locking pivoting head.
Achieve ideal mic placement in virtually any situation by pushing a button, pivoting the head into position and releasing the button to lock.
Shock-mounted capsule minimizes handling noise.
Low frequency bumps and thumps won’t get into the PA.
Humbucking coil guards against line hum.
Use with confidence near speaker cabinets and EMF-generating equipment racks.
Memraflex grille resists denting.
Durable tight-mesh grilles withstand extraordinarily rough treatment.
ND SERIES: YOUR SOUND STARTS HEREThe successor to the renowned n/dym series, the new nd series expands the previous product offering with four vocal and four instrument models for live performance and studio applications. Each ND Series model is equipped with features that are unique to both its price point and its particular application – all designed to offer superior sound quality, acoustic control and robustness. At the heart of the new dynamic models is a new large-diaphragm capsule design which takes the technology of the original N/Dym capsule to new levels of sonic performance. Vocalists can select a specific ND Series model to provide optimal results according to singing style and stage volume. Sound engineers and musicians will benefit from an easy set-up due to innovative mechanical solutions that solve typical instrument mic placement challenges.
Electro-Voice ND46 Specifications
|Audio Frequency Response||70 – 18,000|
|Case Material||Die cast zinc|
|Connector Type||3-pin XLR|
|Diameter (Max)||2.2" (56 mm)|
|Finish||Black polyurethane paint|
|Impedance, Low-Z balanced||350 Ω|
|Maximum SPL||> 140 dB|
|Open Circuit Voltage||2.4 mV/Pascal|
|Shipping Weight||20.6 oz (584 g)|
|Height||5.67" (144.1 mm)|
|Weight Net||10.9 oz (309 g)|
(1) Electro-Voice ND46 Dynamic Supercardioid Instrument Microphone
