Electro-Voice Evolve 50 Portable Column Bluetooth PA System with Headphones & Vocal Microphone Package
- Clean, compact design - built to blend in Lightweight column speaker array with cable-free connection quickly secures pole to sub.
- Easy transport and setup Ergonomically designed handles on both the array and the sub to enhance portability. Angled interface gives user easy access to make adjustments and connections on input panel.
- Real PA performance Legendary EV audio quality via eight 3.5-inch full-range drivers and a 12-inch subwoofer, powered by a three-channel amp for high output. Cutting-edge components and tuning provide full-sized sound in a super-streamlined, plug-and-play format.
- Wide, even coverage Custom waveguides provide ultra-wide 120° horizontal coverage and array-formed 40° asymmetrical vertical pattern control. No energy is wasted - exceptional audience coverage and clarity from front to back.
Get fast answers on setup, compatibility, and system matching.
✔ No pressure. Just real help.
Your request was saved successfully.
Designed to deliver an uncompromising combination of light weight, low-profile looks, and superior Electro-Voice audio quality, the EVOLVE 50 sets a new performance standard for powered column systems. The perfect choice for DJs, mobile entertainers, bands, singer/songwriters, and any venue where high-output portable sound is needed - no other column system currently available sounds as good, looks as good, or is as easy to use. The smooth clarity of the EV sound in a sleek new form factor. The EVOLVE 50 Portable Column System is a three component loudspeaker system powered by a 1000 W Class-D amplifier and driven by Electro-Voice's QuickSmartDSP. The system consists of a 15 mm wooden, ported, powered subwoofer enclosure that houses a 12" subwoofer capable of a functional frequency output down to 37 Hz. The bi-directional aluminum pole's connection to the subwoofer is secured using a magnet, and the column array is gravity-held to the sub pole. The signal is internally routed to the components.
Eight 3.5" neodymium drivers in the column array coupled with the 12" subwoofer delivers up to 127 dB SPL. The eight composite waveguides control high frequencies with 120° of horizontal coverage, and 40° of asymmetrical (down-facing) vertical coverage to ensure suitable output for sitting and standing audiences. The sub pole and column array come prepackaged in a carrying bag. The processing engine allows for easy setup via four presets (Music, Live, Speech, and Club), three-band EQ, five user-programmable presets (Store and Recall settings), output delay, phantom power (+15V), visual monitoring of limiter status, input level control and meters, and master volume control to ensure optimal gain structure. The new Electro-Voice QuickSmart Mobile application utilizes Bluetooth Low Energy (BTLE) technology for the wireless configuration, control, and monitoring of up to six EVOLVE 50 systems simultaneously. High resolution Bluetooth audio streaming adds convenience for wireless music playback in breakout rooms, intermission, and musical accompaniment.
Electro-Voice Evolve 50 Portable Column PA System Features:
- Clean, compact design - built to blend in Lightweight column speaker array with cable-free connection quickly secures pole to sub.
- Easy transport and setup Ergonomically designed handles on both the array and the sub to enhance portability. Angled interface gives user easy access to make adjustments and connections on input panel.
- Real PA performance Legendary EV audio quality via eight 3.5-inch full-range drivers and a 12-inch subwoofer, powered by a three-channel amp for high output. Cutting-edge components and tuning provide full-sized sound in a super-streamlined, plug-and-play format.
- Wide, even coverage Custom waveguides provide ultra-wide 120° horizontal coverage and array-formed 40° asymmetrical vertical pattern control. No energy is wasted - exceptional audience coverage and clarity from front to back.
- High-quality Bluetooth audio For convenient streaming of background music or musical accompaniment direct from any mobile device.
- Wireless control and monitoring via the new Bluetooth QuickSmartMobile app Quickly configure up to six EVOLVE 50 systems simultaneously, and receive immediate notification during critical performance conditions.
Legendary vocal microphone, tuned to accentuate the warmth and clarity of lead and back-up vocals. The legendary Shure SM58 vocal microphone is designed for professional vocal use in live performance, sound reinforcement, and studio recording. Its tailored vocal response for sound is a world standard for singing or speech. A highly effective, built-in spherical filter minimizes wind and breath "pop" noise. A unidirectional (cardioid) pickup pattern isolates the main sound source while minimizing unwanted background noise. Rugged construction, a proven shock-mount system, and a steel mesh grille ensure that even with rough handling, the SM58 will perform consistently, outdoors or indoors.
SM58 Features:
- Frequency response tailored for vocals, with brightened midrange and bass rolloff.
- Uniform cardioid pickup pattern isolates the main sound source and minimizes background noise.
- Pneumatic shock-mount system cuts down handling noise.
- Effective, built-in spherical wind and pop filter.
- Supplied with break-resistant stand adapter which rotates 180 degrees.
- Legendary Shure quality, ruggedness and reliability.
- Cardioid (unidirectional) dynamic.
- Frequency response: 50 to 15,000 Hz.
- Replacement cartridge: R59.
Electro-Voice Evolve 50 Portable Column PA System Specifications:
| Available Color | Black |
| Connector Type | 2x XLR/TRS combo jack input 1x 3.5 mm Input 1x Stereo RCA input 1x Wireless Bluetooth® audio input 1x XLR THRU output 1x XLR MIX OUT output |
| Coverage (Nominal -6 dB) H | 120° |
| Coverage (Nominal -6 dB) V | 40° |
| Crossover Frequency | 200Hz |
| Depth | Sub: 18.5 in; 471mm Column: 6.9 in; 172mm Pole: 2.2 in; 55mm |
| Enclosure Material | sub – 15mm plywood, column – poly composite, pole – aluminum |
| Family | EVOLVE 50 |
| Frequency Range (-10 dB) | 37 Hz – 20k Hz |
| Frequency Response (-3 dB) | 43 Hz – 20 kHz |
| Grill | Steel with black powder coat |
| HF Power Handling | 500Watts |
| LF Power Handling | 500Watts |
| Max. SPL/1m (calc) | 127dB |
| Maximum SPL (1% THD) | Sub: 20.9 in; 230mm Column: 32.5 in; 825mm Pole: 36.6 in; 929dB |
| Power Consumption | 100 - 240 V AC, 50 - 60 Hz, 1.5 - 0.6A |
| Power Rating | 1000W |
| Powered or Passive | Powered |
| Shipping Weight | 69lbs (31.3kg) |
| Speaker Type | Full-Range |
| Weight Net | 57.87lbs (26.25kg) |
| Width | Sub: 13.6 in; 345mm Column: 4.0 in; 102mm Pole: 1.9 in; 48.5mm |
| Woofer Size | 12inch |
Shure SM58 Specifications
| Type | Dynamic (moving coil) |
| Frequency Response | 50 to 15.000 Hz |
| Polar Pattern | Unidirectional (cardioid), rotationally symmetrical about microphone axis, uniform with frequency |

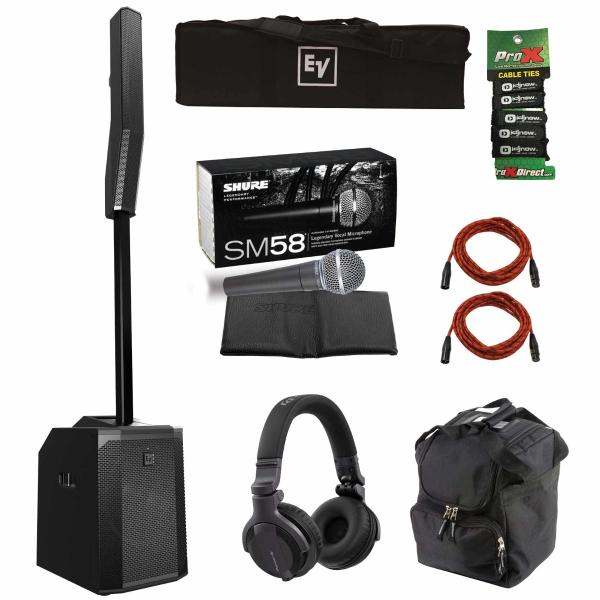

This Package Includes:
(1) Electro-Voice Evolve 50 Portable Column PA System with Bluetooth
(1) Power cord
(1) Sub pole
(1) Set of: Pioneer DJ HDJ-CUE1 DJ Headphones
(1) 1.2 m coiled cable (extended length 1.8 m)
(2) 20FT Red Braided Sure-Fit XLR Connecting Cables
(5) 8" Reusable Hook and Loop Cable Ties
(1) Arriba Cases IDJ115 Universal Protective Lighting / Utility Case
(1) Shure SM58 Vocal Microphone
(1) Swivel Stand Adapter
(1) Storage Bag
(1) Microphone Clip
This Package Includes:
(1) Electro-Voice Evolve System Parts: 1 Column Array, 1 Pole, 1 Carrying Case(1) Electro-Voice Evolve System Parts: 1 Column speaker sub US, black, 1 Power Cord US, 1 User Guide
(2) Clutch 20' Red Braided Sure-Fit XLR Female to XLR Male Microphone / Speaker Cable
(1) 5 Pack of 8" Reusable Hook & Loop Cable Tie Organizers
(1) Clutch IDJ115 Universal Protective Lighting / Utility Case
(1) Shure SM58 Vocal Microphone
(1) Pioneer DJ HDJ-CUE1 DJ Headphones
