Refined industrial design, professional-grade EV-engineered components and premium build quality – super-quick setup and single-trip portability in a system that looks as good as it sounds. All set the EVOLVE 30M apart from other systems at its price point. The full-range column array and its six lightweight 2.8" neodymium drivers provide ultra-wide 120° coverage via proprietary waveguides; array-formed 40° asymmetrical vertical coverage ensures acoustic output is directed towards both sitting and standing audience members. The array enclosure is constructed from a durable composite material and incorporates an ergonomic aluminum handle. It is acoustically optimized using four tuning ports hidden out of sight on the rear of the enclosure. A 10" subwoofer is housed in a 15 mm wood enclosure with a high-efficiency laminar-flow vent design, for enhanced rigidity and acoustical performance. The array and sub are connected via a two-piece symmetrical aluminum pole with internal wiring and magnetically assisted latching. An advanced Class-D amplifier provides up to 1000 W of power: 500 W to the subwoofer and 500 W to the column array. The speakers are protected by a white powder-coated 18-gauge steel grille. Combined, these elements generate a genuinely impressive performance-to-size ratio in an elegant form factor that looks as good as it sounds. QuickSmart DSP allows navigation of system parameters via an LCD with single-knob control, as well as multiple options for signal routing and inputs. Functions include four presets (Music, Live, Speech, Club), three-band system EQ (low, mid, high), seven-band graphic EQ (in Mixer mode), five user-programmable presets (Store and Recall settings), phantom power, visual monitoring of limiter status, input level control and meters, and a master volume control to optimize gain structure.
Developed in collaboration with the world-class audio electronics engineering team at EV's sibling brand Dynacord, the integrated fully featured, fully configurable digital mixer has multiple inputs (4x XLR/TRS combo mic/line inputs, 1x XLR/TRS combo stereo line input, 1x RCA, 1x 3.5 mm stereo, 1x Hi-Z instrument input) with professional-grade preamps and mix functions. The mixer can be controlled via the QuickSmart Mobile app or via the single-knob/LCD interface. Independent channel aux sends and Hi-Z and foot switch inputs are included for flexible system configuration, and a range of onboard studio-quality effects (30 presets, including chorus, delay, flange and reverb, via two FX channels) add myriad options for fine-tuning. Along with the built-in mixer, these help to reduce setup time -- and on-stage clutter -- by minimizing the need for external effects pedals and processors. The onboard effects can be controlled via the QuickSmart Mobile app or via the single-knob/LCD interface. High-resolution, low-latency Bluetooth streaming ensures excellent results for music playback or accompaniment.
Electro-Voice EVOLVE 30M Portable Column System Features:
- Mix your show like a pro.
- Optimize every detail of your sound.
- Room-filling coverage.
- Super-quick setup.
- Single-trip portability.
Electro-Voice EVOLVE 30M Specifications:
Frequency response (-3 dB)1: 51 Hz to 20 KHz
Frequency range (-10 dB)1: 45 Hz to 20 KHz
Maximum SPL2: 123 dB
Coverage (H x V): 120° x 40°
Amplifier rating: 1000 W
LF channel rating: 500 W
HF channel rating: 500 W
Crossover frequency: 200 Hz
Connectors:
4x XLR/TRS Combo Jack Line / Mic Input
1x 1/4" TRS HI-Z input
2x XLR/TRS Combo Jack for Stereo Line Input
1x Stereo RCA Input
1x 3.5 mm Stereo Input
1x Wireless Stereo Bluetooth Audio Input
1x 1/4" Foot Switch Input
1x XLR MIX OUT Output
1x XLR AUX OUT Output
Enclosure:
Sub: 15 mm plywood
Column: Composite
Pole: Aluminum
Grille: Steel with white powder coat
Dimensions (HxWxD):
Sub: 448 x 332 x 432mm (17.6" x 13.1" x 17")
Column: 620 x 95 x 157mm (24.4" x 3.7" x 6.2")
Pole (2 pcs): 600 x 48 x 55mm (23.6" x 1.9" x 2.2")
Net weight
Sub: 34.9 lb (15.8 kg)
Column: 6.0 lb (2.7 kg)
Pole (2 pcs): 3.1 lb (1.4 kg)
Bag for column and pole: 1.9 (0.85 kg)
Color: white
Shipping weight: 53.4 lb (24.2 kg)
Power consumption3: 100-240 V AC, 50-60 Hz, 1.5-0.6 A
1 - Half-space measurement using live DSP preset.
2 - Maximum SPL is measured at 1 m using broadband pink noise at maximum output.
3 - Current rating is 1/8 power.

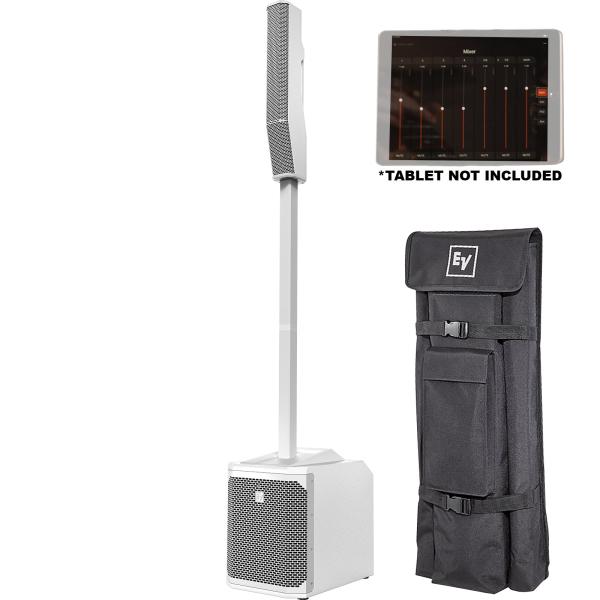

(1) Electro-Voice EVOLVE 30M Speaker Array (white)
(1) Electro-Voice EVOLVE 30M Two-Piece Pole Connector (white)
(1) Electro-Voice EVOLVE 30M Powered Subwoofer (white)
(1) Array and Pole Backpack Carry Case
