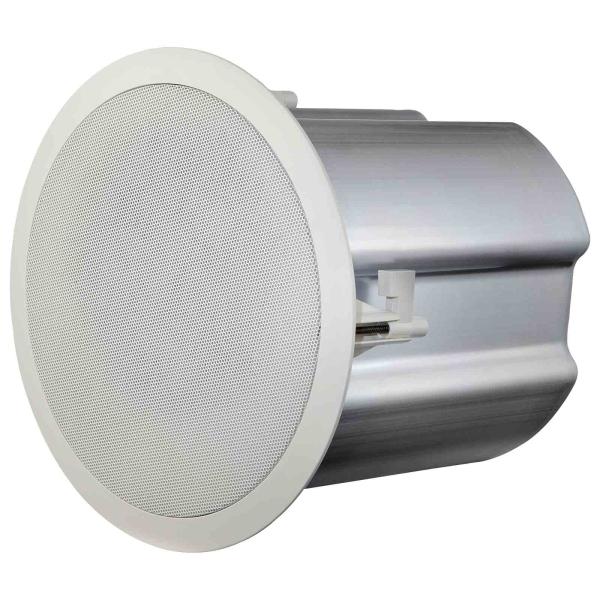

Electro-Voice EVID-PC6.2 6.5" 2-Way Ceiling Speakers (Pair)

SKU
EVID-PC6.2

$585.00

Item Backordered

Questions? Call 1-800-355-7746 or Chat below

Free Shipping
Best Price + Plus
Check In-Store Availability

Free Shipping on most orders with minimum purchase of $50 or more for a limited time.

Ground shipments only in the lower 48 contiguous United States.

Excludes oversized or overweight items such as oversized speakers, oversized cases, trussing and staging. Other exclusions include some fluids, some parts and special orders.

Any questions, please call 1-800-355-7746 during normal business hours.

Offer subject to change or termination without notice. Not responsible for typographical errors.

The lowest price is not always the best price. When you shop with us, you can always expect to get our BestPrice+Plus guaranteed.

Learn More

1 800 355 7746



I DJ NOW - Babylon, NY store (Pick Up In Store Only)
Mon - Sat 10am - 8pm
Sun 11am - 5:00pm
631 321 1700



I DJ NOW - Queens, NY Store (Pick Up In Store Only)
Mon - Fri 10am - 9pm
Sat 10am - 7pm
Sun 12 noon - 6pm
718 762 0100

The PC6.2 (6.5-inch two-way) is designed to be the most advanced ceiling speaker available today, with superior performance across every detail. Each self-contained unit features a dedicated compression driver for enhanced high-frequency performance and coverage control in comparison to current EVID ceiling speaker offerings. Simplified wiring and innovative new integrated mounting hardware allows for quicker installation into a wide range of ceiling cavities and construction formats.

The model adds increased power handling (100 W), higher output (113 dB / 114 dB), and wider coverage angles (120° / 105°) to the user-friendly installation and low-profile looks that contractors expect from EVID products, complimenting the range as a new, high-end option. Ideal for retail spaces, restaurants, theater and stadium concourses, shopping malls, and a wide range of applications where premium-quality distributed audio is required.

Electro-Voice EVID-PC6.2 6.5" Ceiling Speakers Features:

  • High-performance EV-engineered compression driver. Ultra-wide HF dispersion provides extremely even coverage through room.
  • High-excursion woofer provides dramatic low-end frequency extension. Reinforced steel back can provides rigid enclosure to minimize acoustic loss.
  • Four-point clamp mechanism and integrated mounting legs enable quick ceiling installation.
  • Detachable pass-thru Phoenix-style signal connections simplify installation wiring. Tap selector with 8Ω / 70 V / 100 V operation.
  • Fully reinforced ABS UL-rated baffle ensures long life. Fully compliant with EN 54 (pending), UL 1480, and 2043 standards.

Electro-Voice EVID-PC6.2 Product Specifications:
Frequency Range (-10 db)50 Hz - 20 kHz
Nominal Coverage (Conical)  100°
Power Handling200 W Program, 100 W Pink Noise
Sensitivity (SPL 1 W/1 m)87 dB
Max Calculated SPL107 dB Avg, 113 dB Peak
Impedance10 ohms
LF Transducer165 mm (6.5 in)
HF Transducer35 mm Compression Driver
Transformer Taps70V: 60W, 30W, 15W, 7.5W, 8 ohm
100V: 60W, 30W, 15W, 8 ohm
ConnectorsRemovable locking 4-pin (Phoenix)
2.5 mm (12 AWG) max wire size
EnclosureABS Plastic (UL94V-O) Baffle, steel
back can
GrilleColor matched steel grille with
fabric
Dimensions (H x Dia)260 mm x 280 mm (10.2 in x 11.0
in)
Cutout Size248 mm (9.76 in)
Net Weight7.0 kg (15.4 lb)
Shipping Weight
(pair)
16.83 kg (37.1 lb)
Support HardwareC Ring, Tile Bridge
ApprovalsUL1480, 2043; CE

Each EVID-PC6.2 Retail Box Includes:
(2) Electro-Voice EVID-PC6.2 6.5" 2-Way Ceiling Speakers
