Elation Professional Uni Bar 1 Channel DMX Dimmer

SKU
UNIBAR

$112.00
In Stock - Ships in 3-5 Days

Most orders placed by 2pm ET ship in only 3-5 days (business days only).

Free Shipping
Best Price + Plus
Check In-Store Availability

Free Shipping on most orders with minimum purchase of $50 or more for a limited time.

Ground shipments only in the lower 48 contiguous United States.

Excludes oversized or overweight items such as oversized speakers, oversized cases, trussing and staging. Other exclusions include some fluids, some parts and special orders.

Any questions, please call 1-800-355-7746 during normal business hours.

Offer subject to change or termination without notice. Not responsible for typographical errors.

The lowest price is not always the best price. When you shop with us, you can always expect to get our BestPrice+Plus guaranteed.

Learn More

1 800 355 7746



I DJ NOW - Babylon, NY store (Pick Up In Store Only)
Mon - Sat 10am - 8pm
Sun 11am - 5:00pm
631 321 1700



I DJ NOW - Queens, NY Store (Pick Up In Store Only)
Mon - Fri 10am - 9pm
Sat 10am - 7pm
Sun 12 noon - 6pm
718 762 0100

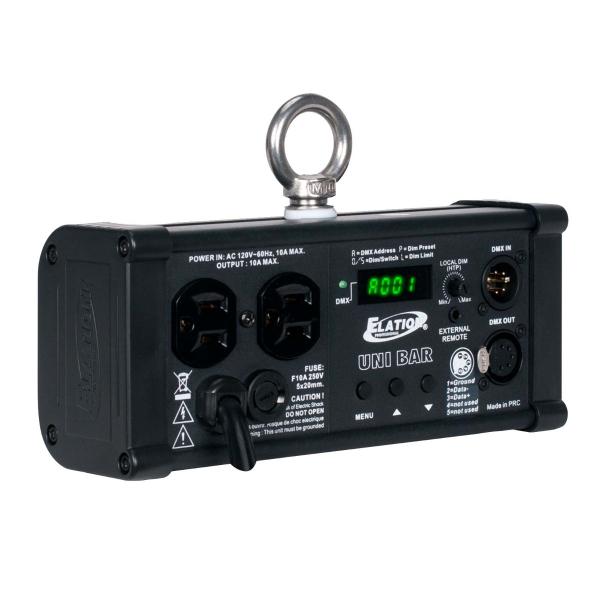

The UNI BAR is a compact single DMX channel dimmer featuring 10 amps of maximum channel output, dimmer or switch pack modes, dimmer preset and limit settings, local HTP dimmer control, input for an optional analog HTP dimmer controller, power failure memory, 3pin DMX in/out, (2) Edison 3-prong outputs, 3-button control panel and LCD display, and can be easily mounted using standard truss clamps or couplers.

Elation Uni Bar DMX Dimmer Features:

  • 5-pin XLR DMX IN/OUT ports.
  • Serves as a Switch or Dimmer Pack depending upon operating mode.
  • USITT Standard DMX512.
  • 4 digits Segment Display shows current activity and function state.
  • Power failure memory.
  • Dimmer Preset and Dimmer Limit settings.
  • 120VAC-60Hz power input.
  • 10 Amp maximum channel output.
  • 10 Amp 250V 5x20mm fuse.
  • Weight - 2.5 lbs.
  • Dimensions - 7.90 x 3.250 x 2.650.
  • On board HTP dimmer control.
  • Input for optional analog HTP dimmer controller.

Elation Professional UNI-BAR Specifications:
Control / Connections
1 DMX Channel
3-Button Control Panel
LCD Menu Display
On-board HTP Dimming Control Dial
Input for Optional Analog HTP Dimmer
(2) Edison 3-prong Outputs (10A Max Total Output)

Size / Weight
Length: 7.83" (200mm)
Width: 3.23" (82mm)
Vertical Height: 2.63" (66.8mm)
Weight: 2.4 lbs. (1.1 kg)

Electrical
AC 120V - 60Hz / 10A Max Total Output
5pin DMX In/Out
Please note: *Effective May 1, 2019 the DMX In/Out will be updated to 5pin. Units manufactured earlier have 3pin DMX IO.

The UNI BAR Retail Box Includes:
(1) Elation Uni Bar 1 Channel Dimmer
(1) User Manual
(1) Captive power cord
