Elation Professional Prisma Wash 25 Specifications:
Source
(38) 2W High Power UV Diode LEDs
20,000 Hour Average LED Life
Test lab conditions. May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
Photometric Data
25 Degree Wide Beam Angle
365nm True UV Peak Wavelength
Effects
High Speed Electronic Strobe
Variable Dimming Curve Modes
Construction
Rugged IP65 Rated Aluminum Housing
Manual Adjustable Tilt Position
Control
Multiple DMX Channel Modes
Onboard 4 Button Touch Control Panel
DMX-512 and RDM Protocol Support
Connections
IP Rated Power and Data In/Out Cables Attached
With Wired Digital Communication Network
Size / Weight
Length: 17.2" (437.9mm)
Width: 5.8" (148.4mm)
Vertical Height: 11.5" (292.2mm)
Weight: 18.5 lbs. (8.4 kg)
Electrical
AC100-240V 50-60Hz
T2A/250V
83W Max Power Consumption
Thermal
14°F to 113°F (-10°C to 45°C)
Air Cooled
Approvals / Ratings
CE | cETLus (pending) | IP65
Each Prisma Wash 25 Retail Box Includes:

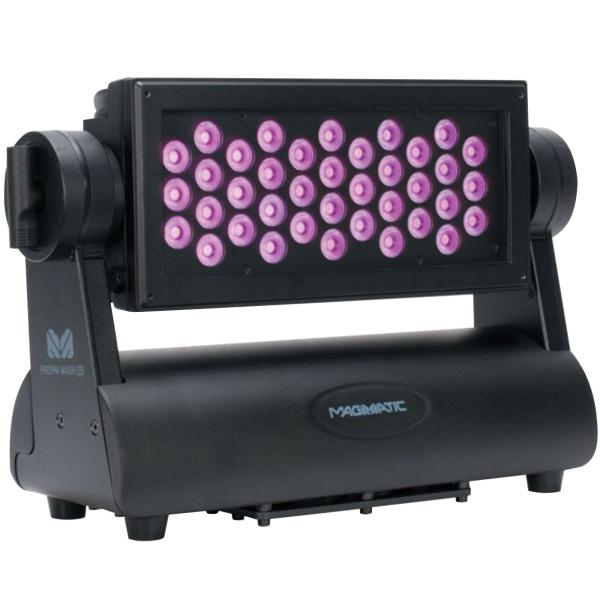

(1) Elation Professional Prisma Wash 25 IP65 Rated UV Wash Luminaire
(1) Mounting Bracket
(1) Locking Power Cable
