Be the first to review this product
Questions? Call 1-800-355-7746 or Chat below

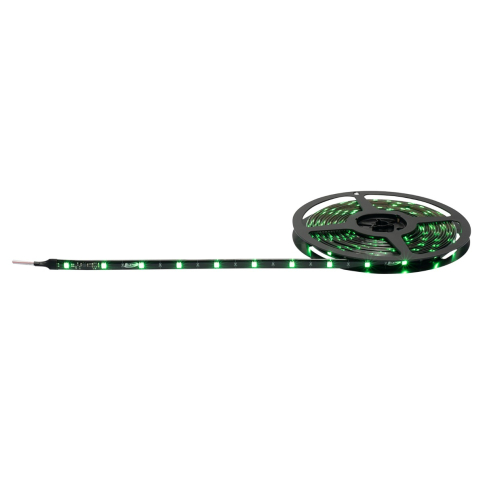

The PIXEL TAPE 16IP is an IP65, outdoor rated, 8.9 foot (2.7m) flexible LED pixel tape featuring (170) RGB SMD tri-color LED pixels (510 total DMX channels), producing over 1 billion color possibilities with a 120° viewing angle and is surface coated with an IP65 rated conformal coating. PIXEL TAPE 16IP can be powered and controlled using the PIXEL DRIVER 170, PIXEL DRIVER 1000IP or PIXEL DRIVER 4000 V2 control drivers.
Elation Professional PIXEL TAPE 16IP 8.9FT LED Tape Features:
- IP65 Outdoor Rated Flexible LED Pixel Tape.
- 8.9 foot (2.7m) Roll.
- (170) RGB Tri-Color SMD LED Pixels.
- (510) Total DMX Channels.
- Pixels Spaced on 0.62" (16mm) Centers.
- Cut Every 0.98" (25mm). Cut to shorten the length only. These cannot be extended..
- 120° Viewing Angle.
- 455 Lumens.
- Over 1 Billion Color Possibilities.
Elation Professional PIXEL TAPE 16IP Product Specifications:
Source:
(170 Pieces) APA102 / RGB
LED Spacing:
16mm Pixel Pitch
Photometric Output:
455 Lumens
Color:
Over 1 Billion Color Possibilities
Control:
(510) DMX Channels
ICS APA102 Protocol
Size/Weight:
Length: 107.2" (2,720mm) Roll
Width: 0.5" (12mm)
Vertical Height: 0.1" (3mm)
Weight: Under 1 lb. (0.2kg)
Electrical/Thermal:
DC 24V
35W Max Power Consumption
Approvals/Ratings:
CE
cETLus (PENDING)
IP65
Each PIXEL TAPE 16IP Retail Box Includes:
(1) Elation Professional PIXEL TAPE 16IP 8.9FT (2.7M) IP65 Outdoor Rated Flexible LED Pixel Tape
