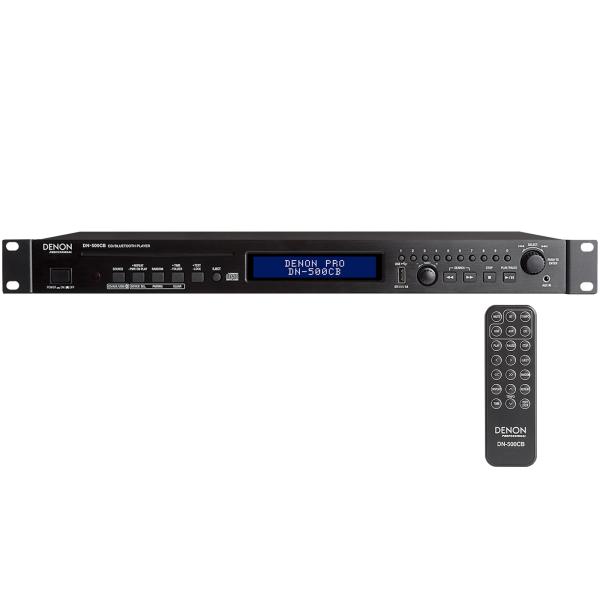

Denon Professional DN-500CB CD/Media Player with Bluetooth/USB/Aux Inputs and RS-232c
About This Product
The DN-500CB is a highly-versatile yet affordable media player that excels in applications where users bring their own devices for education, instruction or entertainment. The DN-500CB plays not only CD media but provides Bluetooth connectivity, USB playback and a 3.5mm AUX input for connecting virtually any other playback device.
Like all 500 series Denon Professional media players, the DN-500CB offers an RS-232c port on the rear for control via serial command and the serial command protocol guide is available for download.
Perfect for retail, education, and hotel/conference applications, this player offers features normally found on higher-priced players, such as Bluetooth Pairing, Front Panel Lock, Power On Play, direct access to tracks, memory of settings after loss of power, and balanced XLR output.
- Bluetooth 3.0 pairing to (8) devices.
- Slot-loading CD transport.
- USB host port for file playback.
- 10-button direct track access
- 3.5mm AUX input for playback from portable players.
- RS-232c control capable.
- Compact IR remote control included.
- Balanced (XLR) and unbalanced (RCA) outputs.
Denon Professional DN-500CB Specifications
Audio channels: 2 channels / stereo
Frequency response: 10 - 20,000 Hz, +/- 1.0dB
Dynamic range: > 85dB (10- 20,000 Hz A-weighted)
Signal to Noise ratio: > 90dB (1kHz, 0db, A-weighted)
Channel separation: > 80dB (1kHz, 0dB, A-weighted)
Total Harmonic Distortion (THD): < 0.01% (1kHz, 0dB, A-weighted)
Output class: Class C
Bluetooth version: 3.0
Support profile: A2DP, AVRCP (1.3/1.4)
Support codecs: SBC, MP3, AAC, aptX
XLR (balanced) 2.0Vrms
RCA (unbalanced) +4dBu
Infrared protocol / NEC format
Transmit output level: >200mVp-p
D-sub 9-pin female RS-232C
Mode: Full duplex
Baud rate: 9600/38400 b/s (selectable in the menu)
Start bit: 1bit
Stop bit: 1bit
Flow control: none
Audio File / SIGNAL
Sample rate: CD-DA, Audio file 44.1kHz
Word length: CD-DA, Audio file 16-bit
File format: Audio file WAV/MP3/AAC
Bit rate: MP3, AAC, CBR/VBR ST/Mono 32~320kps
ID3 tag: MP3 V1.x~2.4
File system: CD-DA (CD-TEXT), CD-ROM (ISO9660)
Disc: CD, CD-R
USB Storage Device
File system: FAT 16/32
Media type: Flash/ HDD
Operating temperature: 40° - 95° F (5° - 35° C)
Operating humidity: 25 ~ 85% non-condensing
Power requirements: 100-230 VAC
Power consumption: <30W
LCD Display: LCD 2 lines, 16 characters x 2 lines LCM display
Dimensions: 19" x 13.7" x 1.73" (483 x 347 x 44mm)
Weight: 6.4 lbs (2.92kg)
