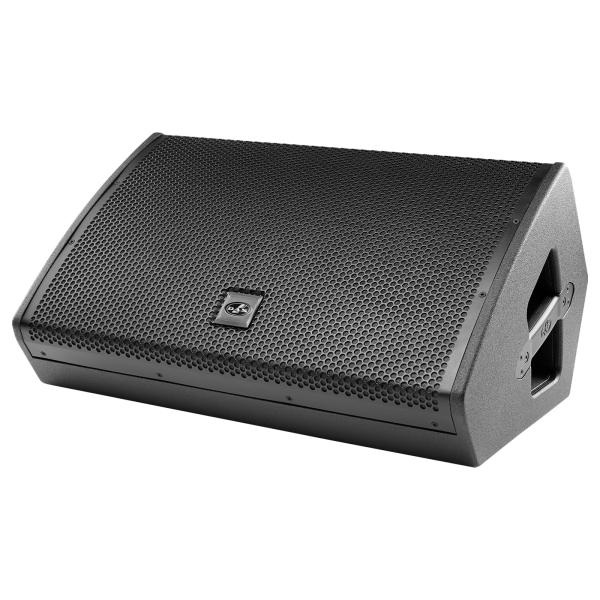

D.A.S. Audio EVENT-M210A Powered 500W 2x10" 2-Way Full-Range Stage Monitor
$2,799.99
Reg.
You save
In Stock | Free Shipping
Key Highlights
- Light-weight Class D amplifier topology.
- High-end DSP chipsets.
- Special monitor Easy-DSP Interface.
- Quality Neutrik connectors.
Get Expert Help Before You Buy
Get fast answers on setup, compatibility, and system matching.
✔ No pressure. Just real help.
Your request was saved successfully.
|
The EVENT-M210A is a three-way stage monitor in a double 10" "dual-band" configuration providing a wide frequency range. The DAS loudspeaker units have been teamed up with a single M-60 compression driver and purpose-designed injected aluminum high frequency waveguide. The EVENT-M210A wedge is powered by a three channel Class D amplifier which provides 360 Wpeak per channel. The amp's rear panel includes quality Neutrik XLR and powerCON connectors, status LEDS to facilitate setup.
D.A.S. Audio EVENT-M210A 2x10" 2-Way Stage Monitor Features:
- Light-weight Class D amplifier topology.
- High-end DSP chipsets.
- Special monitor Easy-DSP Interface.
- Quality Neutrik connectors.
- Top grade Birch cabinet construction.
- Durable ISO-flex finish.
- Proprietary injected aluminum HF waveguide.
- DAS M-60 compression driver.
D.A.S. Audio EVENT-M210A Product Specifications:
Performance
Frequency Range (-10 dB): 70 Hz - 20 kHz
Horizontal Coverage (-6 dB): 60º
Vertical Coverage: 20º Up/30º Down
Maximum Peak SPL at 1 m: 132 dB
Electronics and Connectors
Nominal Amplifier Power LF (continuous): 180 W
Nominal Amplifier Power LF (peak): 360 W
Nominal Amplifier Power MF (continuous): 180 W
Nominal Amplifier Power MF (peak): 360 W
Nominal Amplifier Power HF (continuous): 180 W
Nominal Amplifier Power HF (peak): 360 W
Input Type: Balanced
Input Impedance: 20 kohms
Input Sensitivity: 6.2 V (+18 dBu)
Audio Signal Input Connector: 1 x Female XLR
Audio Signal Loop Thru Connector: 1 x Male XLR
AC Input Connector: powerCon NAC3FCA
AC Output Connector: powerCON NAC3FCB
Current Draw 230 V / 115 V: -/3.0 A
Enclosure
Enclosure Construction: Birch Plywood
Enclosure Geometry: Trapezoidal
Rigging: Captive Rigging System
Finish: ISO-flex Paint
Color: Black
Dimensions ( H x W x D ): 340 x 650 x 460 mm / 13.4 x 25.6 x 18.1 in Net Weight: 23.5 kg ( 51.8 lb )
Components
LF Driver: 10MI4
MF Driver: 10MI4
HF Driver: M-60
Horn/Waveguide: BC-632
Shipping
Carton Dimensions ( H x W x D ): 740 x 370 x 490 mm / 9.1 x 14.6 x 19.3 in
Shipping Weight: 26.0 kg ( 57.3 lb )
