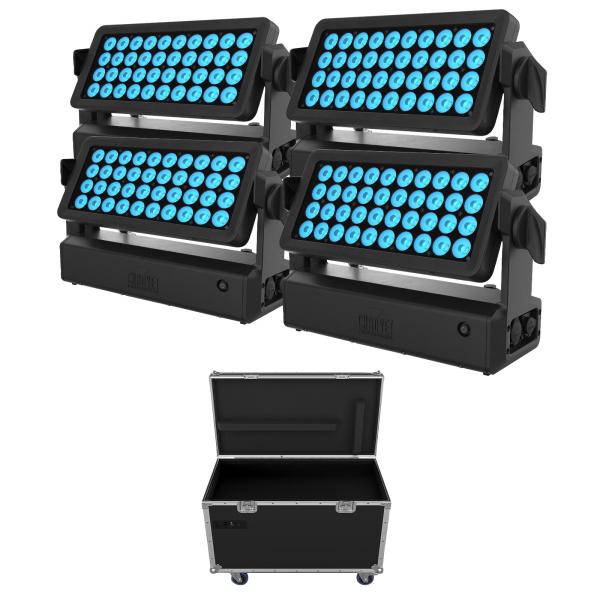

Chauvet Professional WELL PANEL X (4) Battery-Operated Black IP65-Rated Panel Fixtures with Charging Case
$7,700.00
Reg.
You save
In Stock
Key Highlights
- A fully realized kit of (4) battery operated black IP65-rated panel style fixtures, with (40) RGB warm white LEDs and a beam angle of 10.8 degrees.
- Charging case designed to charge with the lid closed to save warehouse space.
- Battery run time selections of 5, 8, 12, and 18 hours of operation at full output.
- Built-in battery charger allows fixture to operate while charging.
Get Expert Help Before You Buy
Get fast answers on setup, compatibility, and system matching.
✔ No pressure. Just real help.
Your request was saved successfully.
|
WELL PANEL X is the ideal addition to any rental package, offering an easily deployed and controlled fixture with high CRI that renders skin tones beautifully and make this panel an excellent key light. A higher quantity of smaller LEDs in this design ensures better color mixing than ever before. Up to 18 hours of battery life from a fixture engineered to meet the needs of lighting professionals working in environments where quick setup and flexibility are crucial. Roll into any production, indoors or out, with a fully-realized road-worthy four-unit kit with built-in charging capability.
Chauvet Professional WELL PANEL X (4) Black Panels Features:
- A fully realized kit of (4) battery operated black IP65-rated panel style fixtures, with (40) RGB warm white LEDs and a beam angle of 10.8 degrees.
- Charging case designed to charge with the lid closed to save warehouse space.
- Battery run time selections of 5, 8, 12, and 18 hours of operation at full output.
- Built-in battery charger allows fixture to operate while charging.
- Built-in IP65 5-pin DMX in/out allows for wired data.
- Built-in Seetronic IP65 PowerKon input/output.
- Control over DMX, CRMX, RDM, or RF.
- Easy connection to WELL CONNECT box and ConnectFX app.
- Removable split yoke for both hanging and floor standing.
- Pressure equalizing M12 Gore valve.
- Built-in safety cable attachment point.
- Easy-to-read OLED display.
- Built-in PWM adjustment.
- Included RF remote.
- Included 4 pack charging case.
Chauvet Professional WELL PANEL X (4) Product Specifications:
Optical
Light Source: 40 LEDs (RGBWW) 13.2 W, (556 mA), 50,000 hours life expectancy
Color Temperature (range): 2800 to 6500 K
Installed optics: 11.6°
Beam Angle: 21.4°
Field Angle: 31.7°
Lumens: 6865 lm (AC power)
Illuminance: 4575 lux @ 5 m (AC power)
Lumens: 6615 lm (OFF battery setting)
Illuminance: 4269 lux @ 5 m (OFF battery setting)
Lumens: 2886 lm (5-hour battery setting)
Illuminance: 1867 lux @ 5 m (5-hour battery setting)
Lumens: 1807 lm (8-hour battery setting)
Illuminance: 1194 lux @ 5 m (8-hour battery setting)
Lumens: 1189 lm (12-hour battery setting)
Illuminance: 769 lux @ 5 m (12-hour battery setting)
Lumens: 851 lm (18-hour battery setting)
Illuminance: 548 lux @ 5 m (18-hour battery setting)
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4000 Hz, 6,000 Hz, 25000
Light Source: 40 LEDs (RGBWW) 13.2 W, (556 mA), 50,000 hours life expectancy
Color Temperature (range): 2800 to 6500 K
Installed optics: 11.6°
Beam Angle: 21.4°
Field Angle: 31.7°
Lumens: 6865 lm (AC power)
Illuminance: 4575 lux @ 5 m (AC power)
Lumens: 6615 lm (OFF battery setting)
Illuminance: 4269 lux @ 5 m (OFF battery setting)
Lumens: 2886 lm (5-hour battery setting)
Illuminance: 1867 lux @ 5 m (5-hour battery setting)
Lumens: 1807 lm (8-hour battery setting)
Illuminance: 1194 lux @ 5 m (8-hour battery setting)
Lumens: 1189 lm (12-hour battery setting)
Illuminance: 769 lux @ 5 m (12-hour battery setting)
Lumens: 851 lm (18-hour battery setting)
Illuminance: 548 lux @ 5 m (18-hour battery setting)
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4000 Hz, 6,000 Hz, 25000
Dynamic Effects
Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 30 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Dim Curves: 4
Built-in Automated Programs: Yes
Customizable Programs: No
Recall Custom Programs: No
Construction/Physical
Dimensions: 17.17 x 5.31 x 10.24 in (436 x 135 x 260 mm)
Dimensions case: 36.4 x 20.7 x 21.5 in (925 x 525 x 545 mm)
Weight: 20.8 lb (9.43 kg)
Weight case: 184 lb (83.5 kg)
Exterior Color: Black
Housing Material: Aluminum diecast
Connections
Power Connection: Edison (local) plug to Seetronic Powerkon IP65
Power Input (fixture and charging case): Seetronic Powerkon IP65
Power Output (fixture and charging case): Seetronic Powerkon IP65
Data Connectors: 5-pin XLR
Cable Length (power): 5 ft (1.5 m)
Control
Control Protocol: RDM, CRMX, NFC, RF
DMX Channels: 5,8,9,12,16 channels
Modes/Personalities: 5 personalities (5Ch, 8Ch, 9Ch, 12 ch, 16 ch)
Wireless WDMX "G" Compatibility: G4S
Wireless Lumen Radio Compatibility: CRMX
Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Single unit:
Power Linking: 12 units @ 120 V; 21 units @ 208 V; 23 units @ 230 V
Power and Current: 120 W, 0.99 A @ 120 V, 60 Hz
Power and Current: 113 W, 0.56 A @ 208 V, 60 Hz
Power and Current: 115 W, .0.51 A @ 230 V, 50 Hz
4 pack case:
Power and Current: 550 W, 4.60A @ 120 V, 60 Hz
Power and Current: 536 W, 2.62 A @ 208 V, 60 Hz
Power and Current: 522 W, 2.31 A @ 230 V, 50 Hz
4 Pack Case Fuse - T6.3A. 250V
Battery
Battery type: Lithium Ion
Rechargeable: Yes
Battery Charge Time: 4 hours
Battery Life: 5, 8, 12,18 hours
Battery Power: 44.4 V, 6600 mAh
Certifications/Qualifications
CE, FCC, UKCA
IP Rating: IP65, temporary outdoor/wet use
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
Each WELL PANEL X (4) Retail Box Includes:
(4) Chauvet Professional WELL PANEL X (4) Battery-Operated Black IP65-Rated Panel Fixtures
(1) 4 Slot Charging Case
(1) Basic RF Controller
(4) Seetronic PowerKon IP 65 Power Cords
(4) Omega Brackets
(1) Quick Reference Guide
