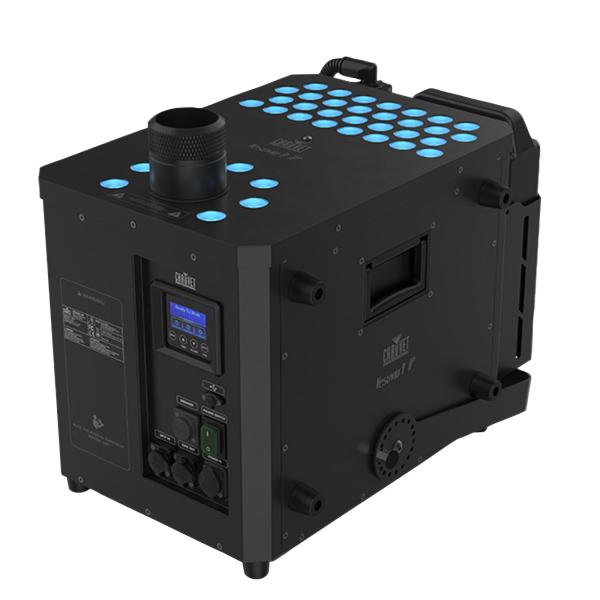

Chauvet Professional Vesuvio 4 IP IP53-Rated Tour-Grade Vertical Fog Machine
Expected June 2026
- Advanced Vertical Fogger - Creates powerful vertical fog bursts, delivering a CO₂-style effect without the need for gas or tanks.
- Outdoor-Ready Design - Rated for temporary outdoor use, providing reliable operation in wet or damp environments.
- High-Performance Output - Engineered for extreme throw distances of up to 50 ft (15 m), ensuring maximum visual impact.
- Dual-Zone RGBA Illumination - Independently controlled LED zones enable creative color effects and dynamic visuals.
Get fast answers on setup, compatibility, and system matching.
✔ No pressure. Just real help.
Your request was saved successfully.
Punch up high-impact illuminated fog bursts with an IP53-rated tour-grade unit that delivers both extreme vertical or horizontal throw and dual-zone RGBA control to create dynamic color effects bright enough for the largest outdoor festivals and indoor environments. Operate via its full-color onboard display, included wireless RF handheld remote, or DMX.
Remotely address and monitor via RDM. Vesuvio 4 IP ships in a durable custom road case built for easy transportation and the rigors of touring and rental. Use QDF Quick Dissipating Fluid for optimal performance. This highly versatile unit can run in three different positions: vertically, horizontally or from overhead with mounting brackets.
Chauvet Professional Vesuvio 4 IP Vertical Fog Machine Features:
- Advanced Vertical Fogger - Creates powerful vertical fog bursts, delivering a CO₂-style effect without the need for gas or tanks.
- Outdoor-Ready Design - Rated for temporary outdoor use, providing reliable operation in wet or damp environments.
- High-Performance Output - Engineered for extreme throw distances of up to 50 ft (15 m), ensuring maximum visual impact.
- Dual-Zone RGBA Illumination - Independently controlled LED zones enable creative color effects and dynamic visuals.
- Rugged Flight Case Included - Ships in a durable touring case for easy transport and protection during rental or live event use.
- Flexible Control Options - Operate via onboard full-color display, wireless RF handheld remote, or DMX integration.
- Integrated Drainage System - Simplifies post-use maintenance with quick water evacuation and easy cleanup.
- USB-C Port - Allows convenient software and firmware uploads for future updates.
- QDF (Quick Dissipating Fluid) Required - Ensures optimal performance and clean atmospheric effects.
Chauvet Professional Vesuvio 4 IP Product Specifications:
Optical
Light Source: 37 LEDs (RGBA)
Dynamic Effects
Dimmer: Electronic
Shutter/Strobe: Electronic
Low Fluid Shutdown: No
Standalone Color Mixing: No
Built-in Automated Programs: Yes/No
Construction / Physical
Dimensions: 20.79 x 13.82 x 17.32 in (528 x 351 x 440 mm)
Weight: 72.2 lb (32.75 kg)
Exterior Color: Black
Housing Material: Aluminum alloy, stainless steel
Tank Capacity: 1.4 gal (5.3 l)
Fluid Consumption: 22 ml/min
IP Rating: IP53
Heat-up Time: 13 min
Maximum Runtime: 45-second bursts
Connections
Power Input: Seetronic Powerkon IP65
Data Connectors: 5-pin IP65 XLR
Cable Length (power): 5 ft (1.5 m)
Firmware upgrades: USB type-C
Control
Control Protocol: [DMX, RDM, RF Remote]
DMX Channels: 14
Modes/Personalities: 1 personalities (14)
On-Board Control: Yes
Included Remote: yes
Electrical
Input Voltage: 208 VAC, 60 Hz
Power and Current: 2167 W, 10.43 A @ 208 V, 60 Hz
Breaker Size: 16 A, 250 V
Each Vesuvio 4 IP Retail Box Includes:
(1) Chauvet Professional Vesuvio 4 IP IP53-Rated Tour-Grade Vertical Fog Machine(1) Seetronic Powerkon Cable
(2) Omega Brackets
(1) RF Remote
