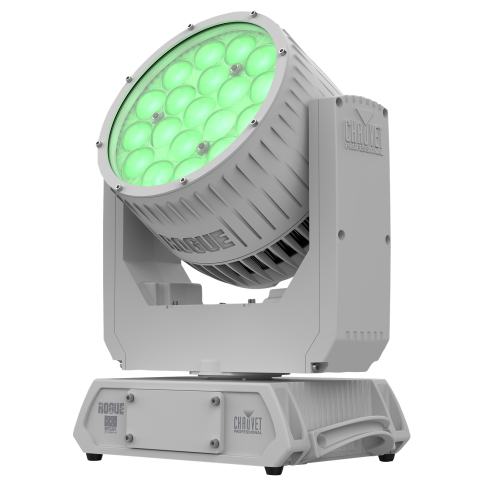

Chauvet Professional Rogue Outcast 2X Wash M IP66-Rated RGBW LED Yoke Wash Fixture
SKU #: ROGUEOUTCAST2XWASHM
$3,222.50
Reg.
In Stock - Ships in 2-3 Days
Most orders placed by 3pm ET ship in 2-3 business days
Only at IDJ NOW
Fast Shipping
Most products ship same-day
30-Day Price Protection
Find a lower price, you're covered.
8000+ Reviews
95%+5-star reviews>
30-Day Returns
Don't Like it? Return most items.
With its full aluminum construction and C5M marine-grade finish, Rogue Outcast 2X Wash M brings layers of external corrosion resistance in a rugged IP66 build engineered with the enhanced protection needed to perform extended duty in and near marine environments. 19 bright 25W RGBW LEDs occupy 5 pixel-mappable zones and produce excellent color blending and fades with 16-bit master and individual dimming. With a wide zoom range and fast pan/tilt movement, this versatile workhorse brings bold wash effects and durable performance to the most demanding environments, whether on tour, cruise ships, or lighting theme park and architectural exteriors.
Chauvet Professional Rogue Outcast 2X Wash M Wash Features:
- Fully featured IP66 RGBW LED yoke wash fixture with LED zone control, zoom, durable and lightweight aluminum body.
- C5M Paint application process and full aluminum construction for extended outdoor usage in and near marine environments.
- Included display cover for extended outdoor usage in and near marine environments.
- 16-bit dimming of master dimmer as well as individual colors for smooth control of fades.
- 19 RGBW LEDs, 25 W each.
- 5 zones of LED control for pixel mapping control.
- Color temperature control in select personalities (23CH, 55CH).
- Fast, smooth pan and tilt movement.
- RDM enabled for remote addressing and trouble shooting.
- Selectable PWM options for camera operation.
- Easy to read OLED display with simple, effective menu options.
- User selectable calibrated white for 7500 K at full output.
- 6 distinct dimming modes for advanced control.
- Easy to read OLED display with simple, effective menu options.
- User selectable calibrated white for 7500 K at full output.
- 6 distinct dimming modes for advanced control.
- Easy to read OLED display with simple, effective menu options.
- Simple and complex DMX channel profiles for programming versatility.
- USB-C port for uploading software.
Chauvet Professional Rogue Outcast 2X Wash M Product Specifications:
Optical
Light Source: 19 LEDs (quad-color RGBW) 25 W, (1.5 A), 50,000 hours life expectancy
Color Temperature (range): 2800 to 10000 K
Beam Angle: 7.9° to 35.3°
Field Angle: 11.6° to 50.5°
Cutoff Range: 18.5° to 63.7°
Zoom Range: 7.9° to 63.7°
Lumens - Source: n/a
Lumens - Output 5,371
Illuminance (7.9°): 7,632 lux @ 5 m
Illuminance (63.7°): 639 lux @ 5 m
Selectable PWM: 600Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz
Dynamic Effects
Pan and Tilt: 540°/270°
Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 270° tilt
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Strobe Rate: 0 to 20 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Curves: 6
Built-in Automated Programs: Yes
Customizable Programs: yes
Recall Custom Programs: yes
Construction/Physical
Dimensions: 11.92x8.58x14.1" (303x218x361mm)
Weight: 21.2 lb. (9.6 kg)
Exterior Color: White
Housing Material: Aluminum
Connections
Power Connection: Termination-ready bare-ended
Data input/output: Termination-ready bare-ended
Cable Length (power input): 5 ft (1.5 m)
Cable Length (signal in/out): 5 ft (1.5 m)
Control
Control Protocol: DMX, RDM
DMX Channels: 15, 17, 22, 23, 33, 54, 55 or 56
Modes/Personalities: 8 personalities (15CH, 17CH, 22CH,23CH, 33CH, 33CH MS, 54CH, 54CH MS, 55CH or 56CH)
Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 5 units @ 120 V; 9 units @ 208 V; 10 units @ 230 V
Power and Current: 291 W, 2.47 A @ 120 V, 60 Hz
Power and Current: 284 W, 1.41 A @ 208 V, 60 Hz
Power and Current: 282 W, 1.28 A @ 230 V, 50 Hz
Certifications/Qualifications
CE, MET, FCC, UKCA
IP Rating: IP66 temporary outdoor/wet use, with pressure equalizing M12 GORE valve
Each Rogue Outcast 2X Wash M Retail Box Includes:
(1) Chauvet Professional Rogue Outcast 2X Wash M IP66-Rated RGBW LED Yoke Wash Fixture
(2) Omega brackets with mounting hardware (2 Allen Key bolts)
(1) Display cover
