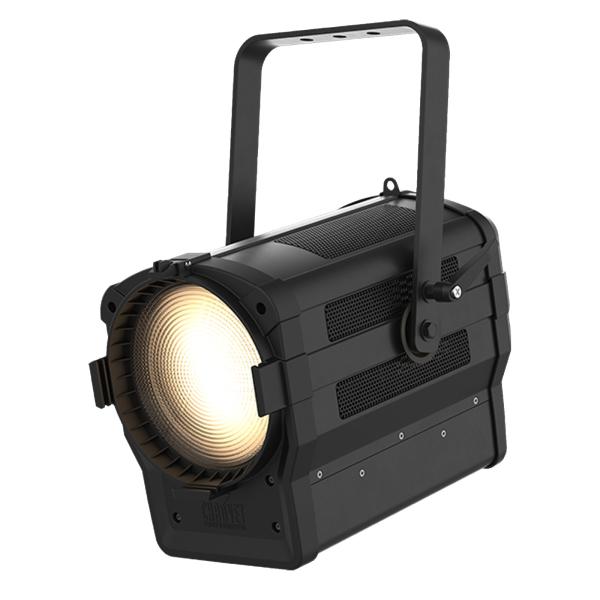

Chauvet Professional Ovation F-265WW Warm White Fresnel Fixture
$1,620.00
Reg.
You save
Selling Fast | Free Shipping
Key Highlights
- Warm white fresnel with output comparable to an 8", 2,000 W Fresnel.
- Soft and even field of light.
- 16-bit dimming resolution for smooth fades.
- Virtually silent operation for use in any situation.
Get Expert Help Before You Buy
Get fast answers on setup, compatibility, and system matching.
✔ No pressure. Just real help.
Your request was saved successfully.
|
Ovation F-265WW is a high-power Fresnel-style fixture utilizing our efficient warm white LED system to project a bright, beautifully soft, high CRI (95+) field of light ideal for theatres and television studios. A motorized zoom with a 16°- 68° field range and the light output can be controlled via DMX, onboard dials, RDM, adjustable PWM and an easy to navigate OLED full text display.
Chauvet Professional Ovation F-265WW Warm White Fresnel Features:
- Warm white fresnel with output comparable to an 8", 2,000 W Fresnel.
- Soft and even field of light.
- 16-bit dimming resolution for smooth fades.
- Virtually silent operation for use in any situation.
- Motorized zoom range between 16° to 68°, manually or via DMX.
Chauvet Professional Ovation F-265WW Product Specifications:
Optical
Light Source: 1 LED (WW) 230 W, (3.6 A), 50,000 hours life expectancy
Color Temperature (at full): 3142 K
CRI: 96
Beam Angle: 16° to 46°
Field Angle: 27° to 68°
Zoom Range: 16° to 68°
Lumens (27°): 9,283
Lumens (68°): 12,802
Illuminance (27°): 4,010 lux @ 5 m
Illuminance (68°): 1,162 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
Dynamic Effects
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Strobe Rate: 0 to 30 HzDim Modes: 4
Construction / Physical
Dimensions: 15.11 x 12.59 x 17.71 in (384 x 320 x 450 mm)
Weight: 17.2 lb (7.9 kg)
Exterior Color: Black
Housing Material: Aluminum alloy, Aluminum die-cast
Accessory Holder/Gel Frame Size: 7.5 in (191 mm)
Connections
Power Connection: Edison (Local) plug to Neutrik powerCON
Power Input: Neutrik powerCON
Power Output: Neutrik powerCON
Data Connectors: 3- and 5-pin XLR
Cable Length (power): 5 ft (1.5 m)
Control
Protocol(s): DMX, RDM
DMX Channels: 1, 2, 2 or 5
Modes/Personalities: 4 personalities (1, 2, 2, 5)
Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 7 units @ 120 V; 12 units @ 208 V; 13 units @ 230 V
Power and Current: 222 W, 1.84 A @ 120 V, 60 Hz
Power and Current: 230 W, 1.10 A @ 208 V, 60 Hz
Power and Current: 231 W, 1.01 A @ 230 V, 50 Hz
Certifications / Qualifications
CE, MET, FCC
IP Rating: IP20, dry location
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
Each Ovation F-265WW Retail Box Includes:
(1) Chauvet Professional Ovation F-265WW Warm White Fresnel Fixture
(1) Neutrik powerCON Power Cord
(1) Gel Frame
