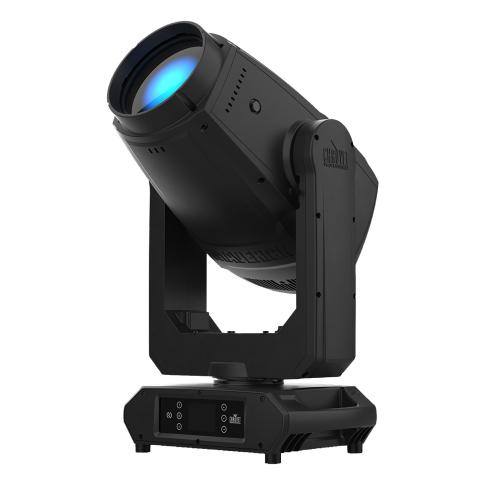

Chauvet Professional Maverick Storm 3 Profile LED Moving Head Fixture

Chauvet Professional Maverick Storm 3 Profile Compact IP65-Rated 620W LED Moving Head Profile Fixture

SKU #: MAVERICKSTORM3PROFIL
$10,192.50
Limited Supply - Contact Us

Questions? Call 1-800-355-7746 or Chat below

Same Day
Shipping
Best Deal
Guarantee
Authorized
Dealer
Real Gear
Experts

With an 18:1 zoom and a full armory of features, Maverick Storm 3 Profile is a compact IP65 moving profile with incredible reach. This lightweight powerhouse combines the latest Maverick series technical achievements with the durability and versatility to perform indoors and out. Harness over 30,000 lumens of output as you go from a narrow 3.4° beam to a wide 56.7° spot.

Freely create with its exquisitely sharp framing shutter system and a wheelhouse that includes variable CMY + CTO color mixing, color wheel with CRI and CTB filters, static and rotating gobo wheels, five-facet prism, iris, and frost. This Maverick weathers the storm and welcomes the sunshine with SunShield technology that comes on with complete protection of all internal optical components whenever the fixture powers down.

Chauvet Professional Maverick Storm 3 Profile Fixture Features:

  • Fully-featured, compact, and lightweight IP65 620 W LED yoke profile fixture including CMY + CTO color mixing, a 4-blade framing shutter system with rotation, a color wheel, 18:1 zoom, a 5-facet prism wheel, 1 rotating and 1 static gobo wheel, and integrated sun shield.
  • 16-bit dimming of master dimmer for smooth control of fades.
  • 65,000 PWM for use with the fastest frame cameras, but still maintains fantastic dimming.
  • Variable CMY + CTO color mixing system to create a wide pallet of colors.
  • CRI and CTB filters on color wheel for added flexibility.
  • One rotating, indexing, and interchangeable slot and lock gobo wheel.
  • One static gobo wheel.
  • DMX, WDMX, sACN, and Art-Net for full flexibility of control options.
  • RDM control over DMX for fixture reporting.
  • 3.4° to 56.7° (18:1) zoom range for variable beam sizes.
  • Iris, 5-facet prism and frost for beam control.
  • True 1 compatible power input.
  • Integrated sun shield for protecting the optical path from sunlight when the fixture is off.
  • Three setup menu presets and preset sync for cross loading to multiple like fixtures for easy shop setup.
  • USB slot for software uploads.
  • Battery backup display with auto-rotate depending on fixture orientation.
  • Failsafe Ethernet connectivity allows for data to pass even if fixture power is lost.
  • NFC for quick and easy fixture setup in the shop or in the field.

Chauvet Professional Maverick Storm 3 Profile Product Specifications:

Optical
Light Source: 1 LEDs (CW) 620 W, (4.6 A), 7500 K, 50,000 hours life expectancy
Color Temperature (at full): 7062 K
CRI: 72.3
CRI with CRI Filter: 90.2
Front Lens Diameter: 165 mm
Beam Angle: 3.4° to 51.6°
Field Angle: 3.7° to 55.8°
Cutoff Angle: 3.8° to 56.7°
Zoom Range: 3.4° to 56.7°
Lumens – Output: 33,077 lm
Illuminance (3.4°) 161,937 lux @ 5 m
Illuminance (56.7°) 1977 lux @ 5 m
PWM Frequency: 600Hz, 1500Hz, 2000Hz, 65,000Hz

Dynamic Effects
Pan and Tilt: 540°/270°
Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
Colors: 7 (including CRI and CTB filters) + white, split colors, continuous scroll at variable speeds
Colors: CMY wheel, CTO wheel
Gobos (1): 7 + open (glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
Gobos (2): 9 + open (glass), continuous scroll at variable speeds
Gobo Size: Gobo Wheel 1 (rotating): 25.5 mm (outside), 18 mm (image), 1.1 mm (max. thickness)
Framing Shutters: 4 Blades, each with dual axis movement, Full blackout.
Framing Shutter rotation: +/- 60° rotation.
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Focus: Motorized
Frost: Motorized
Iris: Motorized
Animation: Motorized
Prism: 5 Facets, motorized, rotating
Strobe Rate: 0 to 25 Hz
Move-in-Black: Yes
Dim Curves: 4

Construction / Physical
Dimensions: 15.27 x 10.55 x 29.21 in (388 x 268 x 742 mm)
Weight: 69 lb (31.3kg)
Exterior Color: Black
Housing Material: Aluminum diecast, High-impact flame-retardant polymer, Steel

Connections
Power Connection: Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Data Connectors: 5-pin IP rated XLR, Seetronic IP rated RJ45 Connectors in/out
Cable Length (power): 5 ft (1.5 m)

Control
Control Protocol: Art-Net, DMX, RDM, W-DMX, sACN
DMX Channels: 34 or 50
Art-Net Channels: 34 or 50
Modes/Personalities: 2 personalities (34, 50)

Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 878 W, 7.28 A @ 120 V, 60 Hz
Power and Current: 850 W, 4.14 A @ 208 V, 60 Hz
Power and Current: 841 W, 3.76 A @ 230 V, 50 Hz
Fuse: F15 AL, 250 V

Battery
Battery type: Lithium Ion
Rechargeable: Yes
Battery Charge Time: 5 hours
Battery Life: 12 hours

Certifications / Qualifications
CE, MET, FCC, CB, UKCA
IP Rating: IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve

Each Maverick Storm 3 Profile Retail Box Includes:

(1) Chauvet Professional Maverick Storm 3 Profile Compact IP65-Rated 620W LED Moving Head Profile Fixture
(1) Seetronic Powerkon IP65 power cord to Edison
(1) Omega bracket with mounting hardware
