Chauvet Professional IP Tester Portable Compact IP Testing Device for IP-Rated Products
Questions? Call 1-800-355-7746 or Chat below
Only at IDJ NOW
Fast Shipping
Most products ship same-day
30-Day Price Protection
Find a lower price, you're covered.
8000+ Reviews
95%+5-star reviews>
30-Day Returns
Don't Like it? Return most items.

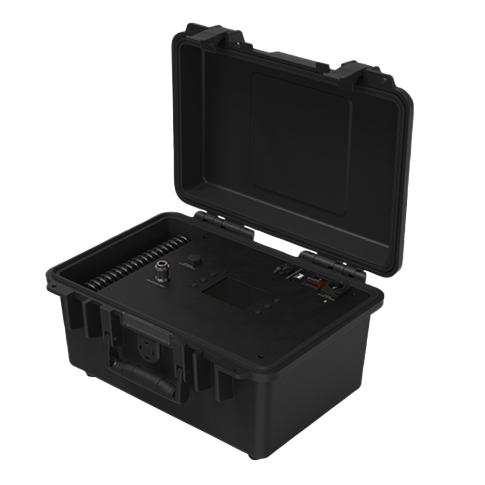

IP Tester is a portable tool capable of testing the vacuum and pressure parameters of IP rated products. It comes with pre-loaded testing personality files for CHAUVET Professional IP rated fixtures as well as offering the ability to easily create custom testing profiles. A built-in web server allows for easily connecting to PC computers for creating fixture profiles and storing information collected from tests. IP Tester is a useful tool for testing any CHAUVET Professional IP rated product fitted with Gore valves. Housed in a compact and impact resistant ABS plastic case designed with touring in mind and able to fit in tool and road cases.
Compatible with all IP rated products with Gore valves.
Chauvet Professional IP Tester Portable Compact Device Features:
- Portable, compact IP testing device capable of both vacuum and pressure testing parameters.
- Pre loaded testing personality files for CHAUVET Professional IP rated products.
- Easy to build custom testing profiles.
- Built in webserver to easy connection to PC computers for creating fixture profiles and storing information from tests.
- USB-C input for easy software upgrades and for storing fixture test data.
- USB-B port for easy connection to PC.
- Compact and impact resistant ABS plastic case is designed to fit in tool and road cases with touring in mind.
Chauvet Professional IP Tester Product Specifications:
Construction/Physical
Dimensions: 14.38 x 11 x 7.5 in (365.25 x 279.4 x 190.5 mm)
Weight: 9.4 lb (4.3 kg)
Exterior Color: Black
Housing Material: Injection molded case
Connections
Power Connection: Edison plug to Seetronic Powerkon
Power Input: Seetronic Powerkon
Quick-Release Air Hose Fitting
Air In/Out Vent
Data Connection: USB-B Port, USB-C
Cable Length (power): 5 ft (1.5 m)
Control
6 button LCD menu
Built in webserver for USB connection to PC
Remote information storage over USB-C input
Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 25 W, 0.335 A @ 120 V, 60 Hz
Power and Current: 25 W, 0.214 A @ 208 V, 60 Hz
Power and Current: 25 W, 0.205 A @ 230 V, 50 Hz
Each IP Tester Retail Box Includes:
(1) Chauvet Professional IP Tester Portable Compact IP Testing Device for IP-Rated Products
(1) Neutrik powerCON TRUE1 power cord
(1) USB Cable
(1) M12 Threaded Brass Nozzle with Push-to-Connector Fitting
(2) M12 threaded metal plugs
