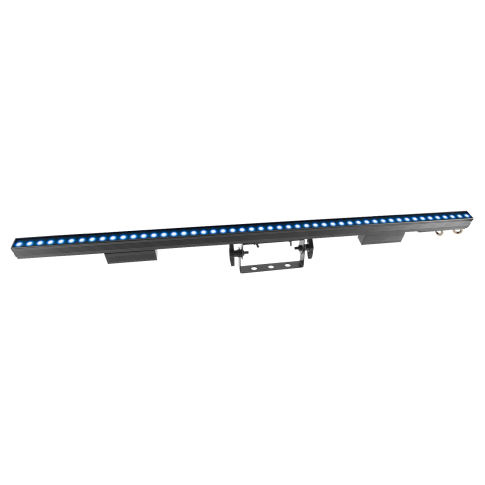

Epix Strip Tour is a pixel-mapping 1-meter LED strip, featuring 50 LEDs in a row and a 125° viewing angle. Power and control it through the Epix Drive 900 on Art-Net, Kling-Net, or sACN (streaming ACN).
Chauvet Professional Epix Strip Tour Pixel-Mapping 1-meter Strip Light Features:
- Pixel-mapping 1-meter 50 x 1 LED strip for showing video and/or motion graphics.
- Includes both black stealth filter (installed) for high contrast and white frosted filter (included) for high output.
- Versatile control options include Art-Net, Kling-Net, and sACN (streaming ACN) to support the touring, rental, and installation markets.
- Epix Drive 900 required for operation.
Chauvet Professional ÉPIX Strip Tour Specifications:
Optical:
Light Source: 50 LEDs (tri-color RGB) SMD 5050, 50,000 hours life expectancy
Viewing Angle: 125°
Illuminance (white frost filter installed): 1,094 NITS
Illuminance (black stealth filter installed): 267 NITS
Pixels: 50 x 1
Pixel Pitch: 20 mm
Refresh Rate: 4,700 Hz
Construction / Physical:
Dimensions: 39.37 x 4.72 x 1.18 in (1000 x 120 x 30 mm)
Weight: 3.44 lb (1.56 kg)
Exterior Color: Black
Housing Material: Aluminum
Connections:
Data Connectors: 4-pin XLR
Physical Linking: 18 inline Epix Strip Tour
Minimum required device linking cable size: 4 conductor (2 x 18 AWG, 2 x 20 AWG)
Total max. cable length (shielded cables) between Epix Drive 900 and last Epix Tour fixture: 210 ft (64 m)
Max. cable length (shielded cables) between Epix Drive 900 and first Epix Tour fixture: 65 ft (20 m)
Max. cable length (shielded cables) between Epix Tour fixtures: 60 ft (18 m)
Total max. cable length (unshielded cables) between Epix Drive 900 and last Epix Tour fixture: 300 ft (91 m)
Max. cable length (unshielded cables) between Epix Drive 900 and first Epix Tour fixture: 150 ft (45 m)
Max. cable length (unshielded cables) between Epix Tour fixtures: 100 ft (30 m)
Control:
Control Protocol: Art-Net, Kling-Net, sACN
Control Channels: 150
Electrical:
Power and Current: 17 W, 0.14 A @ 120 V, 60 Hz
Power and Current: 17 W, 0.08 A @ 208 V, 60 Hz
Power and Current: 17 W, 0.07 A @ 230 V, 50 Hz
Cable:
4PXLREXT16IN
4PXLREXT5FT
4PXLREXT50FT
Certifications / Qualifications:
CE, MET
IP Rating: IP20, dry location
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
Required Accessories:
ÉPIX Drive 900
Each ÉPIX Strip Tour Retail Box Includes:
(1) Chauvet Professional ÉPIX Strip Tour Pixel-Mapping 1-meter Strip Light with 50 LEDs
(1) White Frost Filter
(1) Warranty Card
(1) Quick Reference Guide
