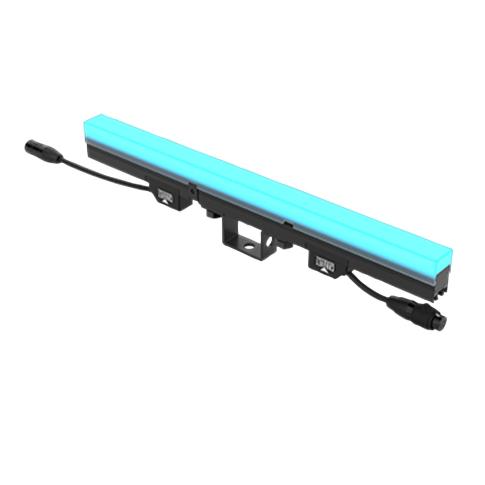

Chauvet Professional EPIX Line 10 IP S 0.5M RGB LED Outdoor-Rated Linear Pixel Strip
SKU #: EPIXL10IPS
$413.33
Reg.
Reserve Yours Now Expected May 2026
Questions? Call 1-800-355-7746 or Chat below
ÉPiX Line 10 IP S delivers vivid wide-gamut RGB color and a variety of looks and viewing angles with three included optical filters. Powered by the ÉPiX D4 IP Drive, this compact 0.5-meter outdoor-rated linear pixel strip offers native compatibility with the Epix Mapping System, industry-standard MVR file support, and automatic fixture detection, enabling fast streamlined video mapping and scalable configuration in the most demanding touring, rental, and permanent integration applications.
Chauvet Professional EPIX Line 10 IP S 0.5M Pixel Strip Features:
- Outdoor-Rated Pixel Strip - Linear LED strip with 10 mm pixel pitch delivers vivid, wide-gamut RGB color for dynamic architectural and entertainment applications.
- Flexible Connectivity & Optics - Standard 4-pin XLR connectors and three included optical filters support multiple use cases, including wide viewing angles.
- Compact & Serviceable Design - Slim form factor simplifies integration into tight spaces, while full repairability ensures long-term reliability and lower service costs.
- Streamlined Setup - Native compatibility with the Epix Mapping System and MVR support makes configuration fast and intuitive.
Chauvet Professional EPIX Line 10 IP S Product Specifications:
Optical
Light Source: 50 SMD 2727LEDs (tri-color RGB), 50,000 hours life expectancy
Beam Angle: 114.6°
Field Angle: 161.9°
Viewing Angle: 170°
Lumens: 581.2
Pixel Pitch: 10 mm
Display Refresh Rate: 4900 Hz
Dynamic Effects
Strobe Rate: 0 to 30 Hz
Construction / Physical
Dimensions (no filter): 19.685 x 1.161 x 2.862 in (500 x 29.5 x 72.7 mm)
Dimensions (square filter installed): 19.685 x 1.228 x 2.862 in (500 x 31.20 x 72.7 mm)
Dimensions (round filter installed): 19.685 x 1.969 x 2.862 in (500 x 50 x 72.7 mm)
Weight: 1.644 lb (0.746 kg)
Exterior Color: Black
Housing Material: Aluminum alloy, Aluminum die-cast, High-impact flame-retardant polymer, Stainless Steel
IP Rating: [IP65]
Connections
Power Supply (remote driver): Epix D4 IP
Physical Linking (Standard Mode): 20 inline EPIX Line 10 IP S
Physical Linking (Hi Power Mode): 13 inline EPIX Line 10 IP S
Data Connectors: 4-pin IP65 XLR
Minimum required device linking cable size: 4 conductor (2 x 14 AWG, 2 x 16 AWG)
Total max. cable length (shielded cables) between Epix D4 IP and last Epix Line: 210 ft (64 m)
Max. cable length (shielded cables) between Epix D4 IP and first Epix Line: 65 ft (20 m)
Max. cable length (shielded cables) between each Epix Line: 60 ft (18 m)
Total max. cable length (unshielded cables) between Epix D4 IP and last Epix Line: 300 ft (91 m)
Max. cable length (unshielded cables) between Epix D4 IP and first Epix Line: 150 ft (45 m)
Max. cable length (unshielded cables) between each Epix Line: 100 ft (30 m)
Control
Control Protocol: [Art-Net, sACN, Art-RDM, KLSTR, Epix Mapping System]
DMX Channels: 2, 18, Groups of 5/10/255/50, or 300
Video Refresh Rate: 60 Hz
Electrical
Input Voltage: 48VDC
Power and Current (STD): 11 W, .223 A @ 48 VDC
Power and Current (Hi-PWR): 16 W, .328 A @ 48 VDC
Certifications / Qualifications
Compliance: [CE, MET, FCC, ETL, UKCA, etc.]
Operating Temperature: -4 °F to 122 °F (-20 °C to 50 °C)
Each EPIX Line 10 IP S Retail Box Includes:
(1) Chauvet Professional EPIX Line 10 IP S 0.5M RGB LED Outdoor-Rated Linear Pixel Strip
(1) Interlocking Bracket
(1) Milky White Square Filter (Installed)
(1) Black Stealth Square Filter (Included)
(1) Milky White Round Filter (Included)
(1) Mounting Bracket (Installed)
