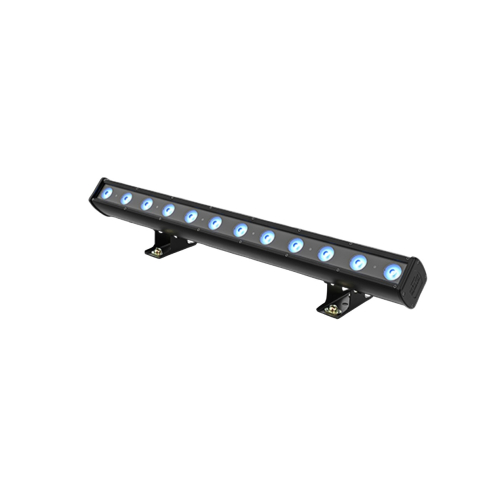

Chauvet Professional COLORdash Batten H12X IP RGBWAUV Linear Wash
Expected June 30, 2025
Only at IDJ NOW
Fast Shipping
Most products ship same-day
30-Day Price Protection
Find a lower price, you're covered.
8000+ Reviews
95%+5-star reviews>
30-Day Returns
Don't Like it? Return most items.
The rugged COLORdash Batten H12X IP RGBWAUV linear wash with 12 individually-controllable hex-colored LEDs efficiently delivers a broad palette of subtle to saturated color with beautiful precision, weighing in under 18 lbs while delivering over 4,700 lumens of output. Flawlessly smooth 16-bit fades with four selectable dimming curves. Flicker-free output with multiple PWM frequencies. Maintains an even pixel pitch for perfect pixel mapped looks when used in multiples. Setup is easy with hanging brackets that double as floor stands. With RDM to remotely choose its DMX personality and an OLED display to easily read its onboard menu, COLORdash Batten H12X IP offers convenient operation and excellent performance as an IP65-rated all-weather die-cast workhorse at home in any environment, in the rig or on the floor, live or on camera, indoor or out.
Chauvet Professional COLORdash Batten H12X IP Linear Wash Features:
- Rugged RGBWA-UV LED batten for events where indoor/outdoor flexibility is needed.
- At home in any weather conditions with IP rated power and DMX connections.
- Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera.
- RDM (Remote Device Management) for added flexibility.
- Selectable, smooth dimming curves to eliminate flicker and choppiness in fades.
- Easy to read OLED display with password protection and touchscreen interface.
- Advanced optics provide exceptional color mixing and high efficiency.
- Floor trunions with omega bracket for easy hanging.
Chauvet Professional COLORdash Batten H12X IP Product Specifications:
Optical
Light Source: 12 LEDs (RGBAW+UV) 10 W, (532 mA), 50,000 hours life expectancy
Color Temperature (at full): 11567 K
Beam Angle: 24.9°
Field Angle: 40.7°
Lumens: 4,796 lm
Illuminance (total): 881 lux @ 5 m
Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz
Dynamic Effects
Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 23 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes/No
Dim Modes: 4
Built-in Automated Programs: Yes
Construction/Physical
Dimensions: 39.4 x 8.129 x 3.78 in (1000 x 208 x 96 mm)
Weight:17.4 lb (8 kg)
Exterior Color: Black
Housing Material: Aluminum diecast
Connections
Power Connection: Edison (local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 3- and 5-pin XLR
Cable Length (power): 5 ft (1.5 m)
Control
Control Protocol: DMX, RDM
DMX Channels: 6, 8, 9, 13, 14, 42, 47 or 59
Modes/Personalities: 8 personalities (6, 8, 9, 13, 14, 42, 47, 59)
Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 9 units @ 120 V; 16 units @ 208 V; 17 units @ 230 V
Power and Current: 154 W, 1.284 A @ 120 V, 60 Hz
Power and Current: 151 W, 0.741 A @ 208 V, 60 Hz
Power and Current: 151 W, 0.667 A @ 230 V, 50 Hz
Certifications/Qualifications
CE, MET, UKCA, FCC
IP Rating: IP65, temporary outdoor/wet use
IP Rating: IP66, outdoor/wet, with pressure equalizing M12 GORE valve
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
Optional Accessories
Professional Clamps: CTC-50HC, CTC-50HCN
Seetronic Powercon power linking cables
5-pin IP DMX Cables
Each COLORdash Batten H12X IP Retail Box Includes:
(1) Chauvet Professional COLORdash Batten H12X IP RGBWAUV Linear Wash
(1) Neutrik powerCON TRUE1 power cord
(2) Omega Brackets
