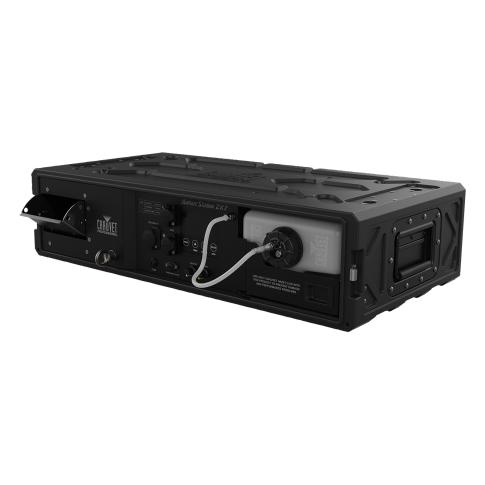

Chauvet Professional Amhaze Stadium 2X IP Compact Outdoor-Rated Haze Machine

SKU #: AMHAZESTADIUM2XIP
$2,402.50
In Stock - Ships in 2-3 Days

Most orders placed by 3pm ET ship in 2-3 business days

A rugged and compact outdoor-rated hazer in a self-contained flight case that stacks easily and conveniently packs all accessories in its removable cover. Amhaze Stadium 2X IP features a full-color display and precise manual or DMX adjustment of its variable haze output and blower speed. Floor mount or install into the rig with standard truss mounting brackets, and then direct haze flow with its adjustable output nozzle.

Amhaze Stadium 2X IP is built for the rigors of touring with a design that delivers reliability, longevity and easy serviceability. An innovative heater system produces continuous output and minimizes maintenance, while a peristaltic pump eliminates contact with fluid, removing its risk of corrosion. A USB-C port for easy software upgrades in the field completes this fully featured professional unit.

Chauvet Professional Amhaze Stadium 2X IP Haze Machine Features:

  • Compact, professional hazer gives high quality haze for live lighting applications.
  • Suitable for temporary outdoor/wet use.
  • Continuous operation produces haze for medium to large applications.
  • The innovative, fully serviceable heater assembly is designed for maximum efficiency and longevity.
  • Enjoy easy internal servicing and cleaning, ensuring optimal performance with minimal downtime.
  • Plus, the replaceable heater core extends the product's lifespan while reducing waste-delivering cost savings and sustainability without compromising on reliability.
  • The innovative heater design significantly reduces clogging, ensuring smooth operation, minimal maintenance, and enhanced reliability for long-term performance.
  • Adjustable vent louver for directional haze flow.
  • Ships in integrated, rugged flight case, suitable for rental/touring applications with removeable front cover with storage for accessories.
  • Designed for seamless compatibility, this unit utilizes Chauvet's standard 140D Omega Mounting Brackets, allowing for easy integration with standard mounting hardware for quick and secure installation.
  • Experience precise control with continuous variable haze output and adjustable blower speed, easily fine-tuned via DMX integration or intuitive manual knobs for seamless customization.

Chauvet Professional Amhaze Stadium 2X IP Product Specifications:

Dynamic Effects
Fan Performance: 164 cfm
Low Fluid Shutdown: Yes

Construction / Physical
Dimensions: 26 x 16 x 6.75 in (660 x 406 x 171.45 mm)
Weight: 48.8 lb (22.13 kg)
Exterior Color: Black
Housing Material: Aluminum alloy, Aluminum diecast, High-impact flame-retardant polymer, Steel
Tank Capacity: 1.32 gal (5 l)
Fluid Consumption: 9.5 ml/min
Maximum Runtime: 8 hrs

Connections
Power Connection: Edison (Local) plug to Seetronic Powerkon (powerCON Compatible)
Power Input: Seetronic Powerkon IP65
Data Connectors: 5-pin IP65 XLR
Cable Length (power): 5 ft (1.5 m)
Firmware upgrades: USB type-C

Control
Control Protocol: DMX, RDM
DMX Channels: 2
Modes/Personalities: 1 personality (2ch)
On-Board Control: Yes

Electrical
Input Voltage: 120 VAC, 60 Hz or 230 VAC, 50 Hz
Power and Current: 511 W, 4.26 A @ 120 V, 60 Hz
Power and Current: 722 W, 3.14 A @ 230 V, 50 Hz [1.2 A inrush]
Heat-up Time: 6 min
Fuse (120V model): F8 A, 250 V
Fuse (230V model): F5 A, 250 V

Certifications / Qualifications
CE, UKCA
IP Rating: IP65, temporary outdoor/wet use
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

Required Accessories
Accessories (required): Fog Fluid-PHF
Compatible Mounting Options: M12 / ½" hole with mounting brackets (clamps)

Each Amhaze Stadium 2X IP Retail Box Includes:

(1) Chauvet Professional Amhaze Stadium 2X IP Compact Outdoor-Rated Haze Machine
(1) Seetronic IP 65 Powerkon power cord
(2) Mounting brackets
(1) Output nozzle assembly
(1) Front Cover
