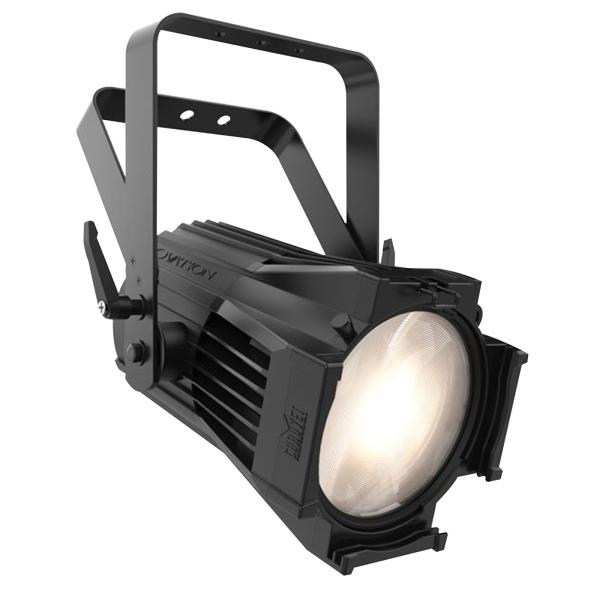

Chauvet Professional Ovation P-56VW Compact Variable White PAR-Style LED Lighting Fixture

SKU
OVATIONP56VW
$1,100.00
In Stock - Ships in 2-3 Days

Most orders placed by 2pm ET ship in 2-3 business days

Only at IDJNOW

Fast Shipping

Fast Shipping

Most products ship same-day

30-Day Price Protection

30-Day Price Protection

Find a lower price, you're covered.

5000+ Reviews

5000+ Reviews

90%+5-star reviews

30-Day Returns

30-Day Returns

Don't Like it? Return it.

Ovation P-56VW is a compact, bright, and virtually silent par that produces a homogenized, flat and even field of light from an advanced, single source LED. The unit features the same 6-color LED system found in the Ovation E-930VW ellipsoidal to produce nearly any temperature of white with high CRI and CQS. The par's Color Temperature can be even further adjusted for +/- green, making it ideal for TV studios and broadcasted events. Interchangeable lens plates are included for medium and wide beam angles and the unit accepts standard 7.5" beam shaping accessories. The virtually silent par also features extremely smooth 16-bit dimming, as well as RDM and PWM for set-up ease.

Chauvet Ovation P-56VW White PAR Light Features:

  • Variable white PAR-style fixture with homogenized single source of light.
  • Interchangeable lens plates included for medium and wide beam angles.
  • Soft, even field of light.
  • Quiet operation for use in any situation with fan speed control.
  • +/- Green adjustment via DMX or on-board control.
  • Independent color control over the 6-color engine when a splash of color is needed.
  • RDM and variable Pulse Width Modulation for setup ease.
  • Accepts standard 7.5" beam shaping accessories.
  • 16-bit dimming resolution for smooth fades.

Chauvet Ovation P-56VW Specifications:
Optical
Light Source: 48 LEDs (6 red, 6 green, 10 blue, 4 R. blue, 6 orange, 16 lime) 3 to 4 W, (1 A), 50,000 hours life expectancy
Color Temperature (range): 2800 to 8000 K
CRI: 92-93
Beam Angle (Medium lens): 21°
Beam Angle (Wide lens): 54°
Beam Angle (Wide lens w/ egg crate): 40°
Field Angle (Medium lens): 35°
Field Angle (Wide lens): 84°
Field Angle (Wide lens w/ egg crate): 66°
Lumens (Medium Lens): 3,967
Lumens (Wide Lens): 4,476
Illuminance (Medium Lens): 1220 lux @ 5 m

Illuminance (Wide Lens): 220 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4000 Hz, 6,000 Hz, 25000 Hz

Dynamic Effects
Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 29 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Built-in Automated Programs: Yes

Construction / Physical
Dimensions: 12.48 x 12.83 x 14 in (317 x 326 x 363 mm)
Weight: 12 lb (5.5 kg)
Exterior Color: Black
Accessory Holder/Gel Frame Size: 7.5 in (191 mm)

Connections
Power Connection: Edison (Local) plug to Neutrik powerCON
Data Connectors: 3- and 5-pin XLR
Cable Length (power): 5 ft (1.5 m)

Control
Control Protocol: DMX, RDM
DMX Channels: 3, 5, 6, 8, 11, 15 or 17
Modes/Personalities: 7 personalities (3, 5, 6, 8, 11, 15, 17)

Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 11 units @ 120 V; 18 units @ 208 V; 20 units @ 230 V
Power and Current: 150 W, 1.22 A @ 120 V, 60 Hz
Power and Current: 155 W, 0.70 A @ 208 V, 60 Hz
Power and Current: 158 W, 0.66 A @ 230 V, 50 Hz

Certifications / Qualifications
CE, MET
IP Rating: IP20, dry location
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

Each Ovation P-56VW Retail Box Includes:
(1) Chauvet Professional Ovation P-56VW Compact Variable White PAR-Style LED Lighting Fixture
(1) Neutrik powerCON power cord
(1) Gel frame (7.5 in/191 mm accessories)
(1) Wide Lens
(1) Medium Lens
