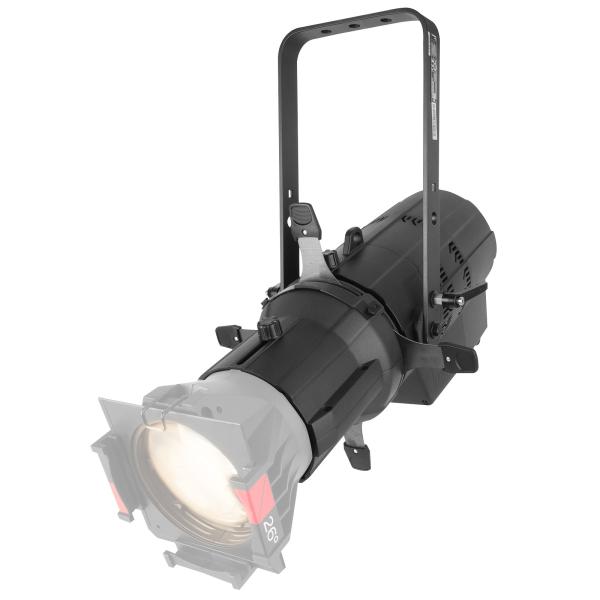

Chauvet Professional Ovation E-260WW IP IP65 Outdoor Rated Warm White Lighting Fixture

SKU
OVATIONE260WWIP
$1,800.00
In Stock - Ships in 2-3 Days

Most orders placed by 2pm ET ship in 2-3 business days

Only at IDJNOW

Fast Shipping

Fast Shipping

Most products ship same-day

30-Day Price Protection

30-Day Price Protection

Find a lower price, you're covered.

5000+ Reviews

5000+ Reviews

90%+5-star reviews

30-Day Returns

30-Day Returns

Don't Like it? Return it.

Ovation E-260WW IP takes the brilliant breakthrough concept of the Ovation E-260WW and places it outdoors. The standard shutter assembly and lenses lend familiarity and ease-of-use to this groundbreaking IP65-rated ERS-style fixture with an output surpassing that of 750 W HPL. This groundbreaking ellipsoidal also boasts extremely smooth dimming down to the very bottom of the curve as well as a flat and even field of light for superior gobo projection. Selectable PWM, RDM, and onboard dimming curves ease setup and programming.

Chauvet Ovation E-260WW IP White Lighting Fixture Features:

  • Warm white ERS-style fixture with output exceeding a tungsten 750 W source.
  • Fully IP65 rated for seasonal use indoors or out.
  • Use of our standard Ovation beam shaping shutters and lenses lends familiarity and ease of use to the fixture.
  • Ultra smooth 16-bit dimming, and 8-bit dimming curves to complement any lighting scheme.
  • Flat, even field of light for superior gobo projection.
  • RDM (Remote Device Management) for added flexibility.
  • Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera.

Chauvet Ovation E-260WW IP Specifications:
Optical
Light Source: 1 LED (WW) 230 W, (3.6 A), 3149 K, 50,000 hours life expectancy
Color Temperature (at full): 3149 K
CRI: 96
Beam Angle (w/14° lens): 11°
Beam Angle (w/19° lens): 13°
Beam Angle (w/26° lens): 16°
Beam Angle (w/36° lens): 20°
Beam Angle (w/50° lens): 28°
Beam Angle (w/15°–30° lens)(Narrow): 12°
Beam Angle (w/15°–30° lens)(Wide): 14°
Beam Angle (w/25°–50° lens)(Narrow): 21°
Beam Angle (w/25°–50° lens)(Wide): 22°
Field Angle (w/14° lens): 14°
Field Angle (w/19° lens): 18°
Field Angle (w/26° lens): 25°
Field Angle (w/36° lens): 34°
Field Angle (w/50° lens): 50°
Field Angle (w/15°–30° lens)(Narrow): 15°
Field Angle (w/15°–30° lens)(Wide): 29°
Field Angle (w/25°–50° lens)(Narrow): 26°
Field Angle (w/25°–50° lens)(Wide): 46°
Dimming Modes: 4
Lumens (w/19° lens): 7,587
Lumens (w/26° lens): 10,284
Lumens (w/36° lens): 10,121
Lumens (w/50° lens): 9,655
Illuminance (w/14° lens): 14,149 lux @ 5 m
Illuminance (w/19° lens): 9,256 lux @ 5 m
Illuminance (w/26° lens): 6,910 lux @ 5 m
Illuminance (w/36° lens): 4,053 lux @ 5 m
Illuminance (w/50° lens): 1,703 lux @ 5 m
Illuminance (w/15°–30° lens)(Narrow): 16,827 lux @ 5 m
Illuminance (w/15°–30° lens)(Wide): 10,626 lux @ 5 m
Illuminance (w/25°–50° lens)(Narrow): 7,210 lux @ 5 m
Illuminance (w/25°–50° lens)(Wide): 3,295 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

Dynamic Effects
Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 30 Hz
Color Temperature Presets: No
Dim Modes: 4
Built-in Automated Programs: Yes

Construction / Physical
Dimensions (fixture only): 19.49 x 11.14 x 18.42 in (495 x 342 x 506 mm)
Dimensions (w/14° lens extended): 28.7 x 11.14 x 18.42 in (790 x 342 x 506 mm)
Dimensions (w/26° lens extended): 23.5 x 13.46 x 19.92 in (597 x 342 x 506 mm)
Dimensions (w/15°–30° lens): 32.87 x 14.61 x 14.61 in (835 x 371 x 371 mm)
Dimensions (w/25°–50° lens): 27.17 x 14.61 x 14.61 in (690 x 371 x 371 mm)
Weight (fixture only): 20.2 (9.2 kg)
Weight (w/14° lens): 25.6 lb (11.6kg)
Weight (w/26° lens): 24.4 lb (11kg)
Weight (w/15°–30° lens): 34.2 lb (15.5kg)
Weight (w/25°–50° lens): 31.8 lb (14.4kg)
Exterior Color: Black
Gobo Size (Optional): "A": 100 mm (outside), 75 mm (image), 2.5 mm (max. thickness)
Gobo Size (Optional): "B": 86 mm (outside), 64.5 mm (image), 2.5 mm (max. thickness)
Accessory Holder/Gel Frame Size (14° lens): 7.5 in (191 mm)
Accessory Holder/Gel Frame Size (19°, 26°, 36°, and 50° lens): 6.25 in (159 mm)
Accessory Holder/Gel Frame Size (15°–30° lens): 7.5 in (191 mm)
Accessory Holder/Gel Frame Size (25°–50° lens): 7.5 in (191 mm)

Connections
Power Connection: Edison (local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 5-pin IP65 XLR
Cable Length (power): 5 ft (1.5 m)

Control
Control Protocol: DMX, RDM
DMX Channels: 2, 3, 4 or 7
Modes/Personalities: 4 personalities (2, 3, 4, 7)

Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 7 units @ 120 V; 12 units @ 208 V; 13 units @ 230 V
Power and Current: 221 W, 1.85A @ 120 V, 60 Hz
Power and Current: 215 W, 1.11 A @ 208 V, 60 Hz
Power and Current: 213 W, 1.01 A @ 230 V, 50 Hz

Certifications / Qualifications
CE, MET
IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE valve

Required Accessories
Lens Tube: 19°, 26°, 36°, 50°

Each Ovation E-260WW IP Retail Box Includes:
(1) Chauvet Professional Ovation E-260WW IP IP65 Outdoor Rated Warm White Lighting Fixture
(1) Seetronic Powerkon IP65 power cord
Please note: lens tube is not included but is required to operate the light. Lens tubes are sold separately.
