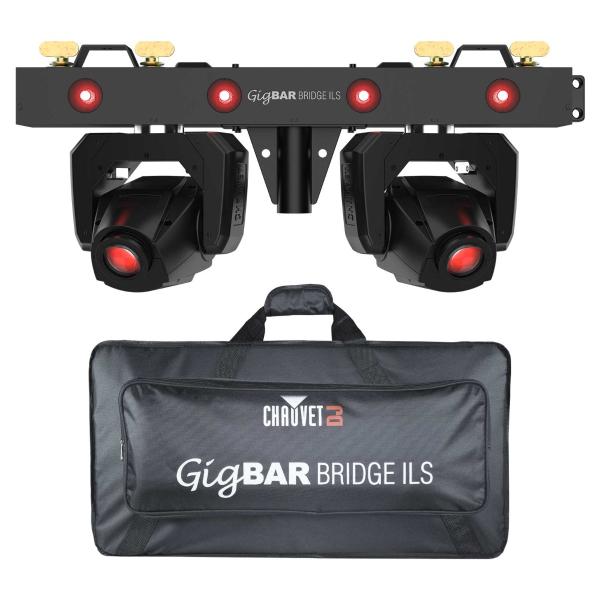

Chauvet DJ GigBAR Bridge ILS 2-in-1 Lighting System with Movers & Washes
$999.99
Reg.
You save
In Stock | Free Shipping
Key Highlights
- 2-in-1 lighting system that includes moving heads and washes pre-mounted on a single bar.
- Quickly and securely connect multiple fixtures with the built-in locking system.
- Built-in D-Fi transceiver communicates DMX or ILS signals wirelessly.
- Safely mounts onto truss or mobile tripods using the removable bracket.
Get Expert Help Before You Buy
Get fast answers on setup, compatibility, and system matching.
✔ No pressure. Just real help.
Your request was saved successfully.
|
Complete, all-in-one lighting system with movers and wash lights.
Chauvet DJ GigBAR Bridge ILS 2-in-1 Lighting System Features:
- 2-in-1 lighting system that includes moving heads and washes pre-mounted on a single bar.
- Quickly and securely connect multiple fixtures with the built-in locking system.
- Built-in D-Fi transceiver communicates DMX or ILS signals wirelessly.
- Safely mounts onto truss or mobile tripods using the removable bracket.
- Easy navigation and access all functions directly from the full-color LCD display.
- Powerful moving heads with separate color and gobo wheels allow for creative programming.
- Totem Mode keeps the moving heads focused on the dance floor.
- Save time running cables and extension cords by power linking multiple units.
- ILS compatibility for use in the ILS ecosystem.
Chauvet DJ GigBAR Bridge ILS Product Specifications:
DMX Channels: 3, 16 or 46
DMX Connectors: 3-pin XLR
Pan and Tilt: 270°/540°
Colors (moving head): 9 + open, split colors, continuous scroll at variable speeds
Gobos (moving head): 9 + open, continuous scroll at variable speeds
Light Source (moving head): 1 LED (cool white) 40W (3A), 50,000 hours life expectancy
Light Source (wash): 4 LEDs (hex-color RGBAW + UV) 10W (1.3 A), 50,000 hours life expectancy.
Strobe Rate: 0 to 20Hz
Operating Frequency: 2.4 GHZ
Beam Angle (moving head): 16°
Beam Angle (wash): 22°
Field Angle (wash): 38°
Illuminance (moving head): 6,594 Lux @ 2 m (per head)
Illuminance (wash): 375 lux @ 2 m (per section)
Power Linking: 8 units @ 120 V; 13 units @ 230 V
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 191 W, 1.5 A @ 120 VAC, 60Hz
Power and Current: 175 W, 1 A @ 230 VAC, 50Hz
Fits Tripod Sizes: 1.5 in (37.4 mm)
Max Unobstructed Distance (D-Fi): 600 ft (183 m)
Approvals: CE, RoHS, FCC
Weight: 18.6 lbs (8.4 kg)
Size: 26 x 2.8 x 12 in (660 x 71 x 305 mm)
Optional Controllers: RF, Footswitch, ILS Command
Each GigBAR Bridge ILS Retail Box Includes:
(1) Chauvet DJ GigBAR Bridge ILS 2-in-1 Lighting System with Movers & Washes
(1) Power Cord
(2) Hanging Brackets
(1) Carry Bag
(1) Quick Reference Guide
