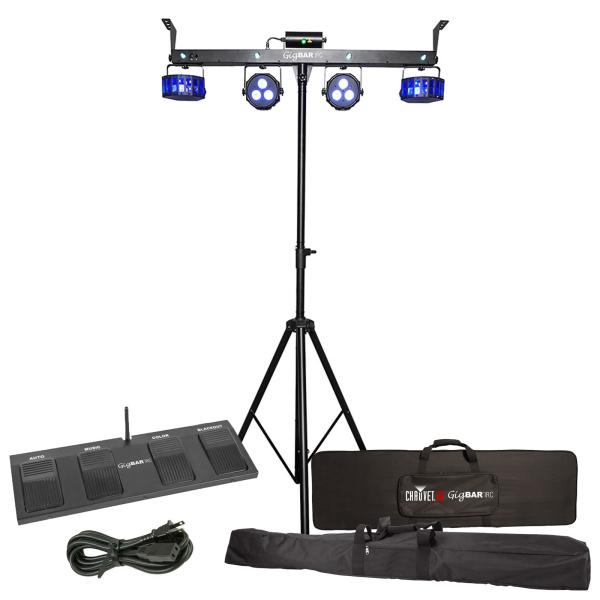

Chauvet DJ GigBar IRC 4-in-1 Complete Effect Light System
About This Product
Chauvet DJ GigBAR IRC
Music Inc. Editor’s Choice Award Winner, the Chauvet DJ GigBAR IRC combines 4 essential lighting fixtures mounted onto a single control bar. The 4-in-1 GigBAR IRC maximizes convenience and ease of set-up and take-down for mobile entertainers who want to create a dynamic lighting experience for any event. The system includes a pair of LED Derby-style effect lights, a pair of LED pars, a laser and a strobe effect. Get in and out quickly with the included tripod, footswitch controller and carry bags. The GigBAR IRC features phenomenal built-in automated and sound-activated programs that include all 4 effects to make one complete show. Easily control the GigBAR IRC from the display, IRC-6 remote control, wireless footswitch or DMX to take your gig to a higher level. Save time running cables and extension cords by power linking multiple units.
GigBAR IRC Features:
- 4-in-1 light that includes LED derbies, LED Pars, a laser & strobe effect.
- Easy set & great coverage.
- Get in & get out quickly with the included tripod, wireless footswitch & carry bags.
- 4 high-power, LED strobe lights create exciting chase & slow motion effects.
- Adjustable red & green laser scatters hundreds of bright dots & beams in all the right directions.
- Derbies project 42 red, green, & blue rotating beams from high-power LEDs.
- Phenomenal built-in automated & sound-activated programs that include all 4 effects to make one complete show.
- Easily control from the display, IRC-6 (Sold separately), wireless footswitch (Included) or DMX to take your gig to a higher level.
- Master/slave multiple units under the control of a single IRC-6 (Sold separately) or wireless footswitch (Included).
- Save time running cables & extension cords by power linking multiple units.
Chauvet DJ GigBar IRC Specifications
- DMX Channels: 3, 9 or 20
- DMX Connectors: 3-pin XLR
- Light Source (Pars): 6 LEDs (tri-color RGB) 2.5 W (956 mA), 50,000 hours life expectancy
- Light Source (strobe): 4 LEDs (white) 1 W (281 mA), 50,000 hours life expectancy
- Light Source (derby): 6 LEDs (2 red, 2 green, 2 blue) 6 W (1.7 A), 50,000 hours life expectancy
- Light Source: 650 nm/100 mW (red) laser diode, 532 nm/30 mW (green) laser diode
- Strobe Rate (strobe): 0 to 18 Hz
- Stand Height: 4.8 to 8.3 ft (1.5 to 2.5 m)
- Tripod Leg Width: 3.9 ft (1.2 m)
- Beam Angle (Pars): 13°
- Beam Angle (strobe): 8°
- Field Angle (Pars): 24°
- Field Angle (strobe): 18°
- Coverage Angle (laser): 93°
- Coverage Angle (derby): 114°
- Footswitch Operating Frequency: 433 MHz
- Illuminance (Pars): 1,205 lux @ 2 m (per head)
- Illuminance (strobe): 86 lux @ 2 m (per zone)
- Footswitch Max Unobstructed Distance: 100 ft (30.5 m)
- Power Linking: 16 units @ 120 V; 29 units @ 230 V
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 44 W, 1 A @ 120 V, 60 Hz
- Power and Current: 43 W, 1 A @ 230 V, 50 Hz
- Fits Tripod Sizes: 1.5 in (37.4 mm)
- Weight: 14.4 lb (6.6 kg)
- Size: 46.7 x 4.3 x 15.2 in (1,185 x 110 x 387 mm)
- Optional Controllers: IRC-6
- Classified per EN/IEC 60825-1:2007
- Complies with FDA performance standards for laser products except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007
- Approvals: CE, FDA, FCC
Chauvet DJ GigBar IRC Box Includes:
(1) GigBAR IRC
(1) Power Cord
(1) Wireless Footswitch with Battery
(1) VIP Gear Bag
(1) Tripod Stand
(1) Tripod Carry Bag
(1) Warranty Card
(1) User Manual
