Chauvet DJ Data Stream 4
$189.99
Reg.
You save
In Stock | Free Shipping
Key Highlights
- Universal, optical DMX splitter provides 4 outputs from a single input.
- Increase flexibility with 3- and 5-pin connections for each input/output.
- Increase operation with additional 3- and 5-pin output for linking other Data Stream 4 units.
- Electrical isolation between input and output.
Get Expert Help Before You Buy
Get fast answers on setup, compatibility, and system matching.
✔ No pressure. Just real help.
|

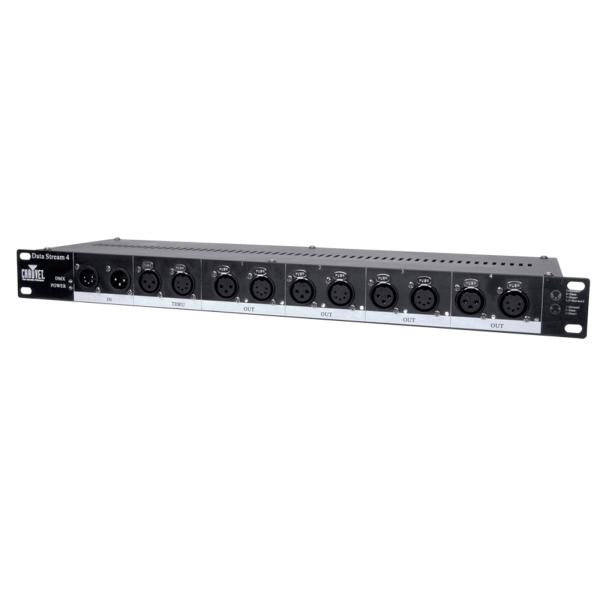

The Data Stream 4 is a universal DMX-512 optical splitter designed to distribute the incoming DMX signal, in daisy chain configurations, into four separate outputs with an additional "thru" port.
Data Stream 4 Features:- Universal, optical DMX splitter provides 4 outputs from a single input.
- Increase flexibility with 3- and 5-pin connections for each input/output.
- Increase operation with additional 3- and 5-pin output for linking other Data Stream 4 units.
- Electrical isolation between input and output.
- Conveniently mount with a shorter cable run using the single space (1U) mounting rack.
Chauvet Data Stream 4 Specifications
• DMX Connectors: 3- and 5-pin
• Rackmount: 1U
• Input Voltage: Auto-ranging 100 - 240VAC 50/60Hz
• Power and Current: 3W, 0.1A @ 120V 60Hz
• Power and Current: 5W, 0.1A @ 230V 50Hz
• Weight: 5.8lbs (2.6kg)
• Size: 19 x 5.3 x 1.8in (483 x 134 x 46mm)
• Approvals: CE
The Data Stream 4Box Includes:
(1) Data Stream 4
(1) Power Cord
(1) Warranty Card
(1) Quick Reference Card
