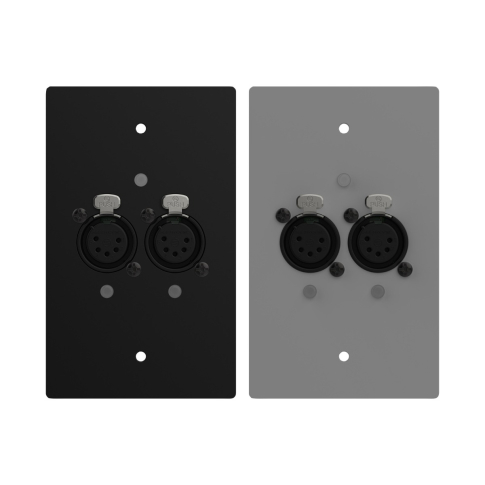

ChamSys GeNetix GW2O US Two-Port Wall Mount Node DMX Out Ports (Female)

GeNetix Wall Mount Node 2 is a two-port wall mount PoE powered node, available to fit into standard single gang EU/US & UK backboxes. Available with either male or female physical RDM Direct DMX ports, both versions support both DMX Input or Output. GeNetix Wall Mount Node 2 is ideal for any fixed installation, supporting Art-Net and sACN and configurable from ChamSys consoles, via its in-built web server or over Art-Net. GeNetix Nodes provide a solution for remote data distribution in a wide variety of applications. Supporting industry standard protocols like Art-Net, sACN, RDM along with advanced features including DMX Fallback, Merging and Scene Storage. GeNetix network nodes support industry standard lighting protocols; Art-Net V1,2,3 and 4, sACN - including priorities on a per universe basis and Remote Device Management (RDM). DMX timings are fully configurable, with refresh rate, break time, frame time and MAB.

DMX Fallback enables fixtures on a single universe to be connected in a loop to two ports on the GeNetix node for redundancy. If a single cable is broken anywhere in the DMX loop, all fixtures can still receive DMX. Individual ports can be set to Output, Input or Fallback. DMX Fallback is supported within a GeNetix node and also between multiple GeNetix nodes. GeNetix nodes support merging, configurable per port. The merge options are: None, HTP, LTP, Lowest IP address, Highest IP address. When set to HTP, for each of the channels on that universe the node uses the highest level received from all sources sending to that universe. When set to LTP, for each of the channels the node uses the data received from the latest source. The node only changes to data from the other source when the data from that source has changed in value, or when the first source has been timed out. LTP merging is only supported for a maximum of two sources. When set to Highest IP address or Lowest IP address the node merges each universe based on the data from the source with the highest or lowest IP address respectively. For example, a house system can be set as a very low IP address and then merging set to "highest IP" to enable incoming consoles to have priority over the house system. GeNetix nodes support storage of 10 Scenes that can be recorded from the incoming Art-Net or sACN data. Scenes contain DMX data for one or more ports on the node. Scenes can be replayed from either the node front panel, from the MagicQ / QuickQ Console, via the webserver or via 10Scene wall plates on the GN5 & GN10 Nodes.

ChamSys GeNetix GW2O US Node DMX Out Ports (Female) Features:

• 2 RDM DMX Ports supporting Input and Output.
• Available with either Male or Female DMX Ports.
• Supports Art-Net & sACN.
• Webserver for remote configuration.
• PoE Powered.
• Supplied with interchangeable Black or White faceplates.
• Available to fit US,UK,EU Standard Single Gang Back Box fit.
• Does not unlock 'demo mode' on MagicQ PC Systems.
