ChamSys CHAMMQCOMPWING MagicQ Compact Wing Expansion Wing for MagicQ Compact Consoles
Expected June 30, 2025
Only at IDJ NOW
Fast Shipping
Most products ship same-day
30-Day Price Protection
Find a lower price, you're covered.
8000+ Reviews
95%+5-star reviews>
30-Day Returns
Don't Like it? Return most items.

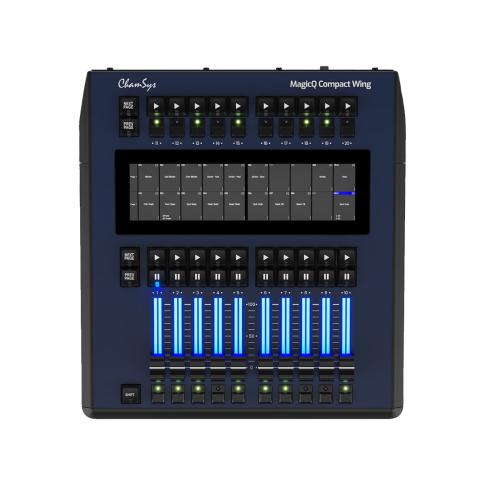

The new MagicQ Compact Wing enables MagicQ users to elegantly and efficiently expand their number of available physical playbacks. Styled to pair with MagicQ Compact consoles, this versatile expansion wing is compatible with all current MagicQ Console and PC Systems. In the fader section, each playback features Flash, Go and Pause buttons. The executor playback section includes Select and Flash buttons for each playback. Both playback sections can independently page through multiple playback pages.
In addition to the USB connections found on the rear panel are a dimmable working light socket and a Neutrik Powercon connector that locks securely into the wing's built-in power supply. With illuminated fader tracks, dual playback sections, and a balanced, portable form factor, MagicQ Compact Wing adds tactile playback control to any MagicQ system while perfectly matching the visual appeal of our MagicQ Compact series. Ideal for use in touring and events, as well as installation into theatres, schools, clubs, broadcast studios or any venue looking for modular expansion of existing MagicQ systems. In addition to its rich feature set of core lighting control, MagicQ MQ500M Software has inbuilt plot and visualisation, audio timeline editor, and a multi emitter color picker.
ChamSys CHAMMQCOMPWING MagicQ Expansion Wing Features:
- 20 Playbacks with 10 Fader and 10 Executor playbacks.
- Large full-color high-resolution display for fully electronic playback legending.
- Scalable system expansion via integrated USB hub for connecting multiple wings.
- Connect to MagicQ Compact and full Size Consoles.
- Connect to MagicQ PC or MacOS Systems.
- Upto 2 Compact Wings per System.
- Separate Page/Up Down buttons.
- USB Connection.
- Dimmable Dual color Working Light.
ChamSys CHAMMQCOMPWING Product Specifications:
Hardware Specifications:
Fader Playbacks: 10
Executor Playbacks: 10
Total Number of Playbacks: 20
Touch-Screen Display: Yes
Electronic Playback Legends: Yes
USB Ports: 3 (1 USB-C In, 2 USB A Out)
Kensington Security Lock Fixing: Yes
Working Light Port: Yes
Power Input: PowerCon True1 100-240 VAC
Software Specifications (When used with PC Systems):
Universes: 64
Max Number of DMX Channels: 32768
Max Number of Fixtures Supported: 32768
Max Number of Cues: 5000
Max Number of Cue Stacks: 2000
Max Number of Groups: 5000
Max Number of Palettes: 4096
Number of Media Server Layers Supported: 50 (Each different content)
Boxed Weights and Dimensions:
Length: 450mm (17.71 Inches)
Width: 425mm (16.73 Inches)
Height: 210mm (8.27 Inches)
Weight: 5.5kg (12.13 Lbs)
Wing Weights and Dimensions:
Length: 314mm (12.36 Inches)
Width: 350mm (13.78 Inches)
Height: 60mm (2.36 Inches)
Weight: 4.0kg (8.82 Lbs)
Flight Cased Weights and Dimensions:
Length: 486mm (19.13 Inches)
Width: 404mm (15.9 Inches)
Height: 214mm (8.43 Inches)
Weight: 8.0kg (17.64 Lbs)
Each CHAMMQCOMPWING Retail Box Includes:
(1) ChamSys CHAMMQCOMPWING MagicQ Compact Wing Expansion Wing for MagicQ Compact Consoles
(1) USB A-C Cable
(1) Dual color Working Light
(1) Dust Cover
(1) PowerCon True1 Mains Cable
