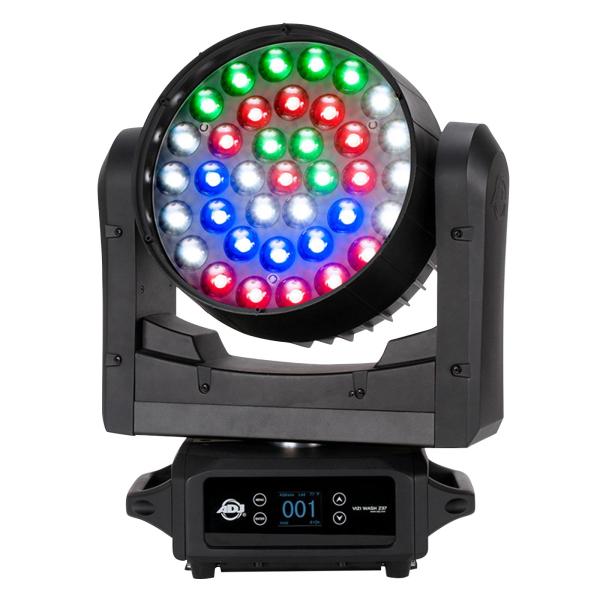

ADJ Vizi Wash Z37 Professional 20W Quad LED Moving Head Wash Fixture with Zoom
$2,814.99
Reg.
You save
Backordered
Expected June 30, 2026
Get Expert Help Before You Buy
Get fast answers on setup, compatibility, and system matching.
✔ No pressure. Just real help.
Your request was saved successfully.
|
Building on the success of the Vizi Wash Z19, ADJ unveils its bigger brother, the Vizi Wash Z37. This professional moving head wash fixture harnesses the power of 37 x 20W 4-in-1 RGBW Osram LEDs arranged in 9 individually-controllable zones. This, combined with an impressive 10 ~ 60-degrees zoom range, allows the flexible fixture to be utilized in a wide variety of ways. It can generate mid-air beams as well as 'eye-candy' effects and can be used to illuminate large areas of a stage or to highlight individual performers. Featuring Seetronic locking power in/out connections as well as both 3-pin and 5-pin DMX connections and RDM (Remote Device Management) compatibility, the Vizi Wash Z37 is a professional caliber moving head luminaire.
The Vizi Wash Z37 is a 670W professional moving head wash fixture with variable motorized zoom and thirty-seven 20W Quad (RGBW / 4-IN-1) LEDs. It features 9 zones of LED ring control, smooth dimming control from 0-100%, locking powerCON In/Out to daisy chain power, both 3 and 5-pin XLR for DMX In/Out and a built-in USB port for a convenient connection to update software if needed. This fixture is ideal for washing larger stages, theaters, churches, nightclubs, concert venues and event productions.
ADJ Vizi Wash Z37 Specifications:
Light Source:
37x 20W RGBW (4-IN-1 - Red, Green Blue & White) Osram LEDs
20,000 Hour Average LED Life
LUX @ 5M: 15000 lux @ 10-degrees; 1100 lux @ 60-degrees
Effects:
9-zone Ring Control with Color Macros
Variable Strobe & Pulse effects
Connections:
Seetronic locking power In/Out to daisy chain power
3-pin and 5-pin DMX connections for data linking
RDM (Remote Device Management)
USB Input for Updating Fixture Firmware
Control:
Motorized Linear Zoom: 10 ~ 60-degrees
4-button Touch Control Panel with Large LED Screen
Control: DMX-512 & RDM
Multiple DMX Channel Modes (14, 16, 17 & 61 channels)
Dim Modes: 6 Presets (Standard, Stage, TV, Architectural, Theatre & Stage 2)
Dim Speed control (0.1~10 Seconds)
Dimming: 0 - 100%
Strobe & pulse control
Various Strobe speeds (1-40Hz)
Adjustable LED Refresh Rates (900~25k Hz)
Adjustable Gamma Settings (1.0-2.8)
Color display with touch button on two sides
With Wired Digital Communication Network
Electrical:
Input Voltage: 100-240V 50Hz/60Hz (Auto Sensing)
Power Draw: 725W, 6.03A @ 120V or 700W 3A @ 230V
Dimensions/Weight:
Dimensions (LxWxH): 16" x 8.8" x 20.3" / 408x226x518mm
Weight: 41 lbs. / 18.6 kg.
Each VIZ370 Retail Box Includes:
(1) ADJ Vizi Wash Z37 Professional 20W Quad LED Moving Head Wash Fixture with Zoom
(1) Locking power cord
(2) Omega brackets for truss mounting
