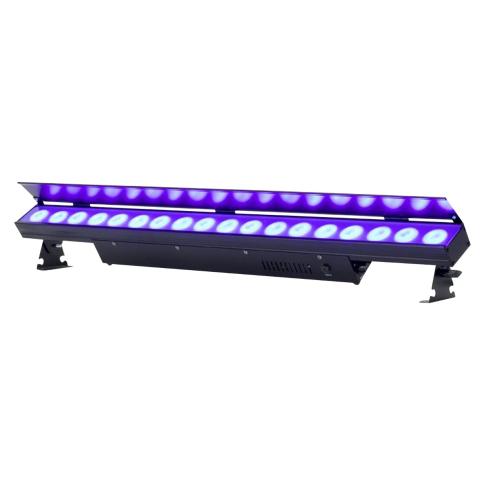

American DJ ULTRA-LB18 Professional Linear RGBAL LED Wash Lighting Fixture
SKU
ULTRA-LB18
In Stock - Ships in 3-5 Days
Most orders placed by 2pm ET ship in only 3-5 days (business days only).
Free Shipping on most orders with minimum purchase of $50 or more for a limited time.
Ground shipments only in the lower 48 contiguous United States.
Excludes oversized or overweight items such as oversized speakers, oversized cases, trussing and staging. Other exclusions include some fluids, some parts and special orders.
Any questions, please call 1-800-355-7746 during normal business hours.
Offer subject to change or termination without notice. Not responsible for typographical errors.
The lowest price is not always the best price. When you shop with us, you can always expect to get our BestPrice+Plus guaranteed.
I DJ NOW - Babylon, NY store (Pick Up In Store Only)
Mon - Sat 10am - 8pm
Sun 11am - 5:00pm
631 321 1700
I DJ NOW - Queens, NY Store (Pick Up In Store Only)
Mon - Fri 10am - 9pm
Sat 10am - 7pm
Sun 12 noon - 6pm
718 762 0100
Delivering vibrant and punchy color mixing output, ADJ's Ultra LB18 is a professional linear LED wash lighting fixture. Featuring 18 x 10-Watt 5-in-1 color mixing long life LEDs (red, green, blue, amber & lime) it offers a large gamut of color possibilities, including white light with a color temperature variable between 2,300K and 9,900K. The inclusion of a lime LED chip not only increases the palette of colors available from the fixture but also boasts the CRI of its white light output to in excess of 90.
With a beam angle of 17 x 40-degrees, the fixture is ideal for illuminating stages, dancefloors, décor and sections of wall. It is designed for permanent installation in bars, clubs, lounges, theatres, concert venues and churches, as well as temporary event production at indoor locations. The fixture is supplied with brackets that can be used to set it directly on the ground or attach to a clamp for truss mounting. Its ends are also magnetic, which allows adjacent fixtures to be quickly and easily aligned to create longer continuous bars of LEDs to uniformly wash larger areas. A compact and lightweight fixture, it is supplied with a glare shield that blocks the LEDs from view and also protects them during transport.
The Ultra LB18 offers six operational modes: Auto Run, Program Mode, Sound Trigger (utilizing an in-built microphone), RGBAL Manual, Static Color and DMX. It offers a variety of DMX modes, using between 5 and 71 control channels, and is also compatible with ADJ's UC IR wireless remote. A digital display with 4-button menu interface on the rear panel allows easy mode selection and DMX addressing, while a USB port allows quick and easy future firmware updates.
American DJ ULTRA-LB18 Linear LED Wash Features:
- Linear Color Temperature Control (2,300K to 9,900K.)
- Smooth RGBAL color mixing.
- Horizontal Magnetic Alignment feature (Built-In.)
- Compatible with the ADJ UC IR remote. Operates at a distance of up to 32.8 feet (10 meters.)
- Glare shield that blocks the LEDs from glare/view and protects LEDs during transport.
- USB Service Port.
American DJ ULTRA-LB18 Product Specifications:
Light Source:
18 x 10W Ultra bright (Red, Green, Blue, Amber & Lime) LEDs
Long Life LEDs (Rated at approximately 50,000 hrs.)
17x40 degree beam angle
>90 CRI
Control:
Linear Color Temperature Control (2,300K to 9,900K)
Digital Display with 4-button menu
11 DMX Channel Modes: 5, 8, 10, 13, 16, 30, 33, 38, 41, 60 & 71 Channels
6 Groups x3 RGBAL LED pixels controllable via DMX in 30, 33, 38, 41, 60 & 71 channel modes
6 operational modes: Auto Run, Program Mode, Sound Trigger, RGBAL Manual, Static Color and DMX-512 Mode
Flicker Free operation (No flickering on camera)
Refresh Rate: 2.88KHz
64 built-in Color Macros, including 15 white color temperature presets
6 selectable Dim Modes (Standard, Stage, TV, Architectural, Theatre & Stage 2)
4 selectable Dim Curves (Square, Linear, Inv. Square & S. Curve)
Built-In Microphone for sound trigger mode
LED pulse and strobe effect
Electronic Dimming: 0-100
Connections:
Linkable: DMX via 5-pin XLR cable
Locking power In/Out to daisy chain power
Electrical:
Multi-voltage operation: AC 100V-240V 50/60Hz
Power Draw: 130W
Daisy-chain power link (Up to 12 Ultra Bar 18's can be linked @120V and up to 25 Ultra Bar 18's can be linked @240V)
Dimensions & Weight:
Dimensions (LxWxH): 3.39" x 39.3" x 7.42" (86x996x188.4mm)
Weight: 12.13 lbs./ 5.5kg.
Each ULTRA-LB18 Retail Box Includes:
(1) American DJ ULTRA-LB18 Professional Linear RGBAL LED Wash Lighting Fixture
(1) Locking Power Cord
(1) Removable Glare Shied
(1) Set of mounting brackets to set on the ground or to mount a clamp to for truss mounting
