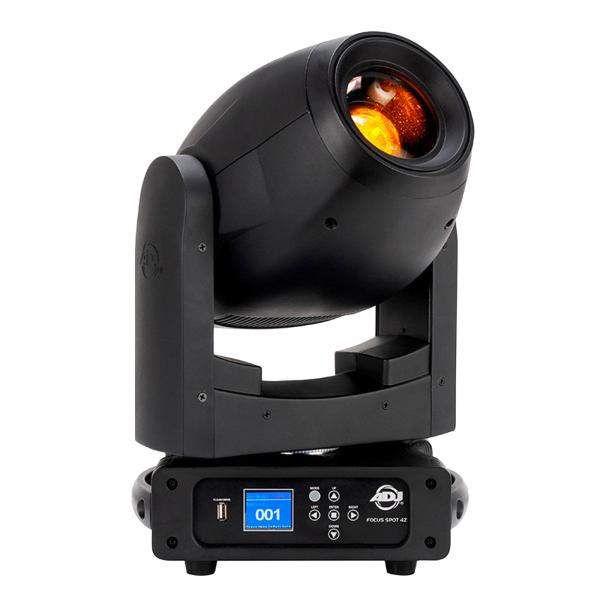

ADJ Focus Spot 4Z 200W LED Moving Head Spot with motorized focus & motorized zoom

SKU: FOCUSSPOT4Z
$1,649.99
In Stock | Free Shipping

Same Day
Shipping
Best Deal
Guarantee
Authorized
Dealer
Real Gear
Experts
Key Highlights
  • 200W Cool White LED Engine (50,000 hr.)
  • 8 Colors + white.
  • 6 Rotating, Replaceable GOBOs + Open.
  • Zoom Range: 11 ~ 22-degrees.
Get Expert Help Before You Buy

Get fast answers on setup, compatibility, and system matching.

✔ No pressure. Just real help.

|
The new Focus Spot 4Z sits at the top of range of the popular Focus Series moving heads from ADJ Lighting. The Focus Spot 4Z is powered by a brilliant 200W cool white LED engine and is equipped with motorized focus and zoom (11 ~ 22-degree zoom). Its designed for temporary live events and fixed installations in nightclub, stages or churches. It is professionally fit with one GOBO wheel with 6 rotating/replaceable GOBOS, 8 vibrant colors plus white, and 2 prism wheels (one 5-facet linear and one 6-facet circular).

The Focus Spot 4Z has locking powerCON In and out connectors to daisy chain the power, as well as 5-pin DMX In/Out to transmit a DMX signal from one fixture to the next. There is a USB firmware update port built-in plus advanced control options such as: 16-bit fin pan and tilt, multiple DMX control modes, and 6 different dimming options. The Focus Spot 4Z offers a robust light output in a light weight, compact foot print (18-inch high and one 23 pounds).

ADJ Focus Spot 4Z Moving Head Spot Features:

  • 200W Cool White LED Engine (50,000 hr.)
  • 8 Colors + white.
  • 6 Rotating, Replaceable GOBOs + Open.
  • Zoom Range: 11 ~ 22-degrees.
  • Focus: Motorized.
  • 2 Prism FX: Rotating 5-facet Linear & rotating 6-facet Circular.
  • powerCON In/Out to daisy chain power.
  • 5-pin DMX In/Out.
  • USB firmware update port.
  • Multiple DMX Control Channels Mode.
  • Fine Pan & Tilt: 16-Bit.
  • Dimming & Fine Dimming (16-Bit) : 0-100% Electronic.
  • 6 Dimming Modes: Standard.
  • Input Voltage: 100-240V 50Hz/60Hz (Auto Sensing.)
  • Dimensions (LxWxH): 18" x 10.97" x 7.15" / 457 x 279 x 182mm.
  • Weight: 23 lbs. / 10 kg.

ADJ Focus Spot 4Z Specifications:
Light Source:
200W Cool White LED Engine (50,000 hr.)

Features:
Motorized Focus
Motorized Zoom: 11 ~ 22-degrees plus 16-bit Fine Zoom
2 Prism FX: Rotating 5-facet Linear & rotating 6-facet Circular
0-100% smooth dimming
Various strobe speeds
USB firmware update port
2 cooling fans

Color Wheel:
8 dichroic colors + white

GOBO Wheel:
6 aluminum GOBOs + open
All GOBOs removable & rotatable
GOBO Shake Effect
GOBO size: 23mm (outer); 19mm (viewable); 0.5mm (thickness)

Prism Wheel:
Prism Wheel 1: Rotatable 5-facet Linear
Prism Wheel 2: Rotatable 6-facet Circular
Prism Indexing

Control:
3 DMX Channel Modes: 16/18/22 Channels
Color LCD display with 6-button function menu
Data In/Out: 5-pin DMX
Power In/Out: Locking powerCON (Daisy chain 4 units @ 120V; 10 units @ 240V)
Control Mode: DMX512 or internal programs
6 Dimming Curve Modes: Standard, Stage, TV, Architectural, Theatre, Stage 2
0-100% smooth dimming
Various strobe speeds
USB firmware update port
With Wired Digital Communication Network

Pan/Tilt:
Pan: 540-degrees
16-bit Fine Pan: 630-degrees
Tilt
16-bit Fine Tilt

Electrical:
Power voltage: AC100-240V, 50/60Hz (Multi-voltage)
Power consumption: 240W max

Dimensions & Weight:
Dimension: 18" x 10.97" x 7.15" / 457 x 279 x 182mm
Weight: 23 lbs. / 10 kg.

Each Focus Spot 4Z Retail Box Includes:
(1) ADJ Focus Spot 4Z 200W LED Moving Head Spot Fixture
(1) 6 foot PowerCON power cable
(1) Safety Cable
(1) Omega Bracket
