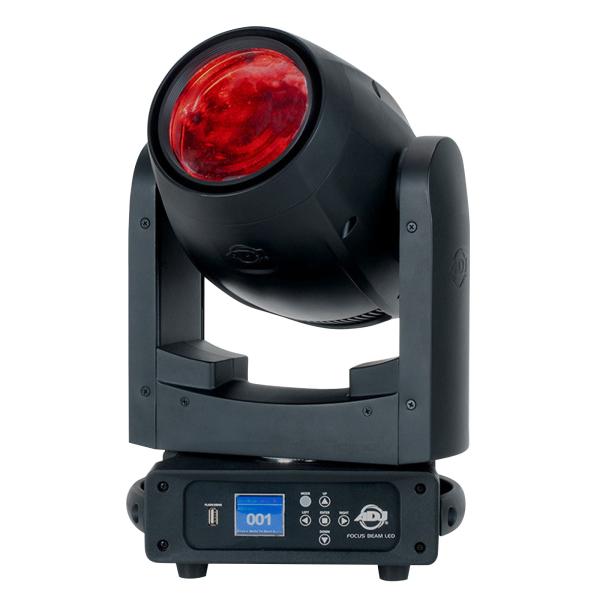

American DJ Focus Beam LED 80W LED Moving Head with 2 Prisms & Motorized Focus

SKU
FOCUSBEAMLED

$1,499.99
In Stock - Ships in 3-5 Days

Most orders placed by 2pm ET ship in only 3-5 days (business days only).

Free Shipping
Best Price + Plus
Check In-Store Availability

Free Shipping on most orders with minimum purchase of $50 or more for a limited time.

Ground shipments only in the lower 48 contiguous United States.

Excludes oversized or overweight items such as oversized speakers, oversized cases, trussing and staging. Other exclusions include some fluids, some parts and special orders.

Any questions, please call 1-800-355-7746 during normal business hours.

Offer subject to change or termination without notice. Not responsible for typographical errors.

The lowest price is not always the best price. When you shop with us, you can always expect to get our BestPrice+Plus guaranteed.

Learn More

1 800 355 7746



I DJ NOW - Babylon, NY store (Pick Up In Store Only)
Mon - Sat 10am - 8pm
Sun 11am - 5:00pm
631 321 1700



I DJ NOW - Queens, NY Store (Pick Up In Store Only)
Mon - Fri 10am - 9pm
Sat 10am - 7pm
Sun 12 noon - 6pm
718 762 0100

Expanding ADJ's Focus Series of compact, yet powerful, professional moving head luminaires, the new Focus Beam LED is the first dedicated beam fixture to be introduced to the range. Featuring an 80W cool white LED engine, the unit has a narrow 5-degree beam angle, making it ideal for creating mid-air beam effects in nightclubs and on concert stages. It offers an extensive feature set - including motorized focus, 15 GOBOs + open, 13 colors + open, 0-100% linear frost filter, USB firmware update port and two indexed rotating prisms (6-facet linear and 8-facet circular), making it a versatile tool for creative lighting designers.

American DJ Focus Beam LED Features:

  • Control Protocol: DMX & RDM.
  • DMX Modes: 2 (16 & 18.)
  • Dim Modes: 6 Presets (Standard, Stage, TV, Architectural, Theatre & Stage 2.)
  • Dim Speed control (0.1~10 Seconds.)
  • Dimming: 0 - 100%.
  • Strobe & pulse control.
  • Motorized Focus.
  • Linear Frost 0-100% (Wash effect.)
  • 2 Prisms: 6 & 8 Facet, Indexable and Rotatable.
  • USB firmware update port.
  • Adjustable LED Refresh Rates (900~25k Hz.)
  • Adjustable Gamma Settings (1.0-2.8.)
  • With Wired Digital Communication Network.
  • Display: Touch display with 5-button touch menu.
The Focus Beam LED, a complimentary fixture to the other Focus Series moving heads, uses a powerful 80W LED engine to produce a powerful, 7400K, 5-degree beam from an advanced optical system. This fixture features motorized focus, two prism effects (rotatable 8-facet Circular and rotatable 6-facet Linear), and it has a built-in in frost filter for wash effects.

There are a variety of control options on the Focus Beam LED such as: DMX & RDM protocol, a variety of diming modes, fine pan and fine tilt options, and adjustable gamma and LED refresh rate settings. There is an on-board function display with 5 touch buttons making it easy to dial in custom settings.

The Focus Beam LED offers 13 dichroic colors plus white, and has 15 fixed GOBOs plus open and a GOBO shake effect.

There is a convenient USB port on the rear panel used to update firmware. The fixture has locking Seetronic In/Out connections to daisy chain power, and 3-pin DMX In/Out to link data. The fixture is compact and lightweight suitable for fixed installations or temporary, mobile event applications.

American DJ Focus Beam LED Moving Head Product Specifications:

Light Source:
80W Cool White LED Engine
5° Beam Angle
Color Temperature: 7400K
50,000 Hour Average LED Life

Color Wheel:
13 dichroic colors + white

GOBO Wheel:
Metal wheel with 15 fixed GOBOs + Open
GOBO shake effect

Prism Wheel:
Prism Wheel 1: Rotatable 8-facet Circular
Prism Wheel 2: Rotatable 6-facet Linear
Prism Indexing with overlay feature

Control:
Control Modes: DMX512, RDM & Stand Alone Internal Programs
2 DMX Channel Modes: 16 & 18 channels
16-Bit Pan, Tilt & Dimmer control

Connections:
DMX Connections: 3-pin Locking XLR In & Out
Power Connections: Seetronic Locking Power In & Out

Pan/Tilt:
Pan & Pan Fine: 630 degrees
Tilt & Tilt Fine: 270 degrees

Electrical:
Multi-voltage operation: AC 100-240V, 50-60Hz (Auto Sensing)
Maximum Power Consumption: 136W @ 120V
Daisy chain: 15 units @ 120V; 30 units @ 230V

Dimensions & Weight:
Length: 17.59" (447mm)
Width: 10.96" (279mm)
Height: 7.54" (192mm)
Weight: 23 lbs. (10.2 kg)

Each FOC369 Retail Box Includes:

(1) American DJ Focus Beam LED
(2) Omega Brackets
(1) Seetronic Power Locking Power Cable
