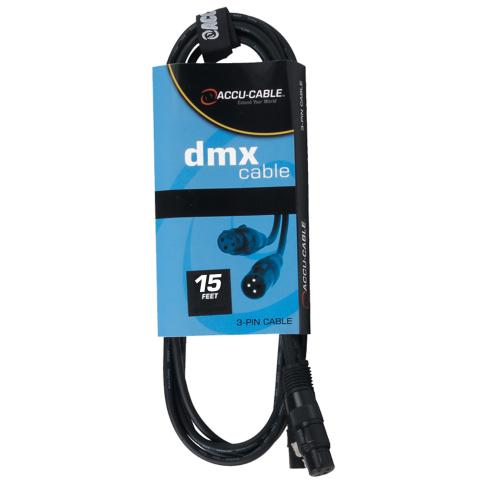

ADJ 15FT 3-Pin DMX Cable [AC3PDMX15]

ADJ / Accu-Cable 3 Pin DMX Cable Specifications

Physical Characteristics:
Conductor:
• Number of Pairs: 1
• Total Number of Conductors: 2
• AWG: 22
• Stranding: 0.15 x 19
• Conductor Diameter: .0354"
• Conduct or Material: TC-Tinned Copper

Insulation:
• Insulation Material PE Polyethylene

Lay Length:
• Lay Length: 2.5"
• Direction: Left Hand Lay
• Twists: 4.8 per foot

Inner Jacket:
• Inner Jacket Material: PE- Polyethylene
• Inner Jacket Diameter: .055"
• Pair Color Code: Black/White

Outer Shield:
• Outer Shield Trade Name: Duofoil
• Outer Shield Type: Tape/Braid

Outer Shield Material:
• Layer Number:1, Material Trade Name: Dufoil, Type: Tape, Material: Aluminum Foil-Polyester, Coverage %: 100
• Layer Number: 2, Material Trade Name: Dufoil, Type: Braid, Material: TC-Tinned Copper, Coverage %: 85

Outer Jacket:
• Outer Jacket Material: PVC-Polyvinyl Chloride

Overall Nominal Diameter:
• Overall Nominal Diameter: .229"

The AC3PDMX15Box Includes:

(1) ADJ 15FT 3-Pin DMX Cable [AC3PDMX15]
