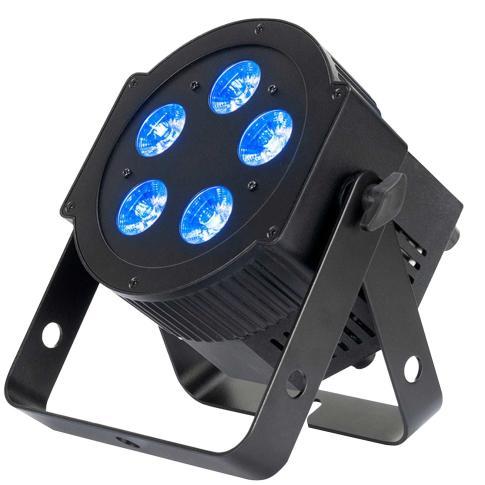

ADJ 5PX Hex 6-in-1 LED Par Light

The ADJ 5PX Hex is a versatile LED Par fixture with 5 x 12-Watt, 6-IN-1 HEX LEDs. Now with powerCON In/Out, plus 3-pin and 5-pin DMX In/Out. The 5PX HEX is compatible with the Dotz Par RF, easy-to-use, wireless RF remote (sold separately).

ADJ 5PX Hex 6-in-1 LED Par Light Features:

• Intelligently designed, patent pending power & DMX Ins/Outs sit sideways so the unit can be set flat on the ground or set inside truss.
• Great as an architectural wall wash or for performance stages where traditional stage lighting emit a lot of heat onto performers.
• Scissor yoke + rubber feet allows fixture to be hung or set on the ground.
• Flicker Free operation (No flickering on camera.)
• Smooth RGBAW + UV color mixing.
• All metal black exterior housing.
• Multi-Colors.
• Five Operating Modes.
• Electronic Dimming 0-100%.
• 5 Dimmer Curves.
• DMX-512 protocol.
• 3-Pin & 5-Pin DMX Connection.
• Four DMX Modes: 6 Channel Mode, 7 Channel Mode, 8 Channel Mode, and 12 Channel Mode.
• Dotz Par RF Compatiable (Not Included.)
• Multiple Unit Power Linking.

The ADJ 5PX HEX is a versatile LED Par fixture with 5 x 12-Watt, 6-IN-1 HEX LEDs made from all metal construction. With a 30-degree beam angle, users may produce wide washes with smooth color mixing from 63 built-in color macros utilizing red, green, blue, amber, white and UV LEDs. Not only is this LED Par great for lighting stages, but with its patent pending, intelligently designed, power and DMX connectors, it's great for uplighting a venue or used as a stage wash.

5PX HEX professional features include: 4 DMX modes (6, 7, 8, & 12 channel), 5 operational modes, 5 dimming curves, flicker free operation and a 4-Button DMX menu with digital display. Daisy-chain up to 8 units together via the fixtures built-in powerCON In/Out power connectors. Users may choice 3-pin or 5-pin DMX connectors.

The 5PX HEX is compatible with the Dotz Par RF, easy-to-use, wireless RF remote. Alternatively, the fixture may be operated via a DMX controller or the unit's built-in programs.

The new "PX HEX" Series units feature professional-caliber powerCON input and output connections in place of the IEC sockets found on the original HEX Series models. This allows for a reliable power connection that locks securely into place and won't pull out accidentally. It also allows for easy integration into professional stage rigs that are setup with powerCON power distribution.

In addition, all of the "PX HEX" Series fixtures are fitted with both 3-pin AND 5-pin XLR input and output sockets for DMX control and master/slave operation. This adds to the units' flexibility, meaning that they can be easily integrated into either a 3-pin or 5-pin DMX setup and are therefore ideal for use by production and rental companies.

The "PX HEX" Series offers fixtures suited to a range of different uses, all equipped with versatile HEX LEDs. Combining red, green, blue, amber, white and UV elements, they allow for a vast palette of mixed colors to be generated. These include both cool and warm white, as well as UV-infused colors such as hot pink, lime green and electric blue. The inclusion of the UV element also means that the fixture can create the classic 'black light' effect that causes white and neon-colored surfaces to glow brightly.

The 5PX HEX features five 12W HEX LEDs housed in a compact unit that is ideal for truss warming, up-lighting and stage washing. Despite its small dimensions of 4.5" x 8.25" x 8.75"/ 114 x 208 x 222mm (LxWxH) and low weight of 5.8 lbs. / 2.6 kgs., it has a robust metal construction making it ideal for temporary event production as well as fixed installation.

With all of the benefits that LED-powered fixtures offer over conventional pars, the "PX HEX" units are ideal for a wide variety of uses. Their LEDs have an operational life of approximately 50,000 hours, meaning that lamp replacement is a thing of the past and they are therefore perfectly suited for installation in hard to reach locations. Despite their powerful light output, the units also generate very little excess heat. This means they are ideal for illuminating stages while keeping the temperature comfortable for performers.

The models are supplied with flexible scissor yokes, which can be used either as variable-angle floor stands or hanging brackets, as required. The units also benefit from ADJ's intelligently-designed and patent-pending 'sit-flat' design, which means that they can be placed directly on the floor for up-lighting duties, with power and data connections located conveniently on the side of the casing.

With a 30-degree beam angle, all of the PX HEX pars are ideally suited for both up-lighting and stage illumination, generating a soft-edged pool of light. Adding further flexibility, the 12PX HEX and 12PX HEX PEARL are both supplied with a removable gel frame that can be used to hold diffusion filters (sold separately) if a wider beam angle is required.

Each of the models is fitted with a 4-segment LED menu display and four corresponding push buttons, which allow easy access to five different operating modes: Static Color (63 built-in color macros), RGBAW+UV Dimmer, Program (7 built-in programs), Sound Active and DMX-controlled (6, 7, 8 or 12 channel). The fixtures can also be controlled remotely using ADJ's DOTZ PAR RF wireless control (sold separately).

Offering the incredible color mixing potential of HEX LEDs combined with a wide variety of useful features and robust, intelligently-designed cases, the PX HEX Series pars are ideal for any situation where powerful washes of color are required. Offering professional features, including powerCON and 3-pin & 5-pin XLR sockets, these new and improved models are sure to prove even more popular than the original P HEX Series.
